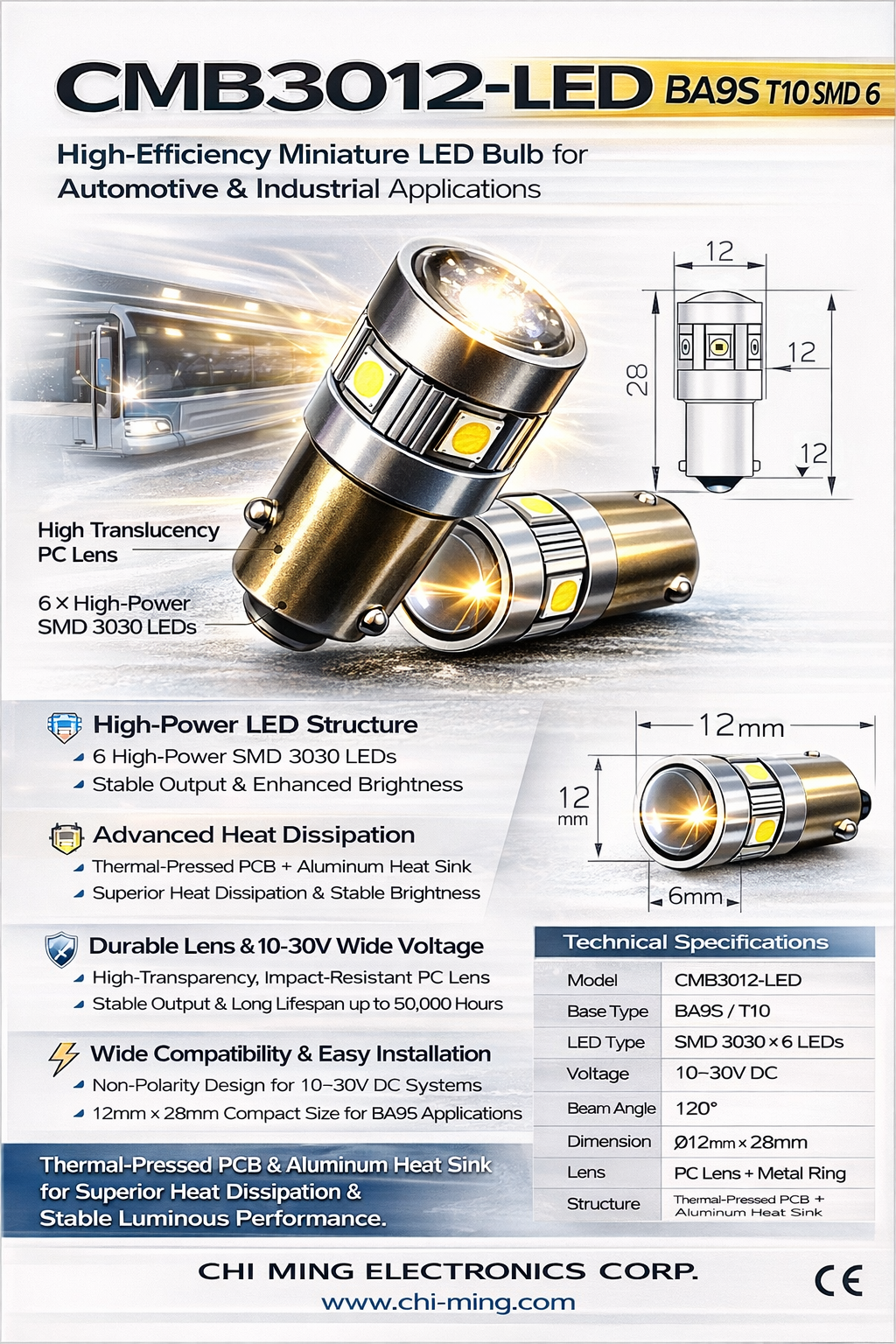

🔷 CMB3012-LED BA9S T10 SMD 6

High-Efficiency Miniature LED Bulb for Automotive & Industrial Applications

🔧 Product Overview

The CMB3012-LED BA9S T10 SMD 6 is a high-performance miniature LED bulb designed for both automotive and industrial lighting applications.

Built with 6 high-power SMD LEDs, this model delivers enhanced brightness, stable output, and excellent durability, making it ideal for demanding environments.

⚙️ Key Features

🔹 High-Power LED Structure

• Equipped with 6 high-efficiency SMD LEDs
• Provides strong luminous output with stable performance
• Optimized for long-term reliability

🔹 Advanced Heat Dissipation Design

• Flexible PCB thermally pressed onto metal base
• Tightly bonded to aluminum heat sink structure
• Enables:
  • Fast heat transfer
  • Improved luminous efficiency
  • Stable continuous operation

🔹 Durable Lens & Anti-Vibration Structure

• Top-mounted high-transparency PC lens
• Secured with metal retaining ring
• Features:
  • Strong vibration resistance
  • Long-term optical clarity
  • Suitable for harsh environments

🔹 Wide Voltage Design

• Operating voltage: 10–30V DC
• Compatible with:
  • 12V passenger vehicles
  • 24V trucks & buses
• Ensures stable output under voltage fluctuation

🔹 Energy Efficiency & Long Lifespan

• Low power consumption with high brightness output
• Long service life: up to 50,000 hours
• Reduced maintenance and replacement cost

🔹 Compact & Easy Installation

• Size: L28mm × W10mm
• Standard BA9S base for easy replacement
• Plug-and-play installation

🚗 Applications

• Dashboard & Instrument Lighting
• Indicator & Warning Lights
• License Plate Lights
• Interior / Reading Lights
• Industrial Control Panels
• Elevator / Machine Indicators
• Truck & Bus Lighting Systems

📊 Technical Specifications
