CMW921 – Wedge T15 LED 8

1. High Brightness & Proven Reliability

Equipped with high-efficiency LEDs delivering up to 60 lumens.
This model is one of our best-selling products, widely recognized and trusted by customers for stable long-term performance.

2. Advanced LED Arrangement Design

• Unique radial LED layout
• Side-emitting structure with flat-top LED design
• True 360° wide beam illumination

The flat-top LED structure enhances light dispersion, increasing the effective beam angle and ensuring uniform brightness from all directions.

This arrangement also improves thermal dissipation, allowing stable luminous output and minimizing lumen degradation over extended operation.

3. Energy Efficiency & Long Lifespan

Low power consumption of approx. 0.75W–0.9W
Up to 50,000 hours lifespan

Optimized heat management ensures consistent luminous flux even during long continuous operation.

4. Voltage Range

Available in 12V DC and 24V DC versions.
Suitable for passenger vehicles, trucks, motorcycles, and commercial fleets.

5. Applications

Ideal for:
• Interior lighting
• License plate lights
• Side marker lights
• Dashboard indicator lights
• Trunk lighting

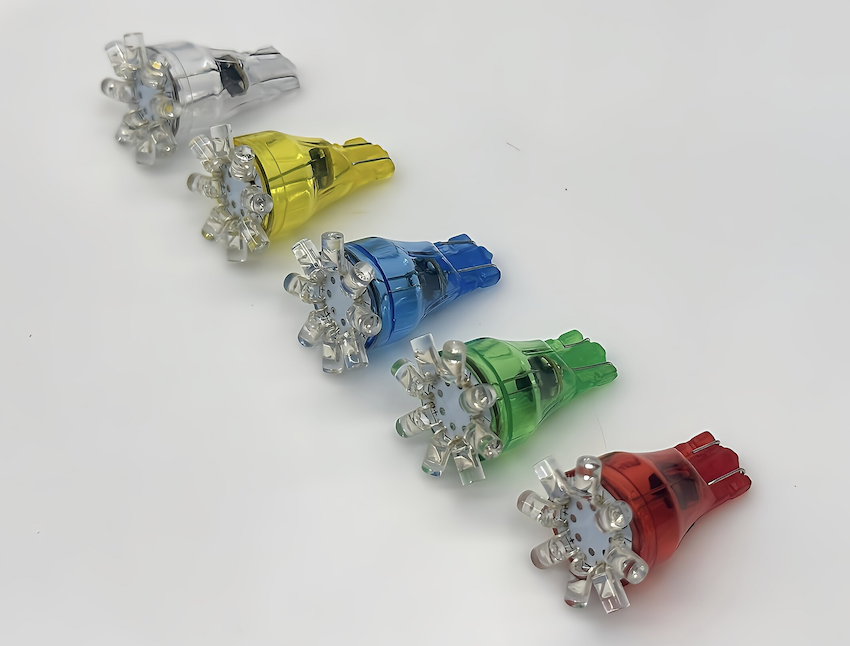

6. Color Options

Default: 6000K Cool White
Optional colors: Red, Yellow, Blue, Green (customizable upon request)

7. Compact & Durable Design

Compact T15 wedge base design for high compatibility.
Engineered for vibration resistance and stable performance under varying temperature conditions.

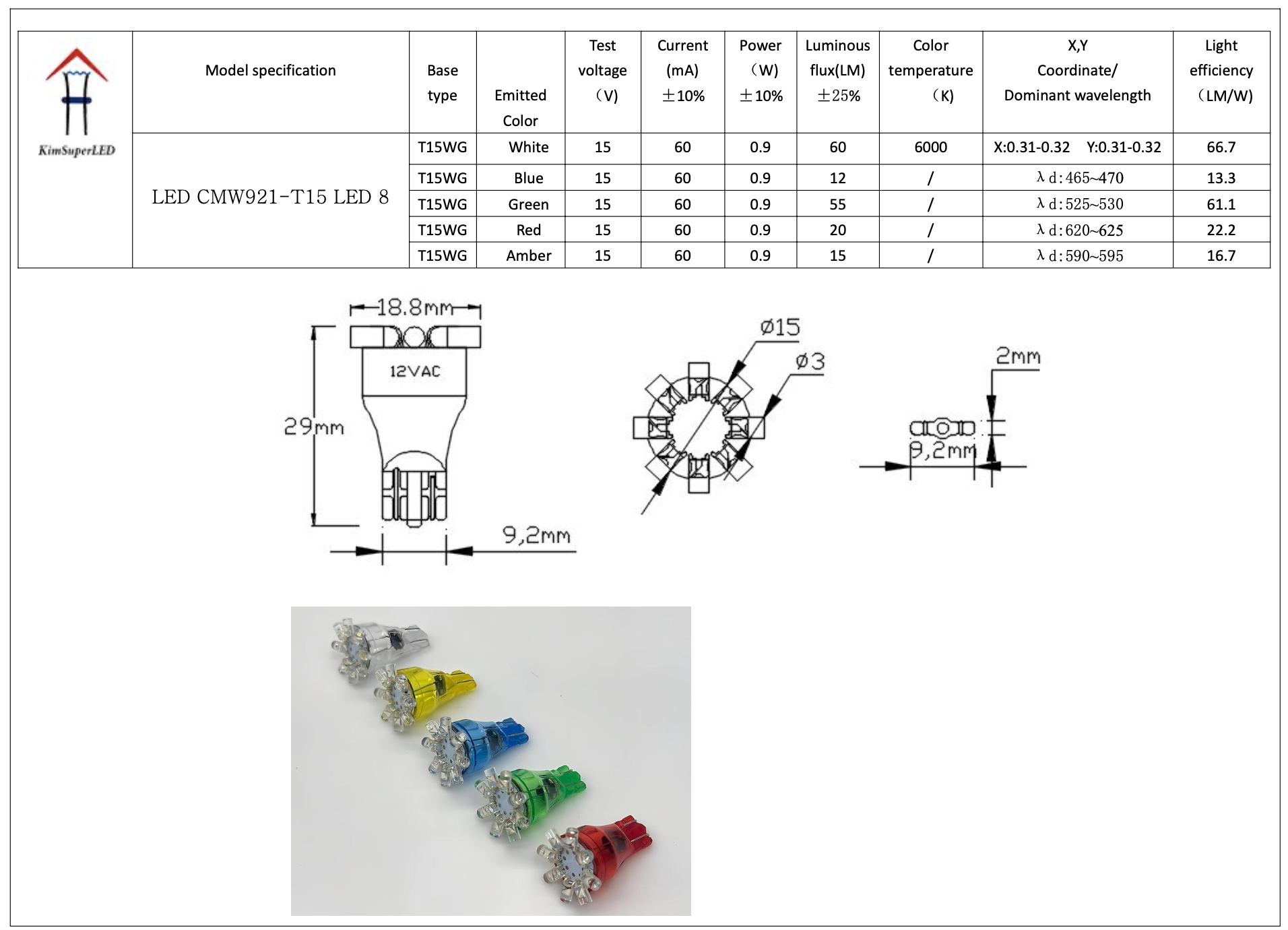

8. Material Specifications

Material: Polycarbonate (PC)
Heat Resistance: ≥ 80°C
Maintains structural integrity without deformation under high temperature.

***Note

Base Type: WEDGE BASE T15
Please confirm base specifications and dimensions before purchasing.
