CM4715-1156 Ba15s T15 HP LED 9

🔹 Product Overview

The CM4715-1156 Ba15s T15 HP LED 9 is a high-performance automotive LED bulb engineered for professional vehicle applications.
Designed with advanced thermal bonding technology, wide voltage protection, and EMC compliance, this model delivers stable high-lumen output and long-term reliability for passenger and commercial vehicles.

1️⃣ Advanced Thermal Compression Bonding Structure

• Flexible PCB thermally compression-bonded to metal substrate
• Tightly integrated with pure aluminum heat sink block
• Enhanced thermal conductivity and stable luminous output
• Maintains high-brightness performance over extended operation
• Engineered for vibration-resistant environments

This unique structure ensures high-lumen stability and consistent light performance.

2️⃣ Wide Voltage & Protection Design

• Wide Voltage: 10–30VDC
• Compatible with 12V & 24V vehicle systems
• Built-in lightning protection design
• Passed EMC interference testing
• Stable operation across passenger cars, trucks, trailers, and commercial fleets

3️⃣ Reinforced Structural Design

• Top-mounted PC plastic lens for optical protection
• Aluminum top cap for enhanced durability
• Improved mechanical strength and vibration resistance
• Optimized heat dissipation efficiency

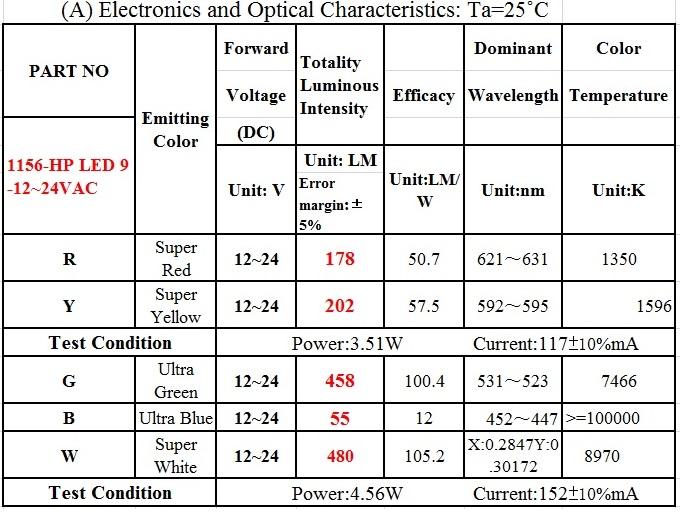

4️⃣ High Power & High Brightness

• 9 High-Power LEDs
• Luminous Flux: Up to 480LM
• High luminous efficiency
• Low power consumption with superior visibility
• Stable, concentrated light output

5️⃣ Wide Application Range

Suitable for:

• Turn Signal Lights
• Brake Lights
• Running Lights
• Position Lights
• Reverse Lights
• Side Marker Lights
• Commercial Vehicle Lighting Systems

6️⃣ Easy Installation

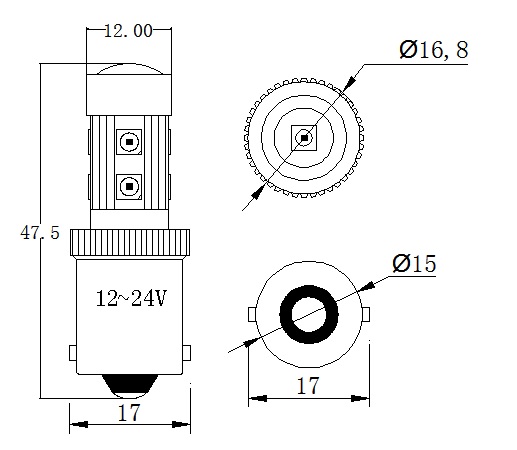

• Base Type: BA15s (1156)
• Direct replacement design
• Please confirm base compatibility before installation

7️⃣ Important Installation Notice

When replacing turn signal bulbs, a load resistor or compatible flasher relay may be required to prevent hyper flashing.

🔹 Key Advantages Summary

✔ 10–30V Wide Voltage Design
✔ EMC Approved
✔ Lightning Protection Circuit
✔ 480LM High Brightness
✔ Aluminum Heat Sink + Thermal Bonded PCB
✔ PC Lens Reinforced Structure
✔ High Stability & Long Service Life

📞 Welcome to contact us for further information.
We sincerely look forward to serving you with professional support and reliable solutions.
