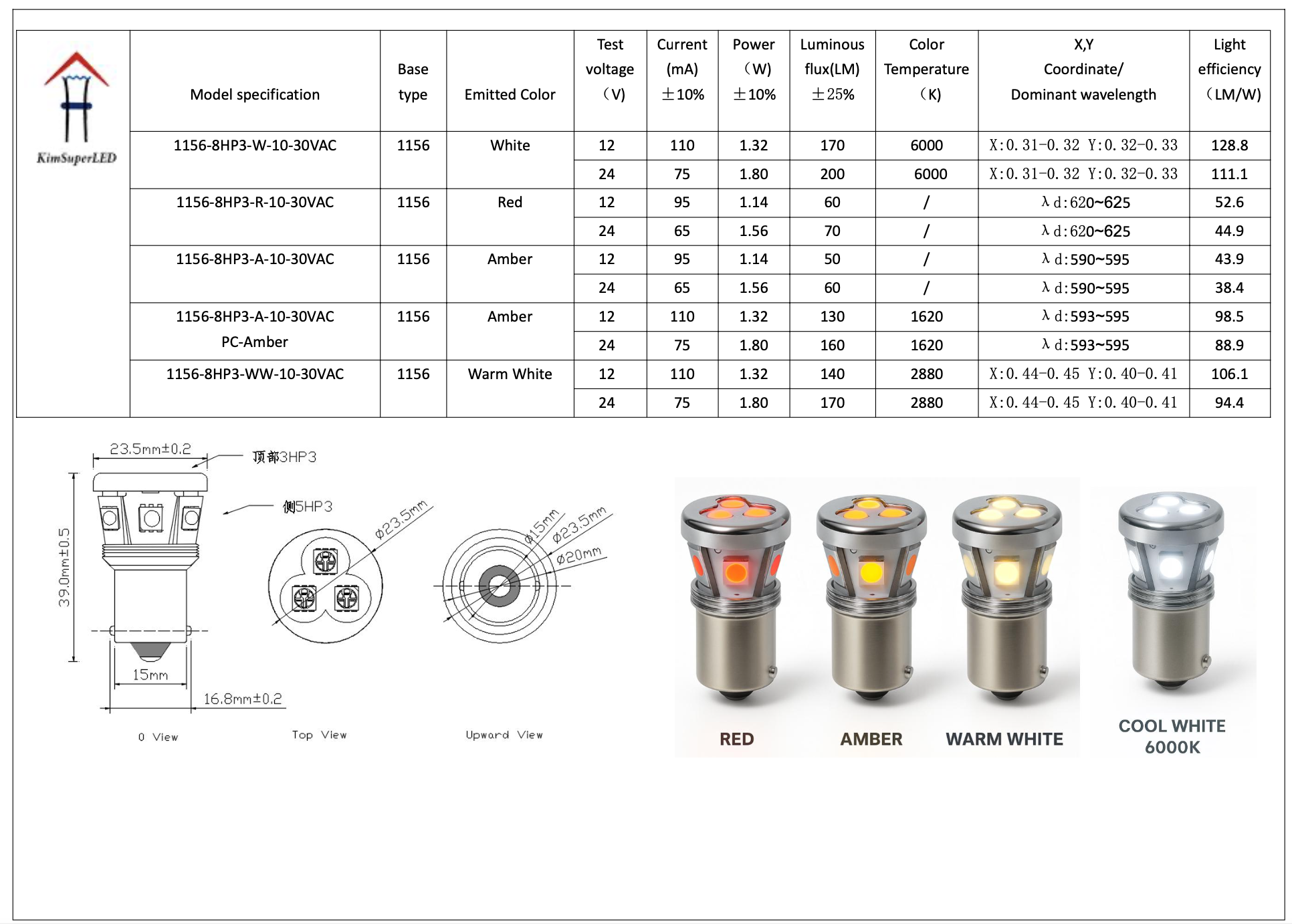

CMS3519-LED 1156/1157 T25 HP3 8

1. High Brightness & Excellent Cost Performance

• Equipped with 8 pcs SMD5050 high-efficiency LED chips.

• Delivers up to 200LM luminous output (6000K White).

• Low power consumption of only 1.7W per bulb.

• Outstanding value-to-performance ratio, highly recognized by customers worldwide.

2. Optical Design for Aftermarket Styling

• Engineered with optimized optical structure for focused light output.

• Enhanced beam concentration improves visual performance.

• Designed to meet aftermarket aesthetic and lighting expectations.

3. Wide Voltage 10–30VDC Design

• Supports 10–30V DC input.

• Suitable for both 12V and 24V vehicle systems.

• Stable performance across a wide voltage range.

• Ideal for cars, trucks, buses, and commercial vehicles.

4. Reinforced Electroplated Cap & Heat Dissipation

• Strengthened electroplated top cover enhances vibration resistance.

• Improved thermal conduction design for better heat dissipation.

• Durable construction with refined and premium appearance.

5. Wide Compatibility & Easy Installation

• Compatible with 1156 (BA15S) and 1157 (BAY15D) sockets.

• Non-polarity design for plug-and-play installation.

• Suitable for:

  • Turn Signal / Blinker Light

  • Brake / Stop / Tail Light

  • Reverse / Back-up Light

  • Side Marker Light

  • Daytime Running Light (DRL)

6. Designed for 24V Truck Applications

• Lower power consumption compared to halogen bulbs.

• For turn signal use, a 50W 27-ohm load resistor may be required to prevent hyper-flashing.

• Please verify socket type and vehicle specifications before installation.
