CM3717-67/68 BA15S T17 LED 1

LED CM3717-67/68 BA15S T17 LED 1

1. Wide Voltage Compatibility

Designed with a wide voltage input range of DC 10–30V, suitable for 12V and 24V vehicle electrical systems. Ideal for trucks, commercial vehicles, and mixed fleets.

2. Versatile Automotive Applications

Widely used in various automotive and commercial vehicle lighting applications, including:
• Indicator Lights
• Turn Signal Lights
• Running Lights
• Direction Lights
• Brake Lights
• Position Lights

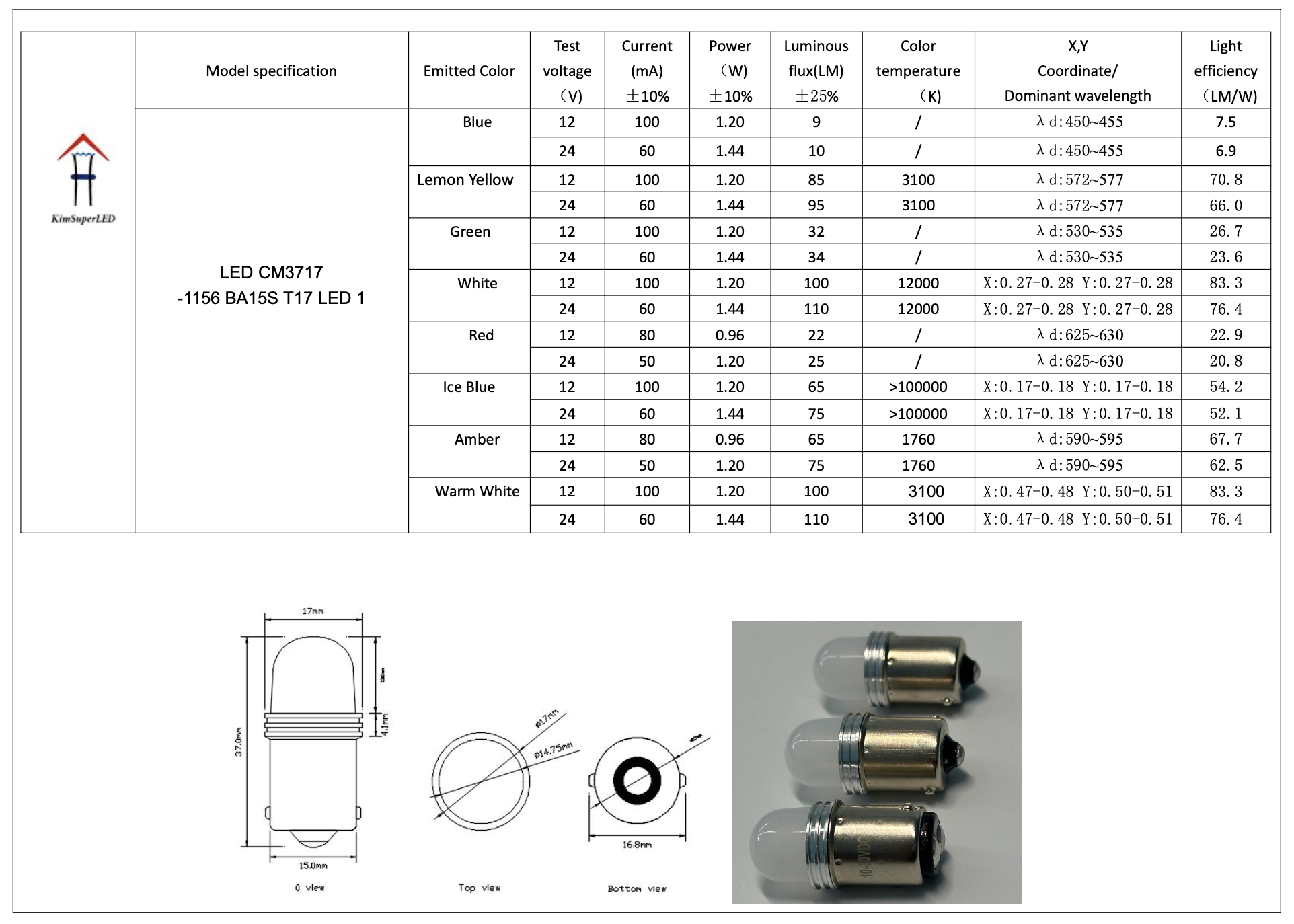

3. Power Consumption & Brightness

• Power Consumption: 1.65W
• Standard Luminous Flux: Up to 75 lumens (PC Amber version)
• Custom Brightness Available: up to 130 lumens upon request

Manufactured using PC Amber LED material and advanced production technology, delivering significantly higher brightness and improved visibility compared to conventional LED bulbs.

4. Enhanced Light Diffusion

Equipped with a frosted lens that improves light diffusion and expands the beam angle to 180°, ensuring wide, uniform illumination and reduced glare—especially important for safety signaling.

5. Installation Note

When replacing traditional incandescent bulbs with ultra-bright LEDs, turn signals may flash rapidly.
To maintain normal flashing behavior, an external metal resistor is recommended.

6. Proven & Trusted Product

The LED CM3717-67/68 BA15S T17 LED 1 is one of our best-selling models, widely adopted by truck and commercial vehicle customers.
Its stable quality, long-term reliability, and consistent performance have earned strong recognition and trust from customers worldwide.

Notice

Please confirm the bulb size and vehicle specifications before installation.
For custom brightness levels, voltage options, or OEM/ODM requirements, feel free to contact us for technical support.
