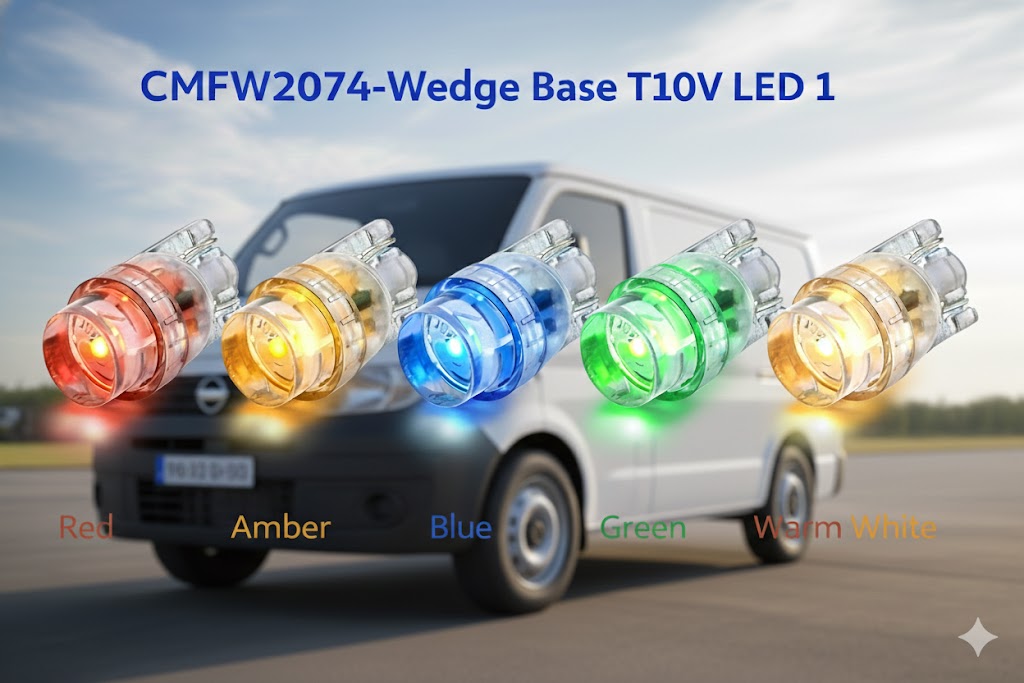

CMFW2074-Wedge Base T10V LED 1

CMFW2074 – Wedge Base T10V LED 1

Product Overview

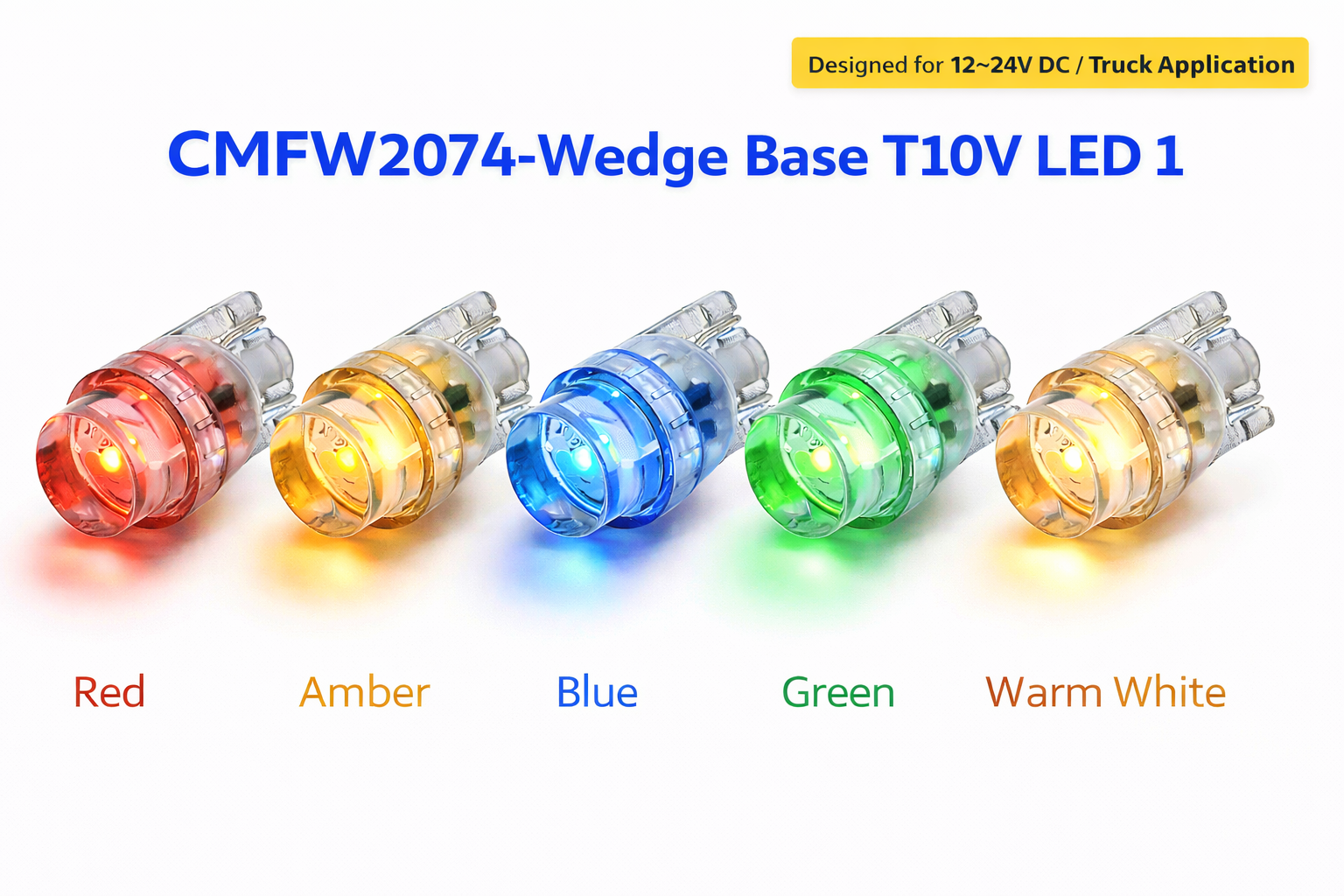

The CMFW2074 Wedge Base T10V LED 1 is a compact, high-efficiency LED bulb designed for commercial vehicle indicator lighting and decorative lighting applications.
With a V-shaped epoxy resin LED package and optimized optical design, it delivers 360° omnidirectional illumination with enhanced visual brightness and smooth light distribution.

Key Features

1. V-Shaped Epoxy Resin LED Package
   The LED chip is encapsulated in a V-shaped epoxy resin structure, allowing light to radiate evenly in all directions.
   This design significantly enhances perceived brightness and visibility under optimized optical conditions.

2. 360° Omnidirectional Lighting
   Advanced optical design provides a full 360-degree beam angle, eliminating dark spots and ensuring uniform illumination—ideal for indicator and signal applications.

3. Optimized for Truck Applications (24–30V DC)
   Designed specifically for commercial vehicles and trucks, supporting 24–30V DC input, ensuring stable operation in demanding electrical environments.

4. Frosted / Diffused Light Effect
   The epoxy resin structure naturally diffuses light, producing a soft, glare-free output while maintaining high visibility.

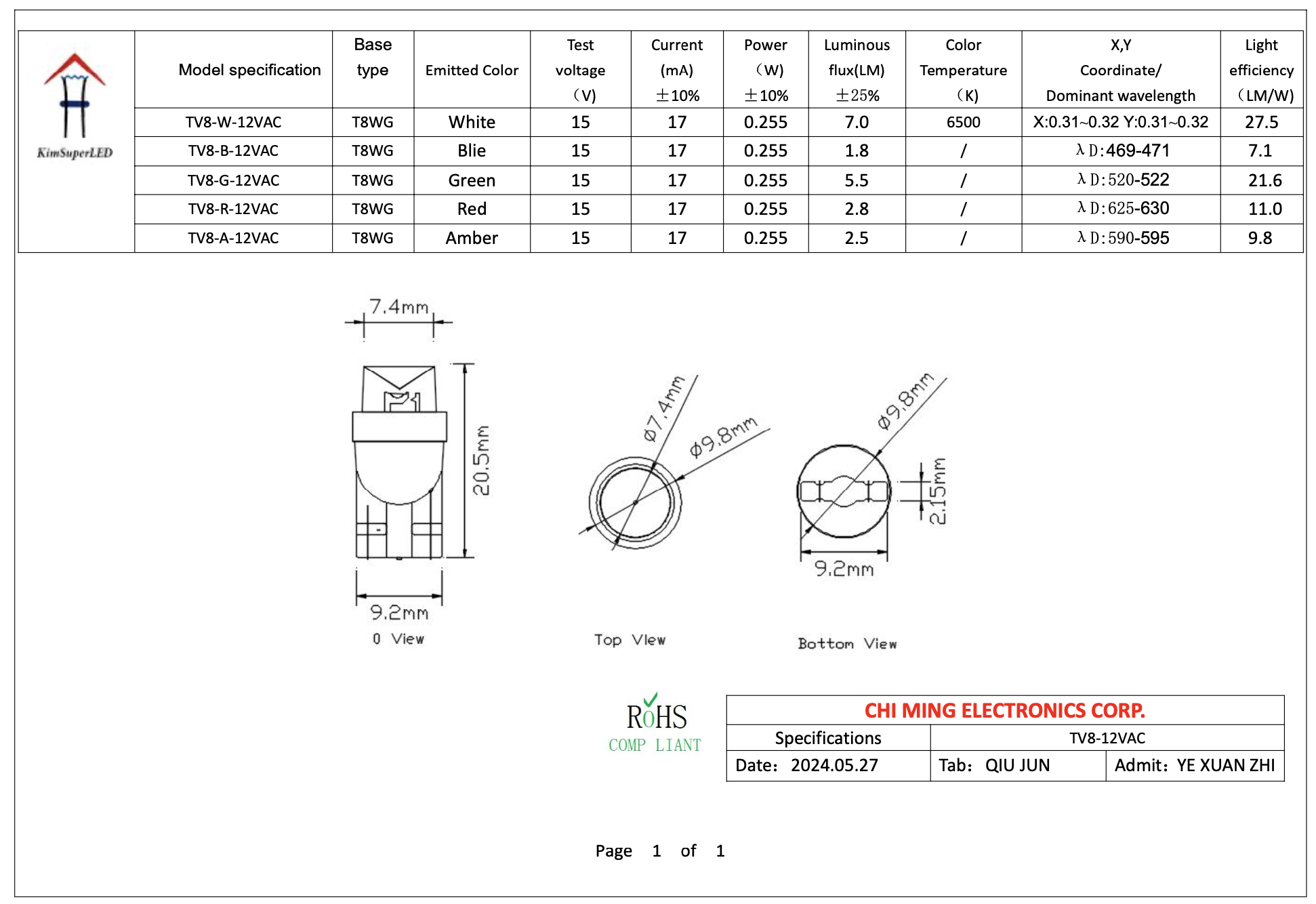

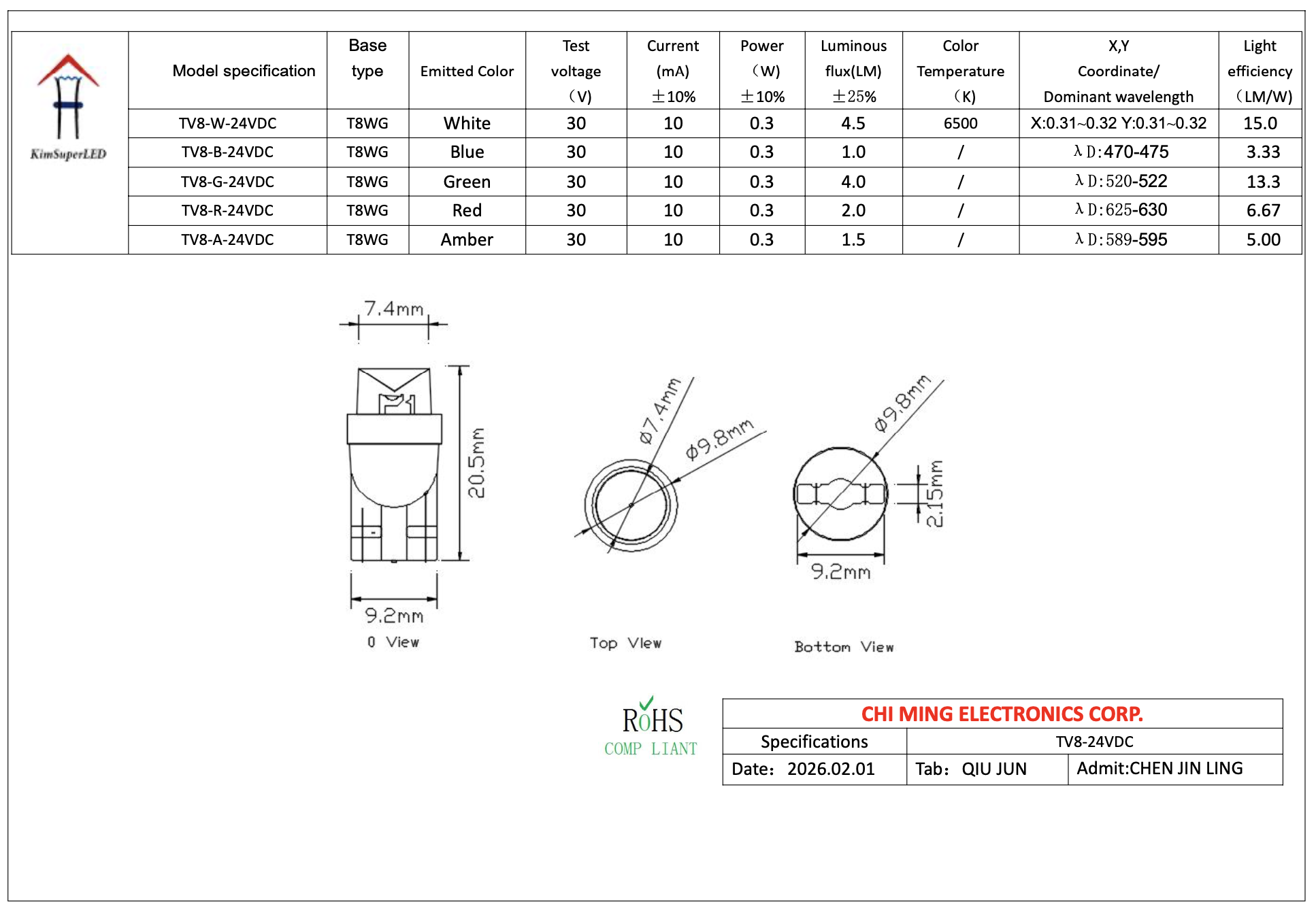

5. Wedge Base T10V Standard Size

   • Bulb Type: T10V – W2.1 × 9.5d

   • Dimensions: T8 × 21 mm

   • Compatible with traditional wedge base sockets, allowing easy replacement.

6. Easy Plug-and-Play Installation
   Direct replacement design enables quick installation with no modification required.
   Polarity-sensitive version available; non-polar design optional upon request.

7. Low Power Consumption & Long Lifespan

   • Power Consumption: 0.255W

   • Lifespan: Up to 50,000 hours
     Provides excellent energy efficiency while maintaining long-term reliability.

Applications

• Truck indicator & dashboard signal lights (24–30V DC)

• Commercial vehicle status and warning indicators

• Interior auxiliary lighting

• Camping lights

• Decorative string lights

• Ambient and decorative illumination

Summary

The CMFW2074 Wedge Base T10V LED 1 combines a V-shaped epoxy resin LED package, 360° omnidirectional lighting, and 24–30V DC stability, making it an ideal solution for truck indicator lighting as well as camping and decorative lighting applications where visual brightness and reliability are essential.
