CMB2809-Ba9s T10 HP3 LED 1

Description

LED CMB2809-BA9S T10 HP3 LED 1

Power Supply
6V / 12V / 24V DC & AC

LED Specifications & Quantity
SMD5050 LED, 0.2W
1 × SMD5050 LED

Beam Angle
120° wide viewing angle for uniform and consistent light distribution

Dimensions
L28 mm × W10 mm

Manufacturing & Quality
Manufactured using high-temperature solder paste and advanced reflow soldering technology to ensure stable performance, durability, and long-term reliability.

Base Type
BA9S single-contact base with a non-polar design, allowing flexible installation without polarity concerns.

Striped Cover Design
The finely grooved PC cover enhances light diffusion, providing brighter and more uniform illumination.

Wide Voltage Compatibility
Supports AC input up to 60V / 110V / 230V, making it suitable for light industrial lighting, instrument panel bulbs, and indicator applications.

Long Lifespan & Energy Efficiency
Rated lifespan up to 50,000 hours
Low power consumption at only 0.24W per bulb

PC-Amber Manufacturing Method
The amber version uses PC-Amber material, delivering approximately twice the brightness compared to standard amber lumen output.

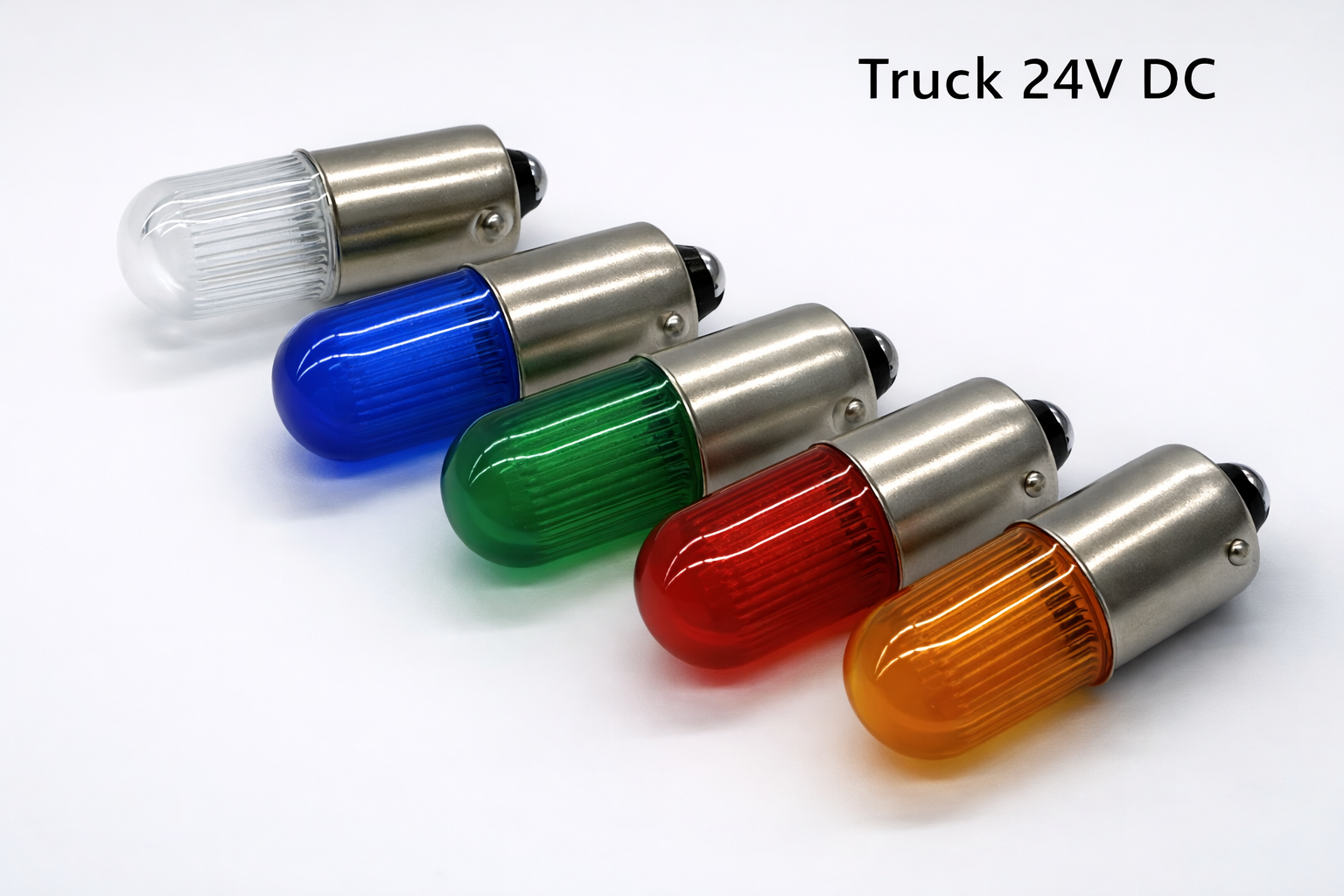

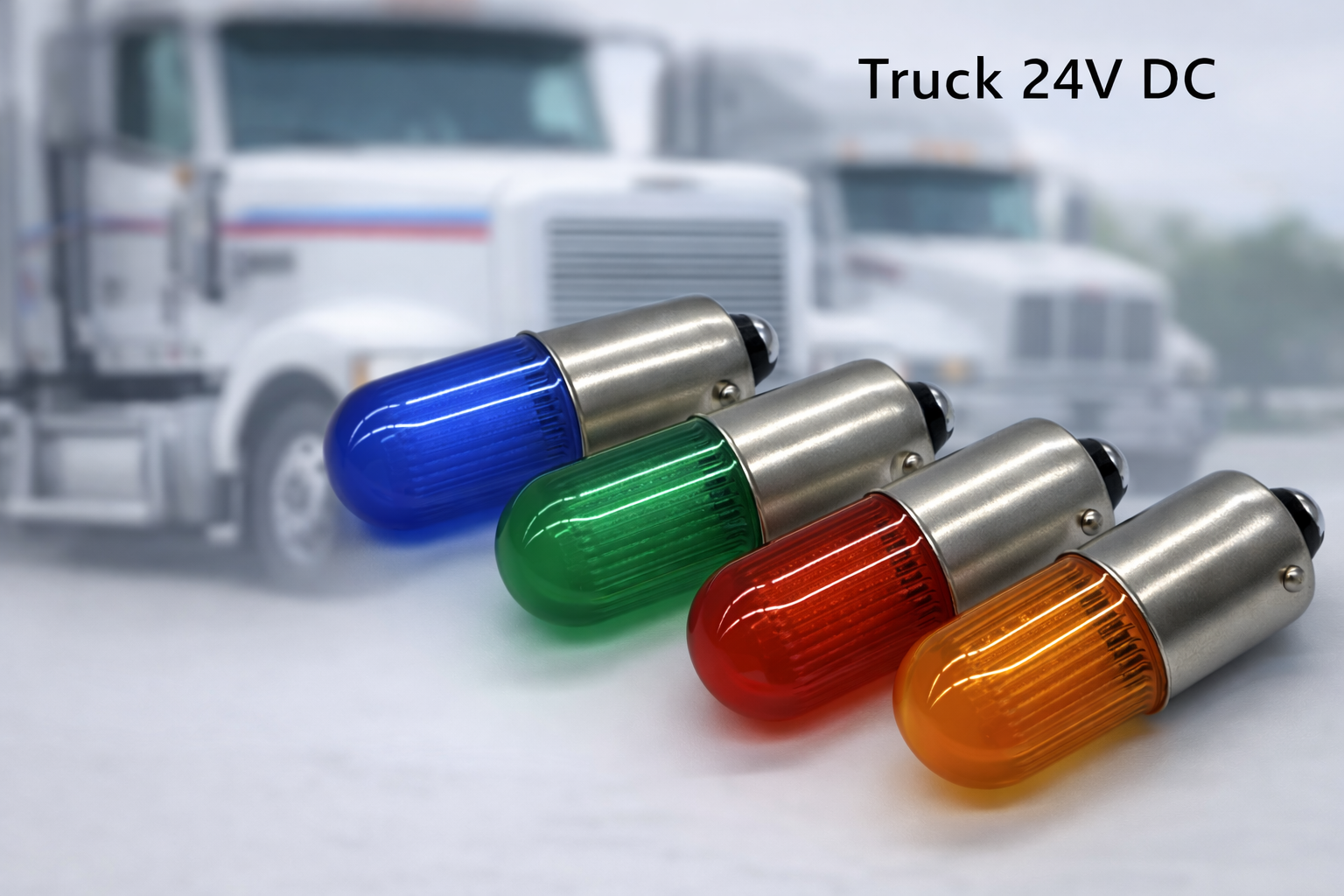

Color Options
Available in Red, Green, White, Yellow (Amber), Blue, and other customizable colors to meet various application requirements.

Note 1

Please carefully check the model and size before purchasing.
If you need assistance with compatibility or application selection, feel free to contact us.

Note 2

Please pay close attention to the power supply voltage before use.
If the applied voltage exceeds the designed voltage rating of the LED bulb, the bulb may be damaged or burned out.
The voltage rating is clearly marked on the LED bulb base—please ensure the correct operating voltage is used during installation.
