CMB2810-Ba9s T10 LED 1

CMB2810-BA9S T10 LED 1

24V DC Truck Lighting Application

Product Description

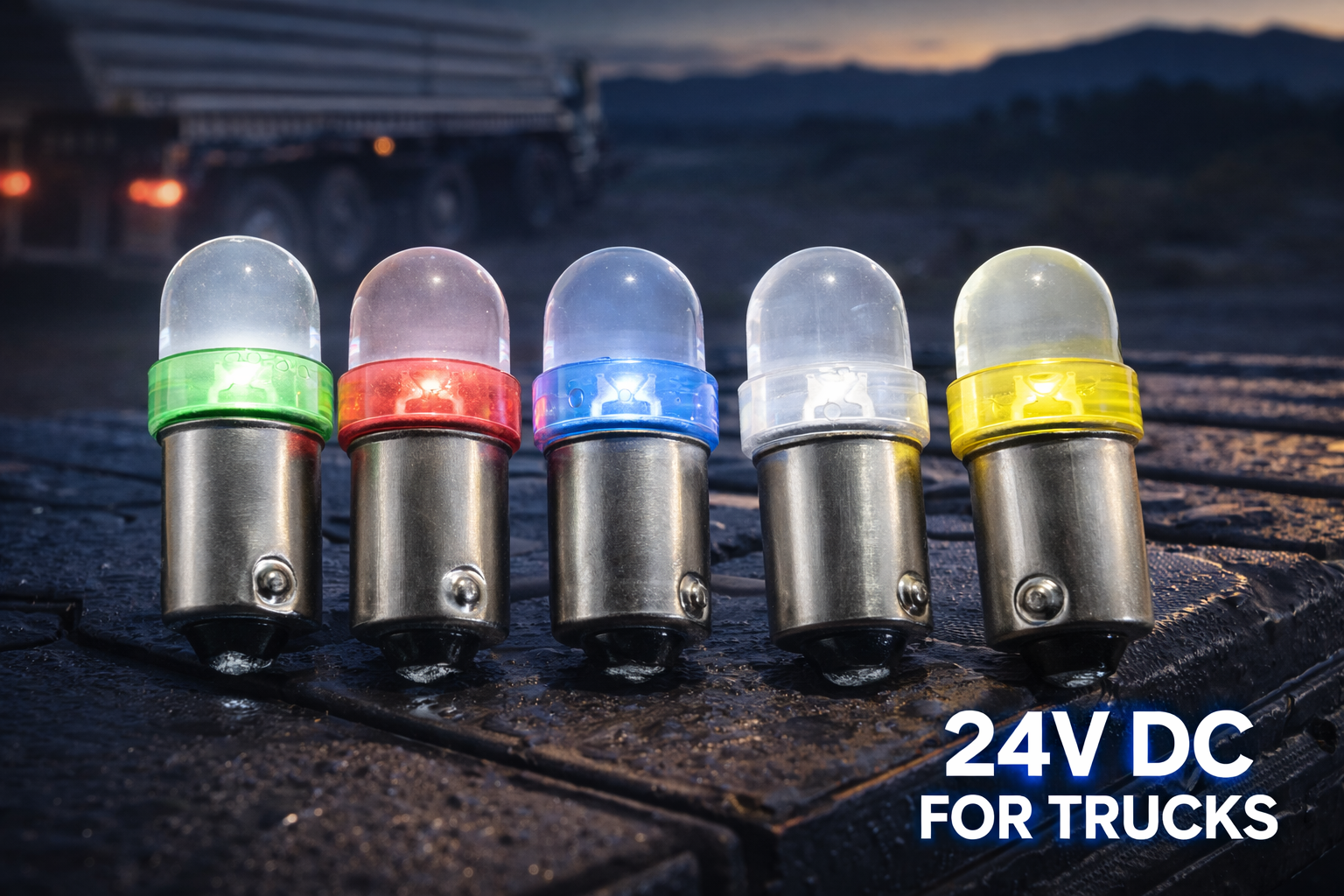

The CMB2810-BA9S T10 LED 1 is a compact BA9S-base LED bulb designed specifically for 24V DC truck and commercial vehicle lighting systems.
With a transparent epoxy resin dome and metal BA9S base, it provides stable illumination, vibration resistance, and long service life—ideal for demanding truck operating environments.

Key Features

1. BA9S (T10-Style) Miniature Base
Standard BA9S bayonet base, suitable for truck dashboards, instrument panels, and indicator lamps.

2. Optimized for 24V DC Truck Systems
Designed for 24V DC truck applications, ensuring stable operation under commercial vehicle electrical conditions.

3. Transparent Epoxy Resin Encapsulation
Clear epoxy resin dome protects the LED chip, improves mechanical durability, and ensures consistent light output.

4. Low Power Consumption

• Power consumption: 0.30 W

• Current: 10 mA ±10%
  Efficient energy usage with minimal heat generation.

5. Stable Light Output & Long Service Life
Provides reliable illumination for long-term operation in vibration-prone truck environments.

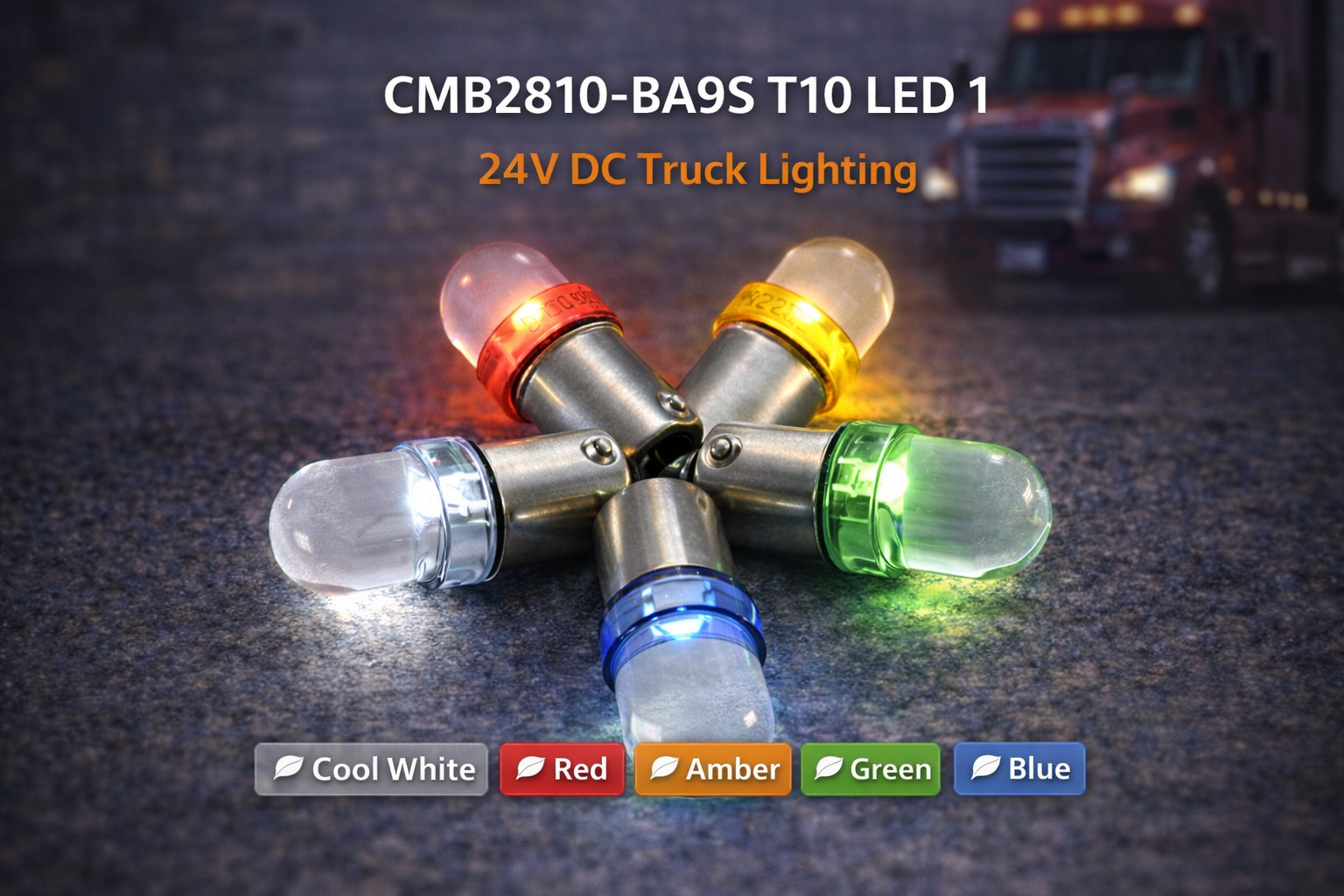

6. Multiple LED Color Options
Available colors include:

• Cool White (6500K)，Red,  Green,Blue, Yellow(Amber).

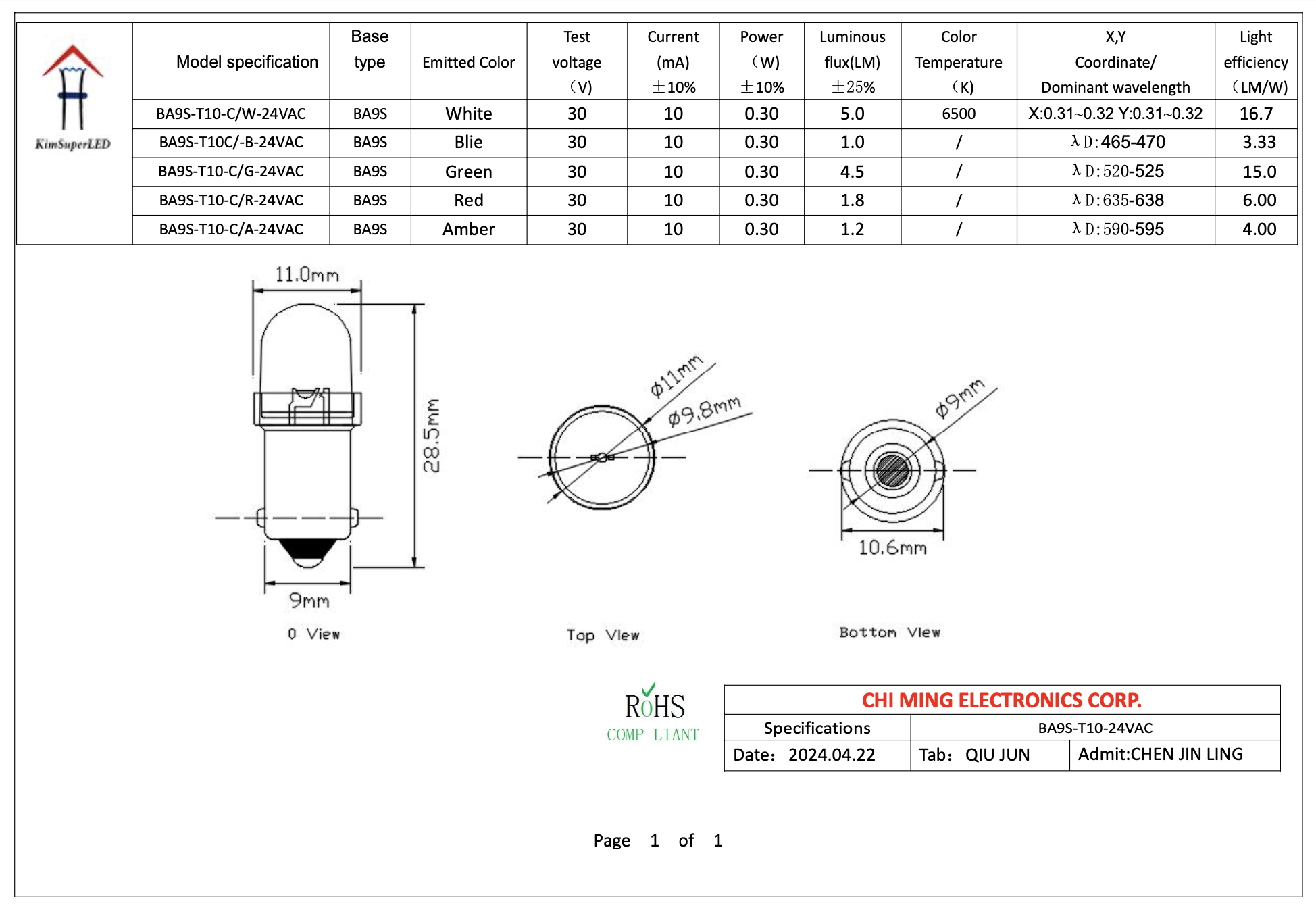

Electrical & Optical Specifications

(Based on BA9S-T10-24V series specification)

• Operating Voltage: 24V DC

• Power: 0.30 W

• Viewing Angle: Wide indicator illumination

• Compliance: RoHS
