CMT2710-Wedge T10 LED 1

CMT2710-Wedge T10 LED 1

24V Truck Lighting Application

Product Description

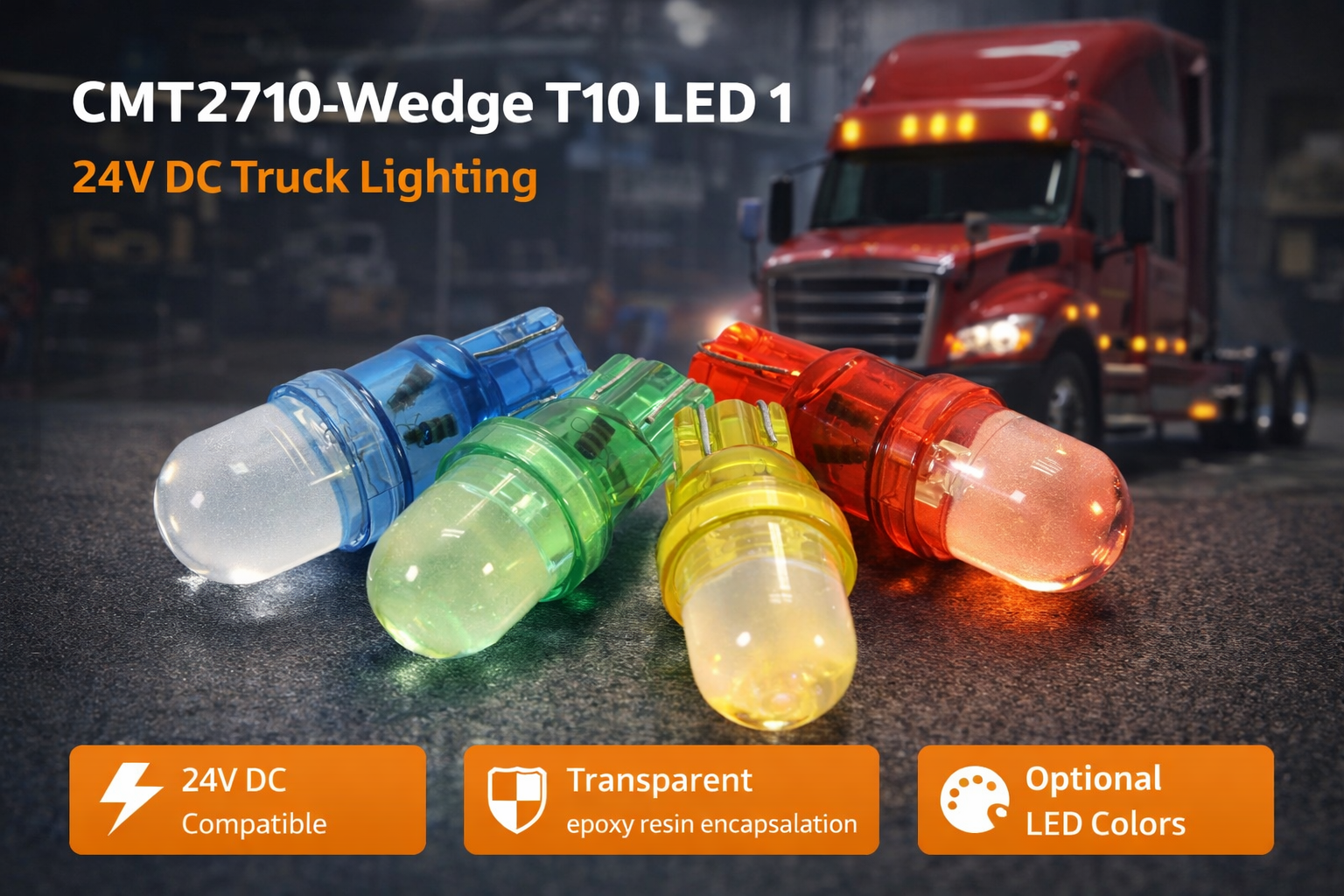

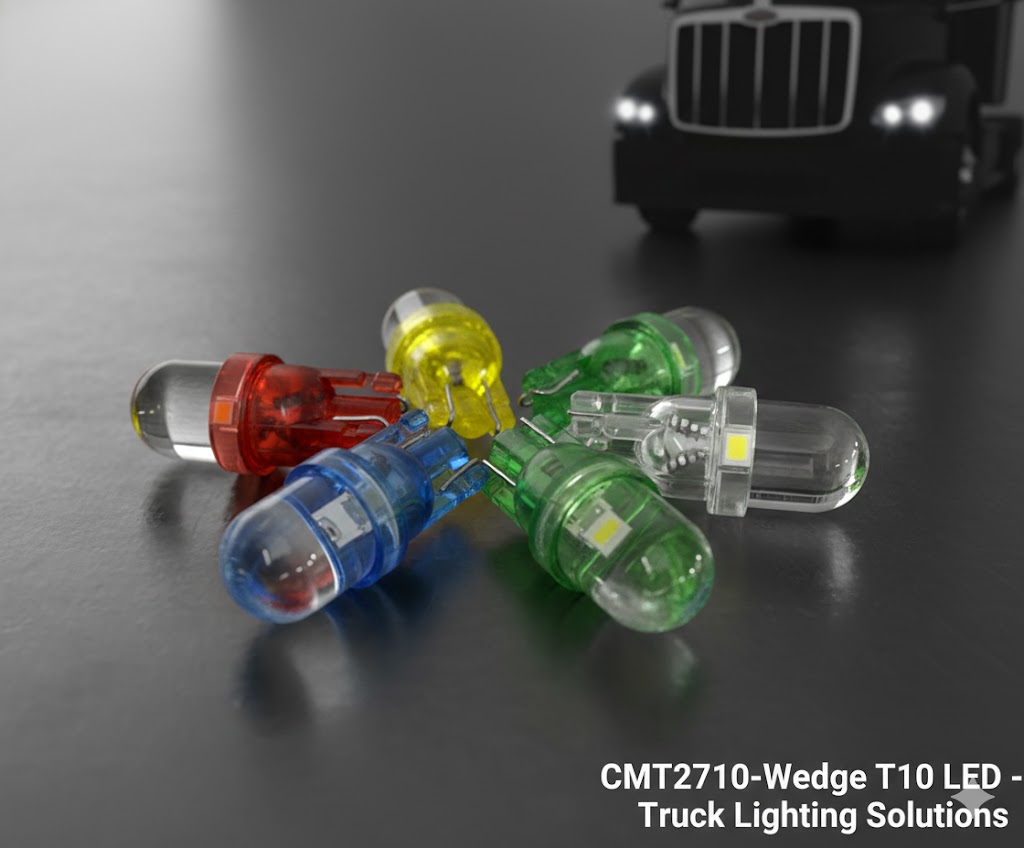

The CMT2710-Wedge T10 LED 1 is a compact T10 wedge-base LED bulb designed primarily for 24V DC truck and commercial vehicle applications.
Featuring a transparent epoxy resin encapsulation, it provides stable, evenly distributed illumination with enhanced durability and long service life.

Key Features

1. T10 Wedge Base Design
Standard W2.1 × 9.5d T10 wedge base, compatible with a wide range of truck and automotive sockets.

2. Polarity Options Available
Standard polarity-sensitive design, with optional non-polar configuration for easy installation.

3. Transparent Epoxy Resin Encapsulation
Protects the LED chip, enhances mechanical strength, and ensures stable, uniform light emission with long-term reliability.

4. Optimized for 24V Truck Systems
Standard version supports 24V DC truck and commercial vehicle applications.
Optional 12V DC version available for passenger vehicles.

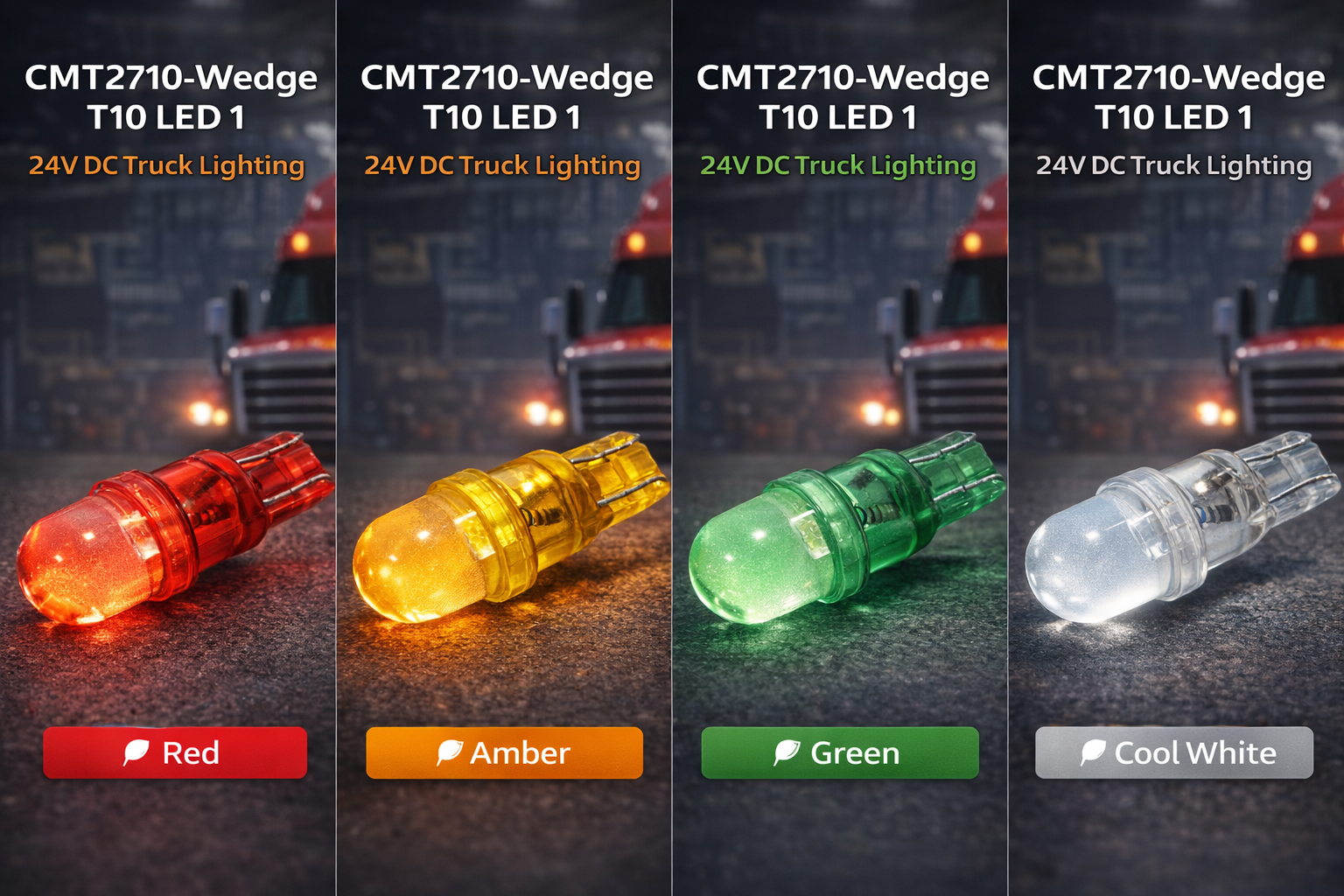

Multiple LED colors available upon request.

5. Wide Application Range
Suitable for truck and vehicle:

• Instrument panel lights

• Indicator and warning lights

• License plate lights

• Interior auxiliary lighting

• Moving indicator and signal applications

6. Compact Dimensions
Size: T10 × 27 mm, ideal for limited-space dashboard and indicator installations.

7. Low Power Consumption & Long Lifespan
Low power consumption of 0.255 W per bulb with a lifespan of up to 50,000 hours, ensuring stable long-term performance.

8. Color Temperature Options
Standard color temperature: 6000K Cool White.
Other LED colors available for custom applications.

Typical Applications

• Truck dashboard indicator lights

• Instrument cluster illumination

• Industrial vehicle signal lights

• Automotive auxiliary lighting

Notes

Please confirm voltage, LED color, and polarity requirement before installation.
For truck-specific configurations, 24V systems, or custom LED color options, feel free to contact us for technical support.
