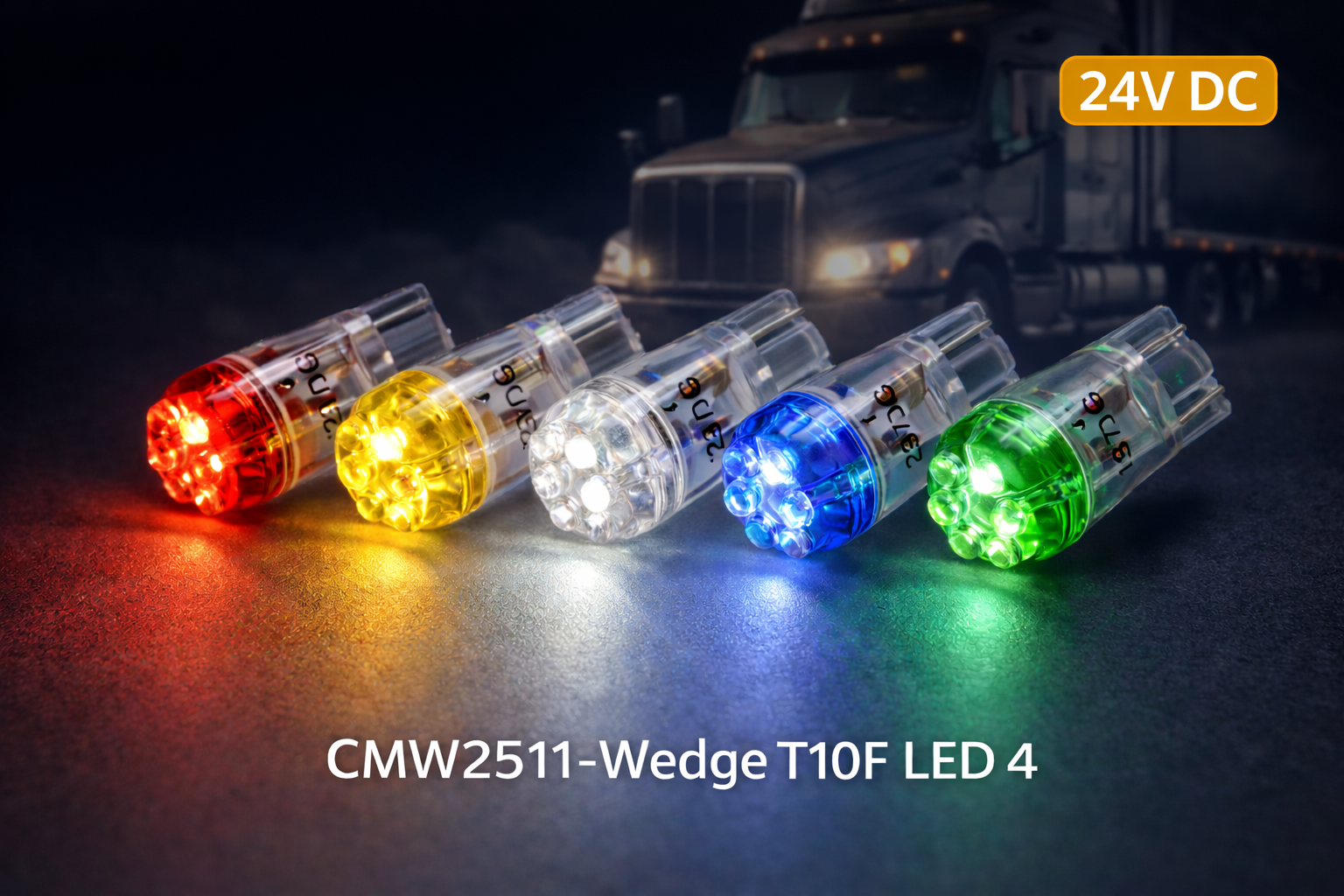

CMW2511-Wedge T10F LED 4

CMW2511-Wedge T10F LED 4

Applications & Features

1. T10 Wedge Base Design (W2.1 × 9.5d)
   Standard T10 wedge base, designed for truck dashboard indicator lamps, warning indicators, status signals, and auxiliary interior lighting applications.

2. Optimized for Truck & Commercial Vehicles
   Engineered for 24V DC truck systems, while also compatible with 12V automotive platforms, suitable for mixed-fleet and commercial vehicle applications.

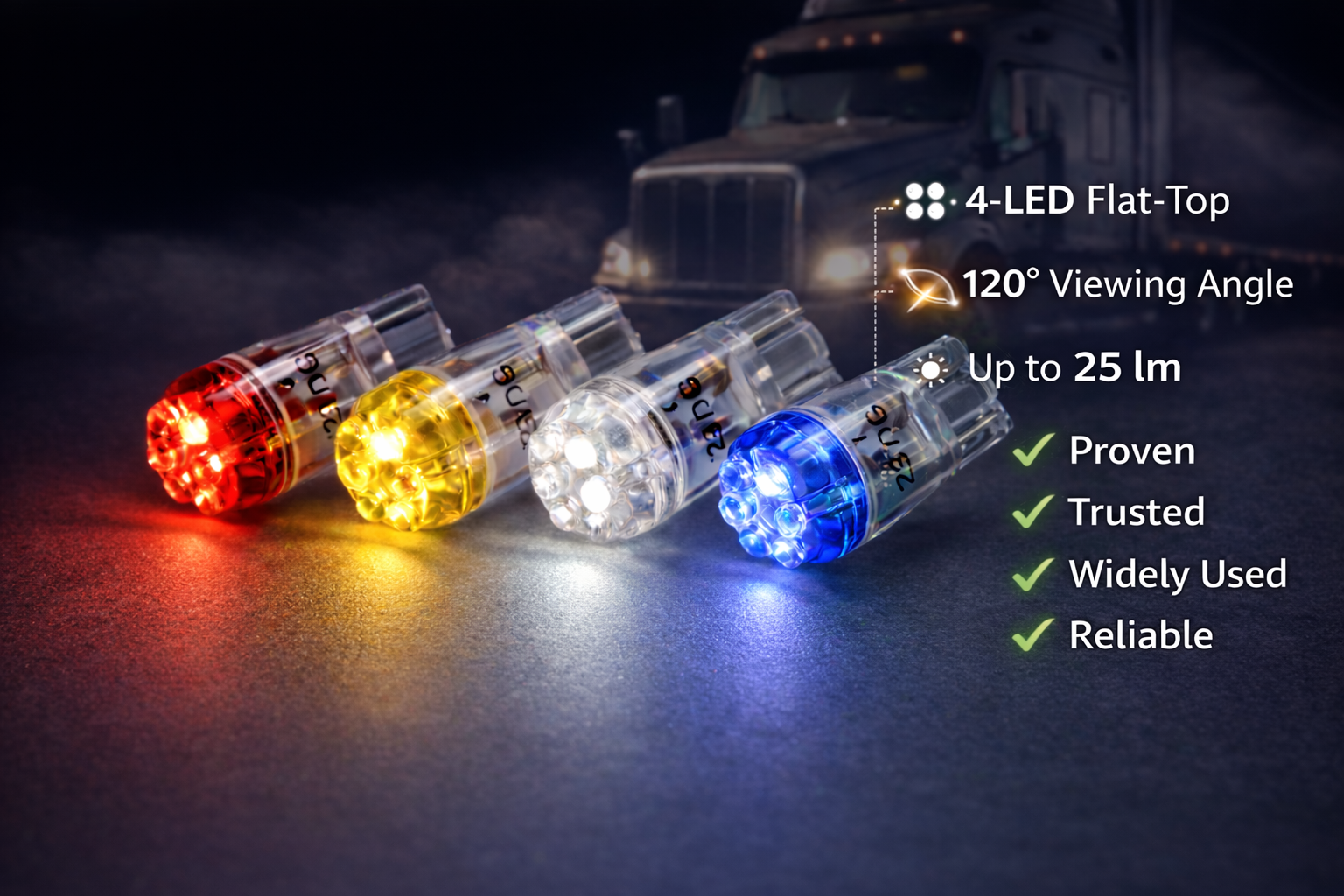

3. 4-LED Flat-Top Structure
   Built with four high-efficiency LEDs in a flat-top configuration, providing stable and uniform light output.

4. Wide 120° Viewing Angle
   Offers a 120-degree beam angle, ensuring clear visibility across instrument panels and indicator positions.

5. High Luminous Output
   Delivers up to 25 lumens, enabling clear and readable indication under both daytime and nighttime conditions.

6. Soft & Even Light Distribution
   Optimized optical design provides smooth, evenly diffused light without glare, ideal for status and warning indicators.

7. Compact & Standardized Dimensions
   Approx. 25 mm overall length, designed for direct replacement in standard T10 wedge sockets.

8. Low Power Consumption
   Energy-efficient design ensures stable operation with minimal power draw, supporting long-term vehicle reliability.

9. Long Service Life
   Designed for durability and stability, offering extended operational life for commercial and industrial environments.

10. Multiple Color Options
    Available in Red, Blue, Green, Amber (Yellow), and White, supporting various indicator, warning, and decorative lighting needs.

11. Reliable & Proven Performance
    High-reliability construction with consistent quality, widely trusted by customers in truck, automotive, and industrial markets.

Note

Please confirm the model and dimensions before installation.
For truck-specific configurations, voltage options, or custom LED colors, feel free to contact us for technical support.
