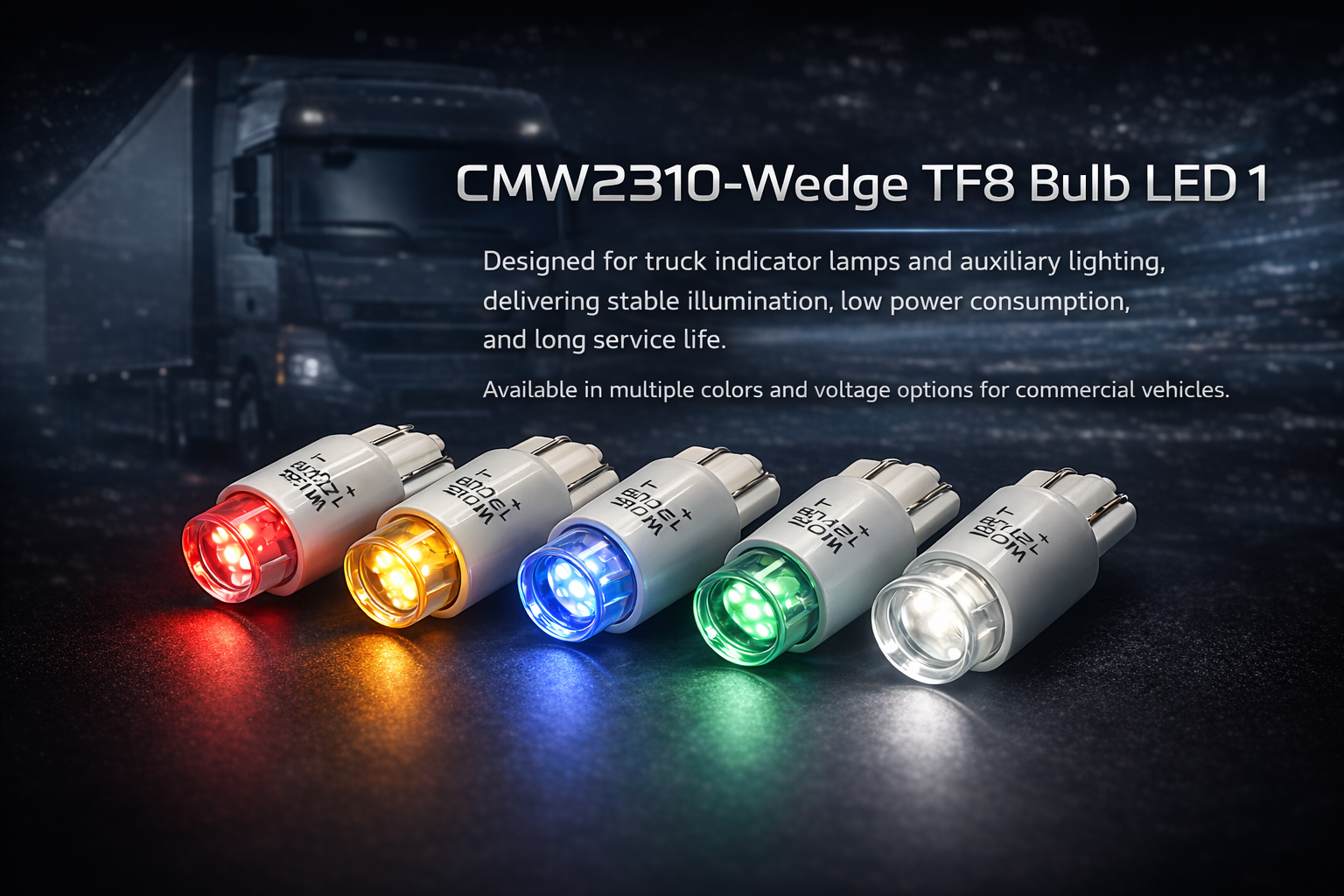

CMW2310-Wedge TF8 Bulb LED 1

Applications & Features

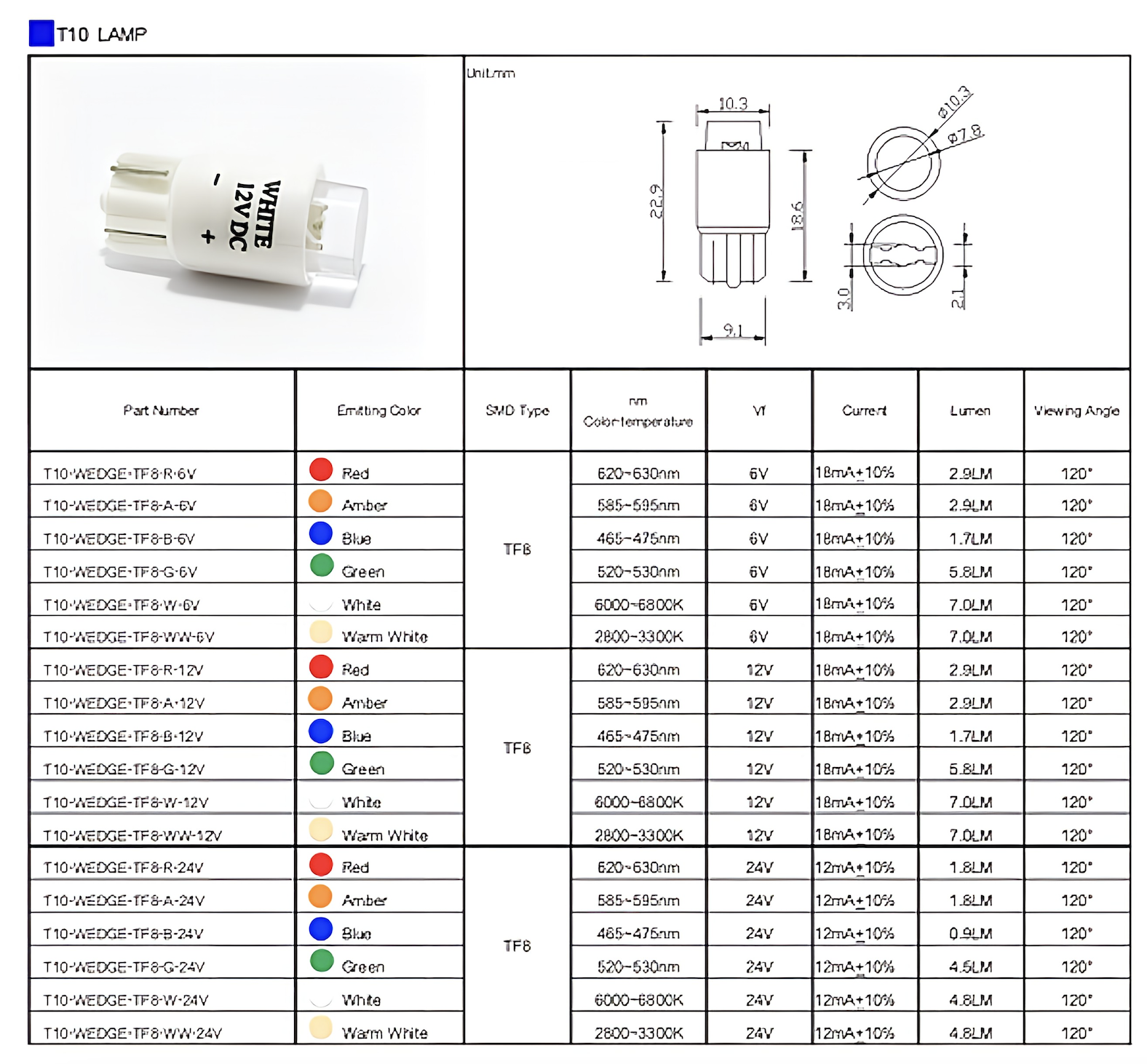

1. T10 Wedge Base LED (W2.1×9.5d)
   Designed primarily for truck dashboard indicator lamps, warning indicators, status signals, and auxiliary interior lighting applications.

2. Optimized for Truck Applications
   Suitable for 24V truck systems as well as 12V automotive platforms, ideal for commercial vehicles and mixed-fleet use.

3. Polarity Options Available
   Available in both polarity-sensitive and non-polar versions, ensuring easy installation and compatibility with various vehicle wiring designs.

4. Soft & Even Light Output
   Frosted lens design improves light diffusion, delivering gentle, uniform illumination without glare—perfect for indicator and status lighting.

5. Wide Voltage Compatibility
   Standard versions support 6VDC and 12VDC.
   24VDC and additional LED colors are available upon request for truck and industrial applications.

6. High Visibility Performance
   Provides up to 7 lumens with a wide 120° viewing angle, ensuring clear visibility in both daytime and nighttime conditions.

7. Compact & Standardized Dimensions
   Measures T10 × 27 mm, fitting standard wedge bulb sockets commonly used in trucks and vehicles.

8. Low Power Consumption
   Consumes only 0.33W per bulb, offering energy-efficient operation with stable performance.

9. Long Service Life
   Rated for up to 50,000 hours, ensuring reliable, long-term operation in commercial and industrial environments.

10. Multiple Color Options
    Available in Red, Blue, Green, Amber (Yellow), and White, supporting various indicator, warning, and decorative lighting needs.

11. Proven & Trusted Quality
    High-reliability design, widely approved and recognized by customers in the truck, automotive, and industrial sectors.

Note

Please confirm the model and dimensions before installation.
For truck-specific configurations, voltage options, or custom LED colors, feel free to contact us for technical support.
