CMB2809-Ba9s T10 HP3 LED 1

🔧 LED CMB2809 – BA9S T10 HP3 LED 1

Product Description

The CMB2809 BA9S T10 HP3 LED 1 is a high-reliability LED indicator lamp designed for switch indicators, instrument panels, and industrial control systems.

This model features a 120° wide beam angle LED combined with a specially engineered convex PC lens structure, enabling centralized light concentration with wide-area visibility.

👉 This unique optical design ensures both:

• Focused brightness at the center
• Uniform illumination across a wide viewing range

Making it ideal for clear and stable signal indication in various applications.

💡 Key Features

🔆 120° Wide Beam + Central Focus Design

• Equipped with SMD5050 LED (0.2W)
• Provides 120° wide-angle illumination
• Combined with convex PC lens

👉 Achieves:

• Enhanced visibility from multiple angles
• Concentrated light output at the center
• Clear signal indication even in bright environments

🔍 Special PC Lens

The striped PC cover with integrated convex lens offers:

• Improved light diffusion
• Centralized light enhancement
• Brighter and more uniform appearance

👉 Especially suitable for:

• Switch indicator lights
• Instrument panel indicators
• Control panel signal lights

⚡ Wide Voltage Compatibility

Supports multiple voltage systems:

• 6V / 12V / 24V DC & AC
• 110VAC / 220VAC (optional)

Ensures stable performance across:

• Industrial equipment
• Automotive & 24V truck systems
• Electrical and control panels

🔩 BA9S Base – Non-Polarity Design

• Standard BA9S single-contact base
• Non-polar design for flexible installation
• Easy plug-and-play replacement

🧱 Durable PC Housing

• Made from high-quality PC plastic (polycarbonate)
• Resistant to:
  • Heat
  • Vibration
  • Impact

👉 Suitable for long-term industrial use

🏭 Manufacturing & Quality

Manufactured using:

• High-temperature solder paste
• Advanced reflow soldering technology

👉 Ensures:

• Stable electrical performance
• High durability
• Long-term reliability

🌈 Color Options

Available in:

• White
• Red
• Green
• Blue
• Yellow (Amber)
• Custom colors available

👉 PC-Amber version:

• Uses special PC material
• Provides ~2× brightness vs standard amber LEDs

⏳ Long Lifespan & Energy Efficiency

• Lifespan up to 50,000 hours
• Low power consumption (~0.24W)
• Energy-saving and stable output

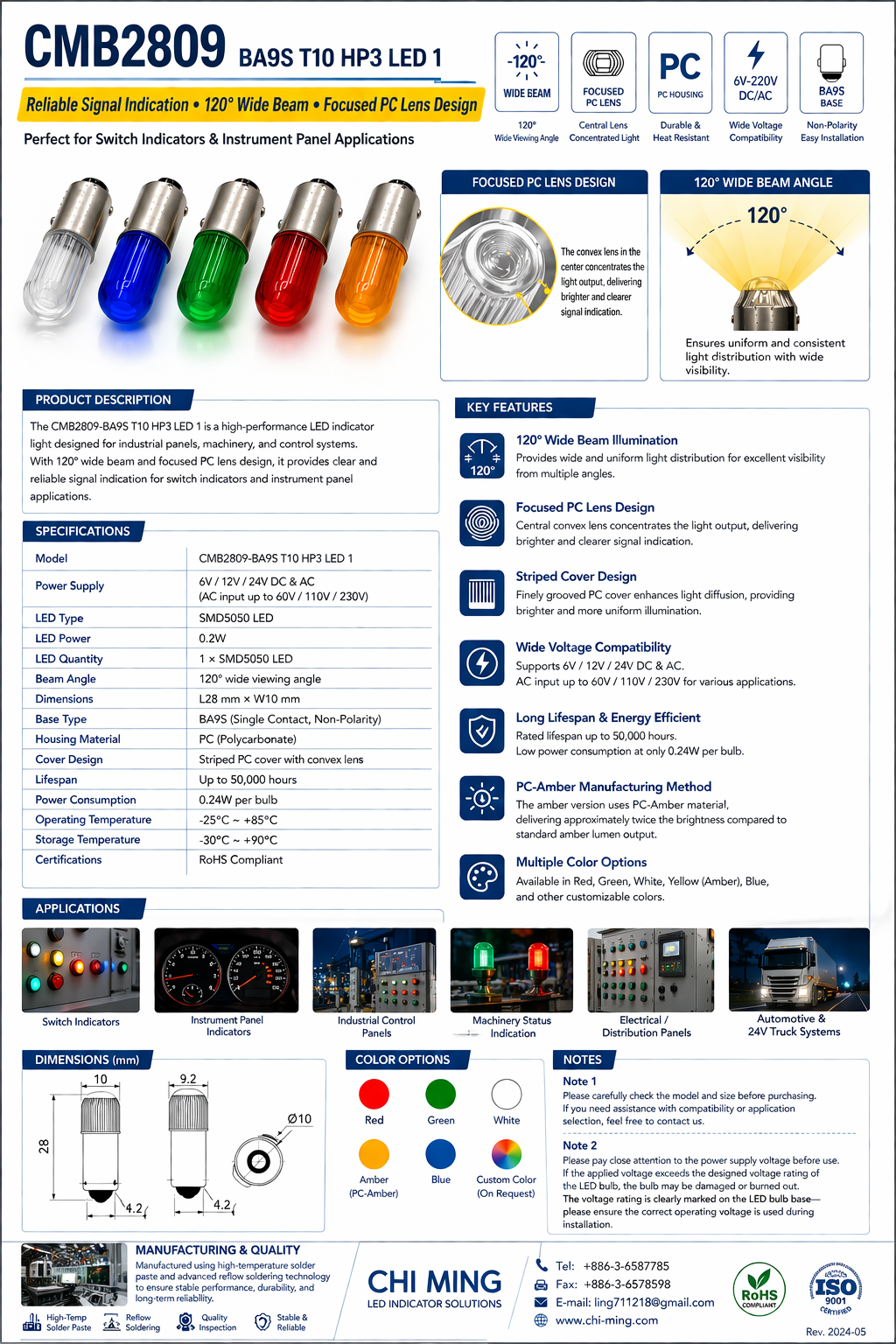

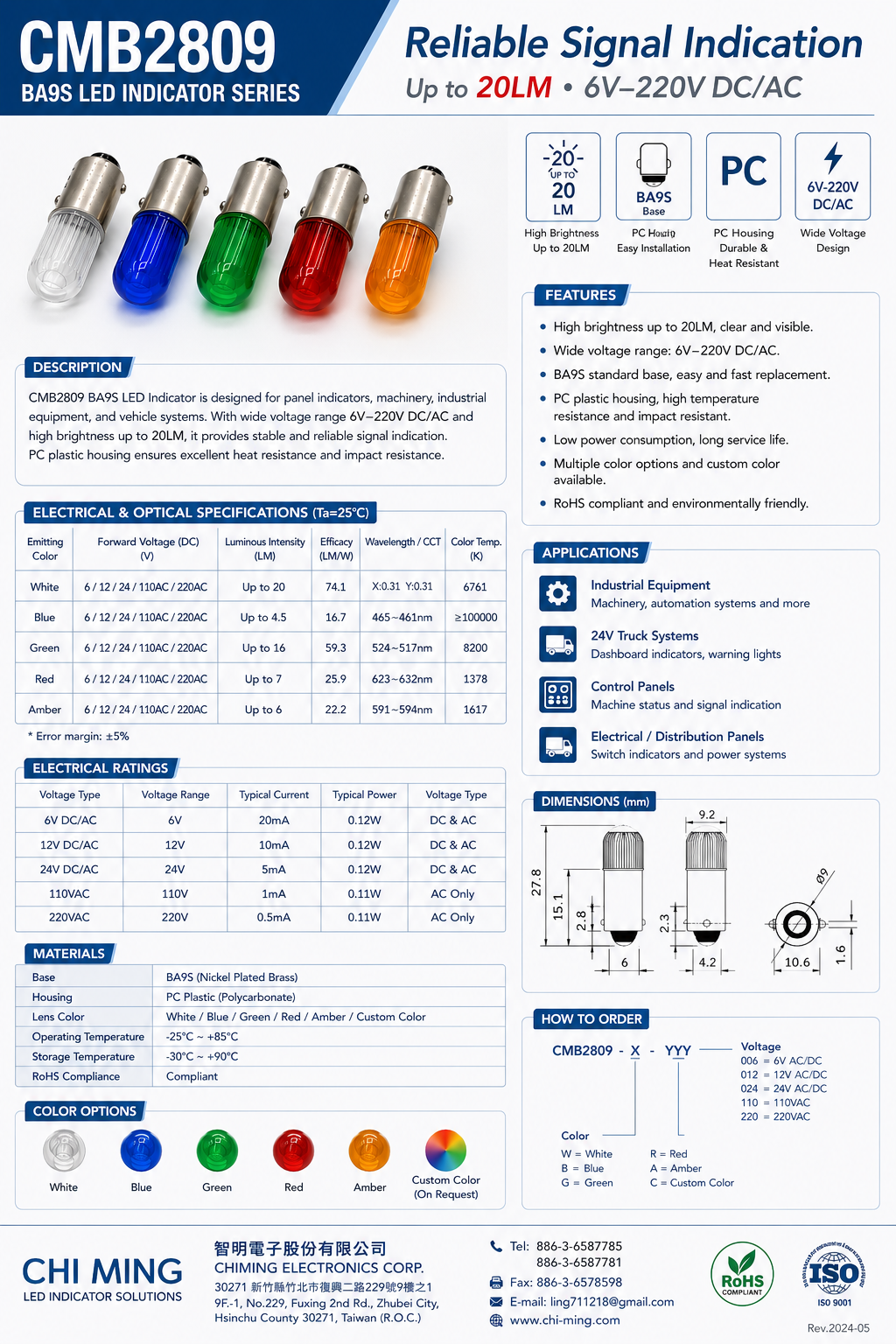

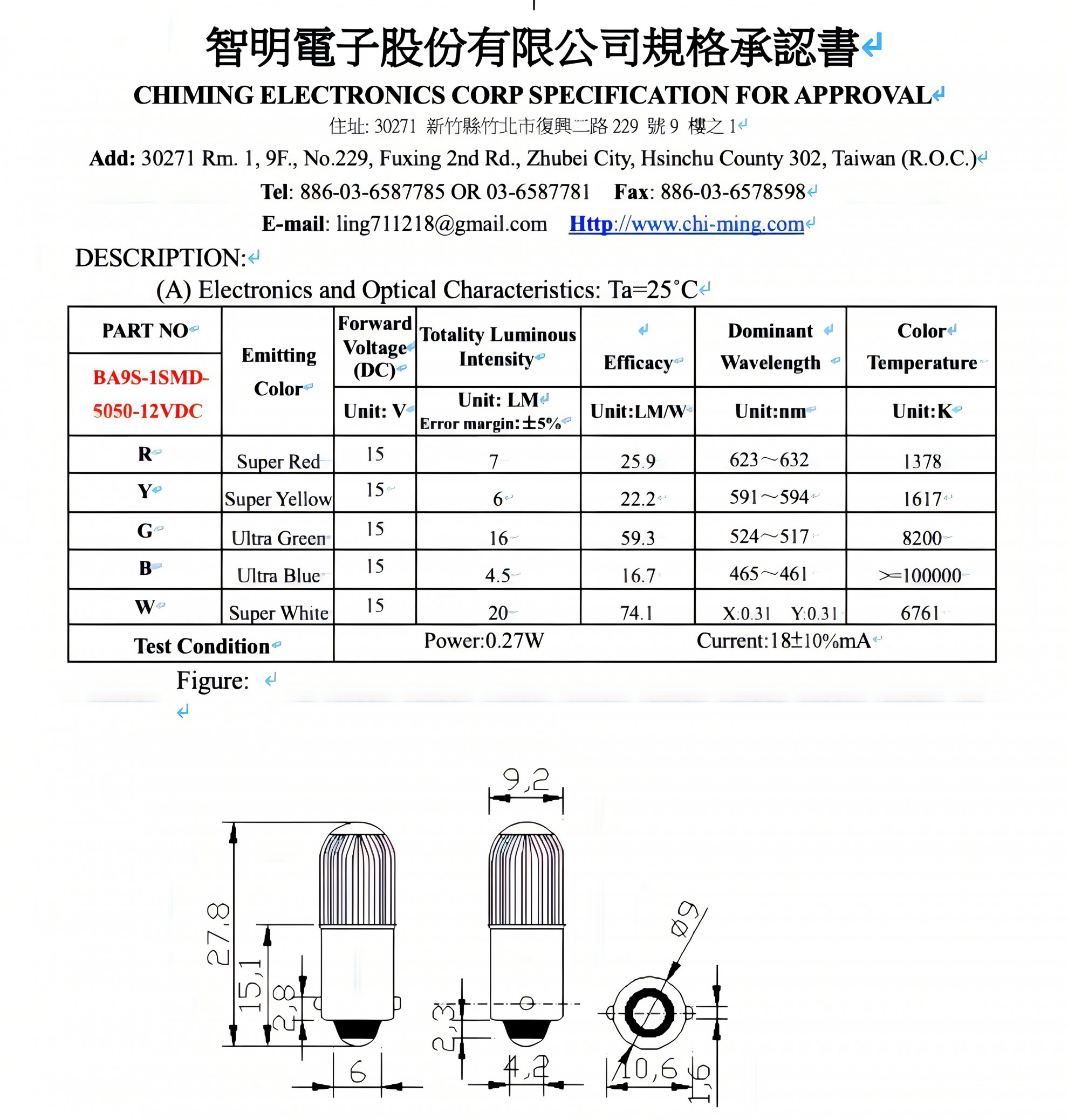

⚙️ Technical Specifications

• LED Type: 1 × SMD5050
• Power Consumption: 0.2W
• Beam Angle: 120°
• Dimensions: L28 mm × W10 mm
• Base Type: BA9S
• Housing: PC Plastic
• Voltage: 6V–220V DC / AC

🎯 Applications

Optimized for:

• Switch indicator lights
• Instrument panel indicators
• Industrial control panels
• Machinery status indication
• Electrical / distribution panels
• Automotive & truck signal systems

⚠️ Important Notes

Note 1

Please confirm the correct model and dimensions before installation.

Note 2

Ensure the applied voltage matches the product specification.
Overvoltage may cause damage or failure of the LED.

The voltage rating is marked on the base—please verify before use.
