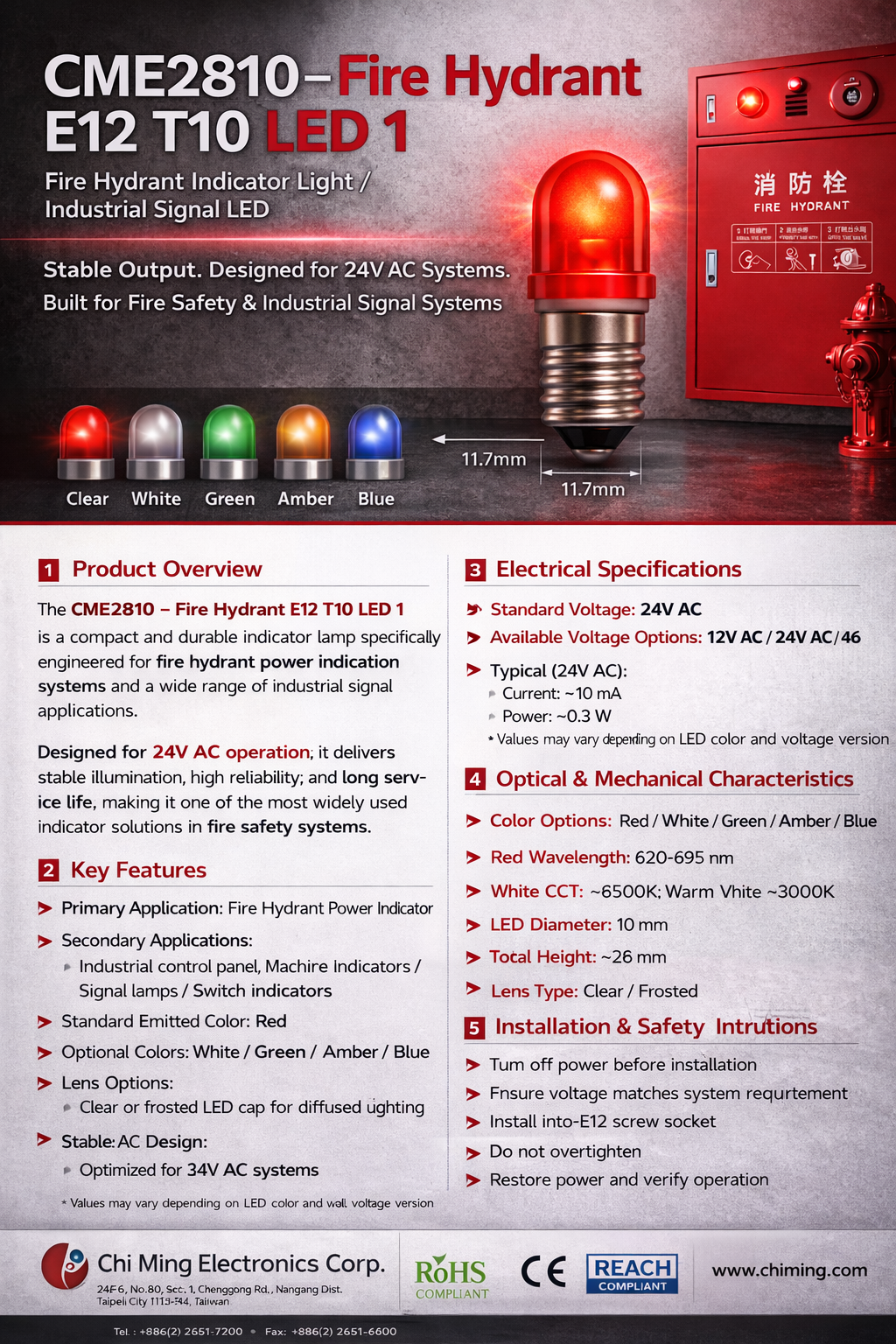

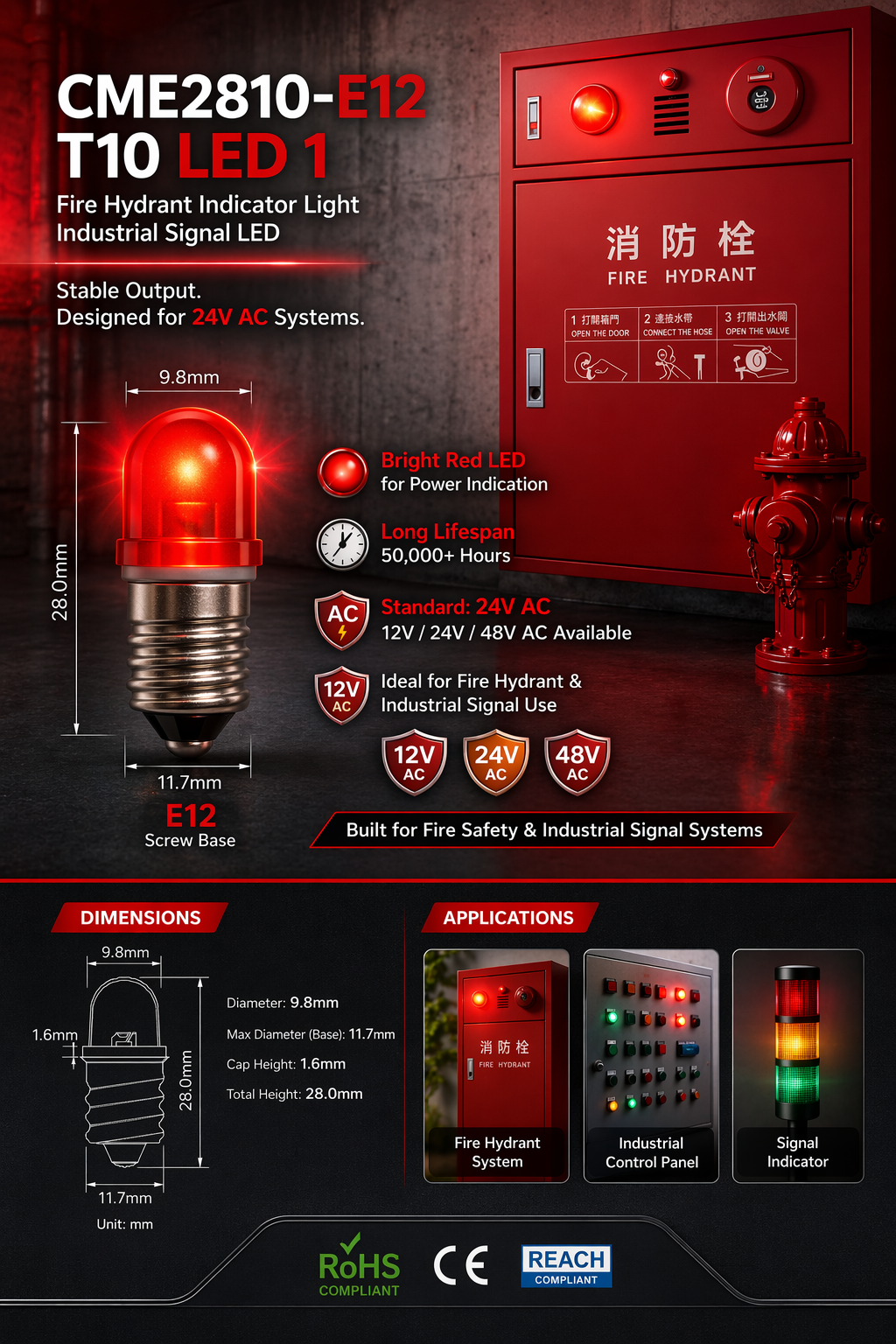

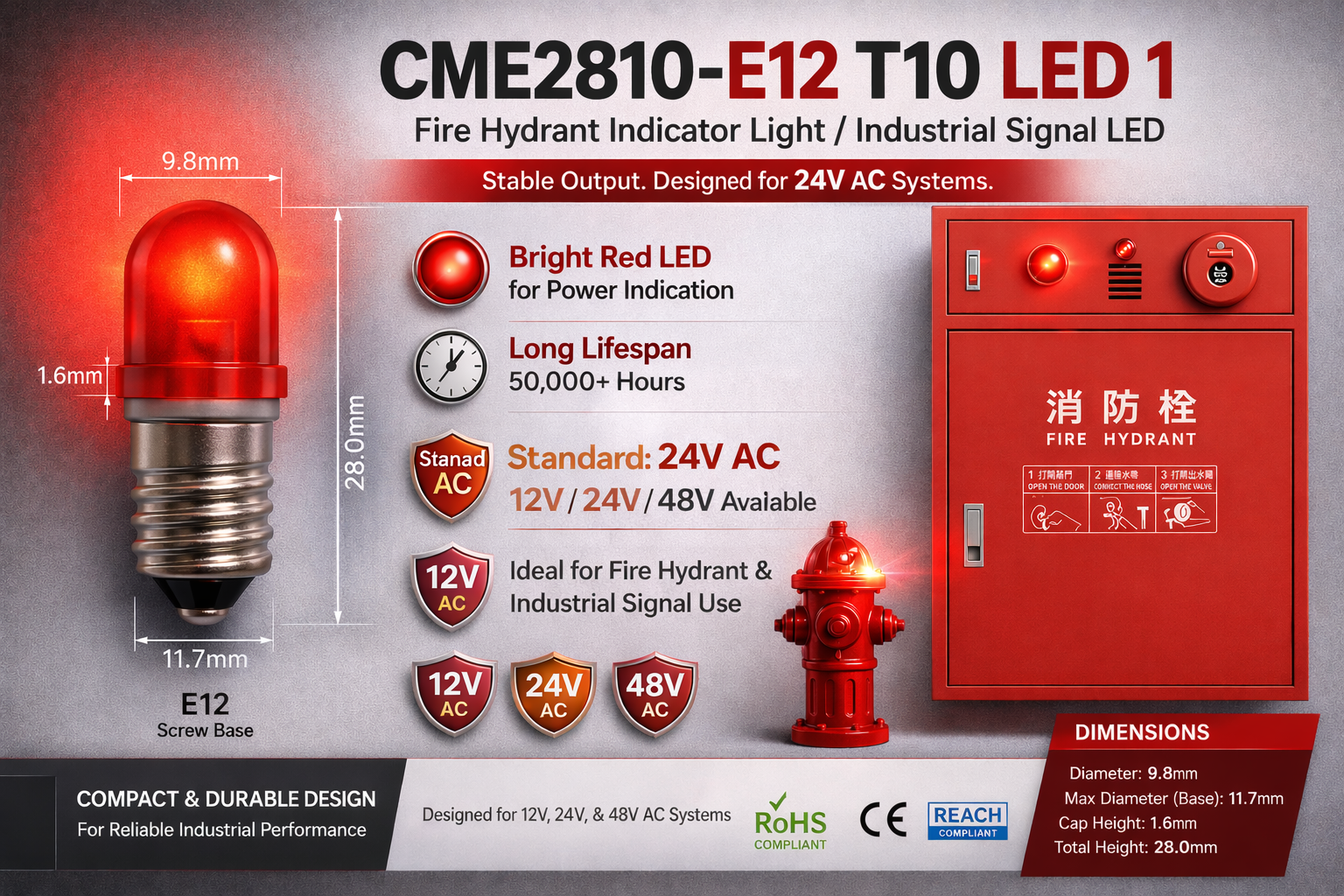

🔧 CME2810 – Fire Hydrant E12 T10 LED 1

Fire Hydrant Indicator Light / Industrial Signal LED

1. Product Overview

The CME2810 – Fire Hydrant E12 T10 LED 1 is a compact and durable indicator lamp specifically engineered for fire hydrant power indication systems and a wide range of industrial signal applications.

Designed for 24V AC operation, it delivers stable illumination, high reliability, and long service life, making it one of the most widely used indicator solutions in fire safety systems.

2. Key Features

• 🔴 Primary Application: Fire Hydrant Power Indicator Light
• ⚙️ Secondary Applications:
  Industrial control panels / Machine indicators / Signal lamps / Switch indicators
• 💡 Standard Emitted Color: Red
• 🌈 Optional Colors: White / Green / Amber / Blue
• 🌫 Lens Options:
  Clear or frosted LED cap for diffused lighting
• ⚡ Stable AC Design:
  Optimized for 24V AC systems
• 🔩 E12 Screw Base:
  Easy installation & direct replacement
• ⏳ Long Lifespan:
  50,000+ hours

👉 One of the best-selling solutions for fire hydrant indicator applications

3. Electrical Specifications

• Standard Voltage: 24V AC
• Available Voltage Options: 12V AC / 24V AC / 48V AC
• Typical (24V AC):
  Current: ~10 mA
  Power: ~0.3 W
• Values may vary depending on LED color and voltage version

4. Optical & Mechanical Characteristics

• Color Options:
  Red / White / Green / Amber / Blue
• Red Wavelength: 620–635 nm
• White CCT: ~6500K
• Warm White (optional): ~3000K
• LED Diameter: 10 mm
• Total Height: ~28 mm
• Lens Type: Clear / Frosted
• Operating Temperature:
  –40°C to +70°C

5. Installation & Safety Instructions

• Turn off power before installation
• Ensure voltage matches system requirement
• Install into E12 screw socket
• Do not overtighten
• Restore power and verify operation
• Avoid high-moisture environments unless sealed
• Do not disassemble during operation

6. Maintenance, Storage & Warranty

• Maintenance-free (solid-state LED design)
• Replace with same model & voltage if needed
• Clean with dry cloth only
• Storage Temperature: –40°C to +70°C
• Service Life: 50,000+ hours

💥 Engineering Positioning

👉 Stable Output. Designed for 24V AC Systems.
👉 Built for Fire Safety & Industrial Signal Systems
