L.E.D. CMB2527-S25 1156 S.M.D 4
L.E.D. CMB2527-S25 1156 S.M.D 4

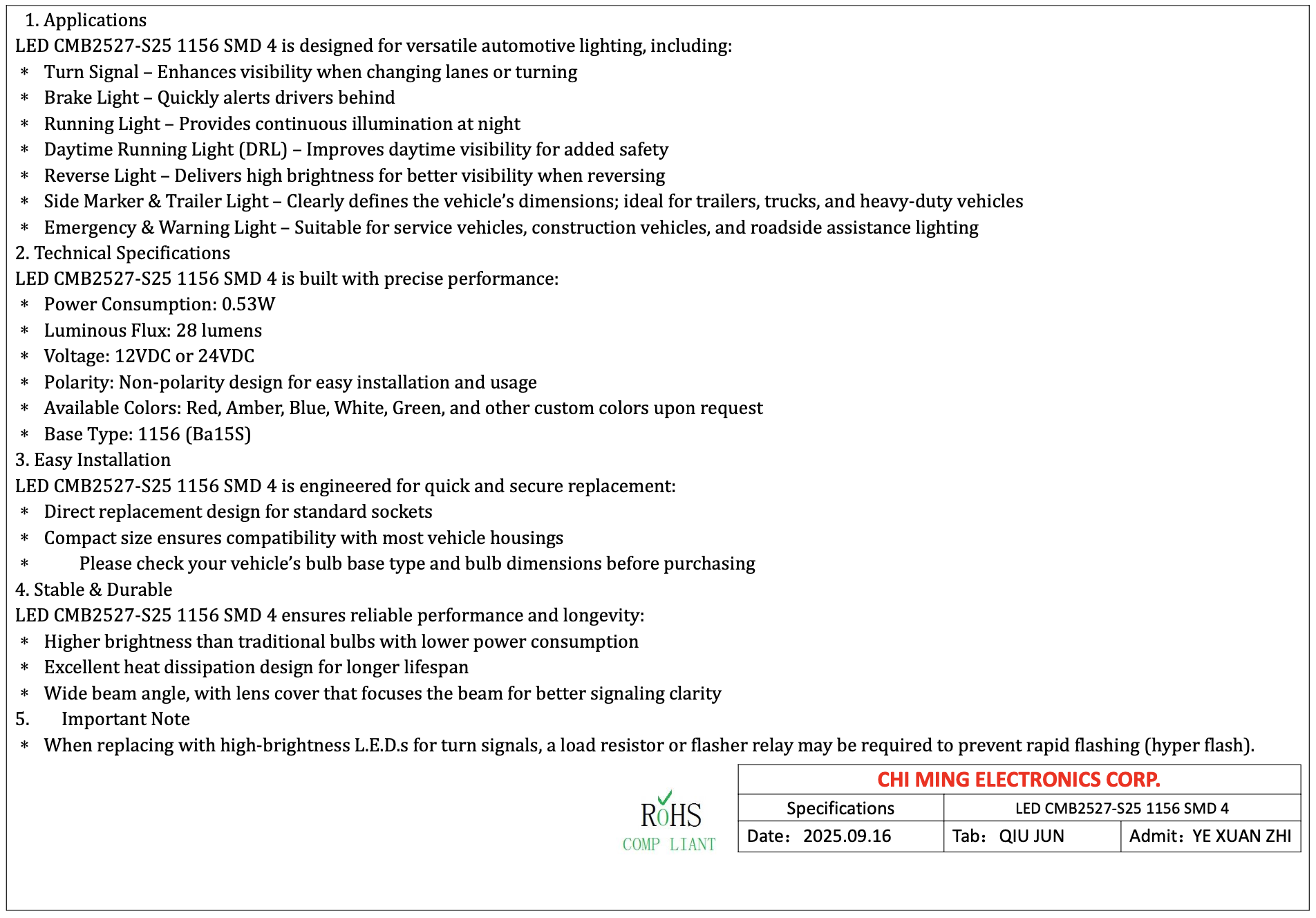

1. Applications
L.E.D. CMB2527-S25 1156 S.M.D 4 is designed for versatile automotive lighting, including:
＊ Turn Signal – Enhances visibility when changing lanes or turning
＊ Brake Light – Quickly alerts drivers behind
＊ Running Light – Provides continuous illumination at night
＊ Daytime Running Light (DRL) – Improves daytime visibility for added safety
＊ Reverse Light – Delivers high brightness for better visibility when reversing
＊ Side Marker & Trailer Light – Clearly defines the vehicle’s dimensions; ideal for trailers, trucks, and heavy-duty vehicles
＊ Emergency & Warning Light – Suitable for service vehicles, construction vehicles, and roadside assistance lighting

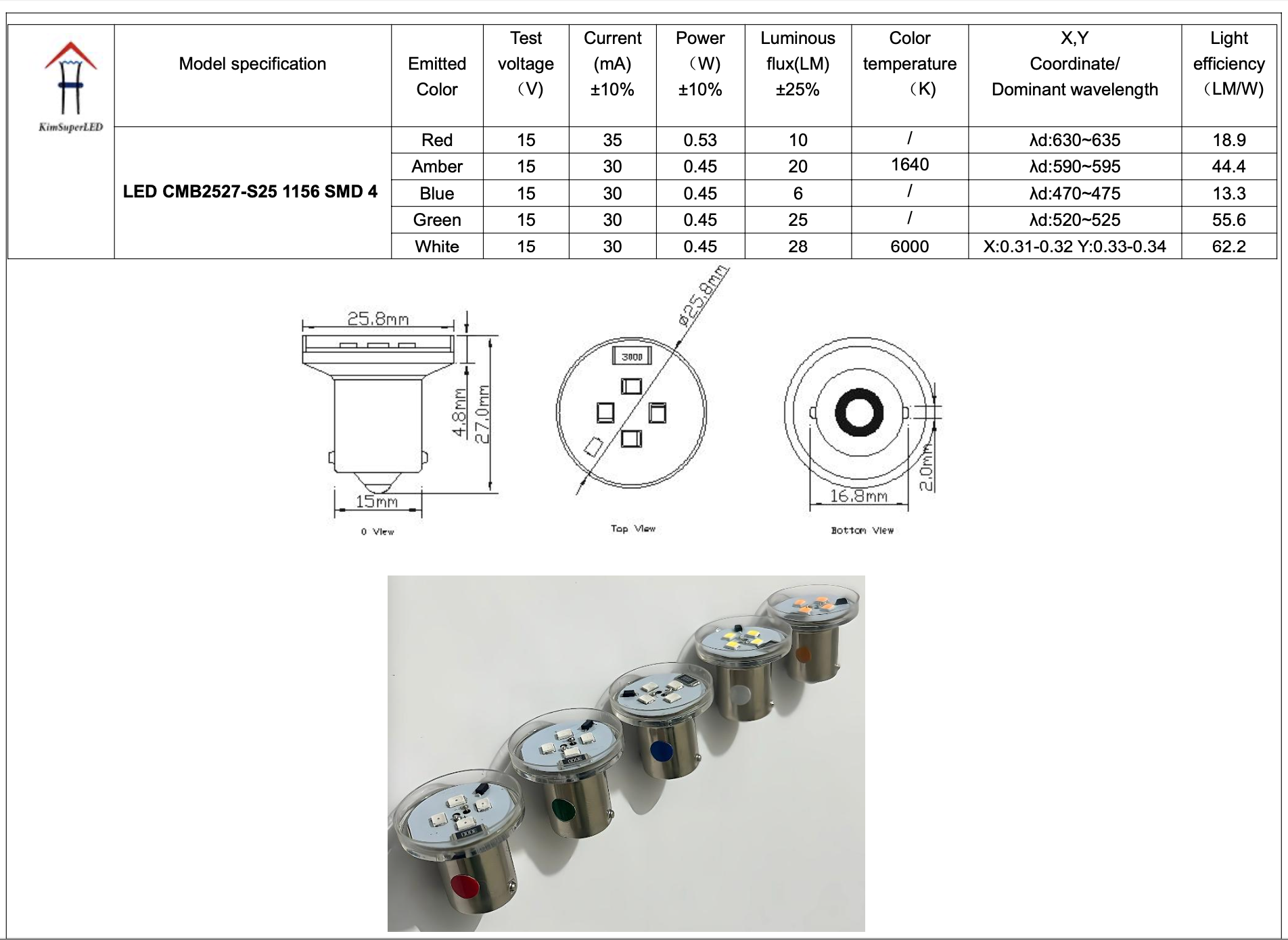

2. Technical Specifications
The L.E.D. CMB2527-S25 1156 S.M.D 4 is built with precise performance:
＊ Power Consumption: 0.53W
＊ Luminous Flux: 28 lumens
＊ Voltage: 12VDC or 24VDC
＊ Polarity: Non-polarity design for easy installation and usage
＊ Available Colors: Red, Amber, Blue, White, Green, and other custom colors upon request
＊ Base Type: 1156 (Ba15S)
3. Easy Installation
L.E.D. CMB2527-S25 1156 S.M.D 4 is engineered for quick and secure replacement:
＊ Direct replacement design for standard sockets
＊ Compact size ensures compatibility with most vehicle housings
＊ ⚠️ Please check your vehicle’s bulb base type and bulb dimensions before purchasing
4. Stable & Durable
L.E.D. CMB2527-S25 1156 S.M.D 4 ensures reliable performance and longevity:
＊ Higher brightness than traditional bulbs with lower power consumption
＊ Excellent heat dissipation design for longer lifespan
＊ Wide beam angle, with lens cover that focuses the beam for better signaling clarity
5. 🔔 Important Note
＊ When replacing with high-brightness L.E.D.s for turn signals, a load resistor or flasher relay may be required to prevent rapid flashing (hyper flash).
