CME2810-E12 T10 L.E.D. 1

                  CME2810-E12 T10 L.E.D. 1



CME2810-E12 T10 L.E.D. 1

Fire Hydrant Indicator Light / Industrial Signal L.E.D.

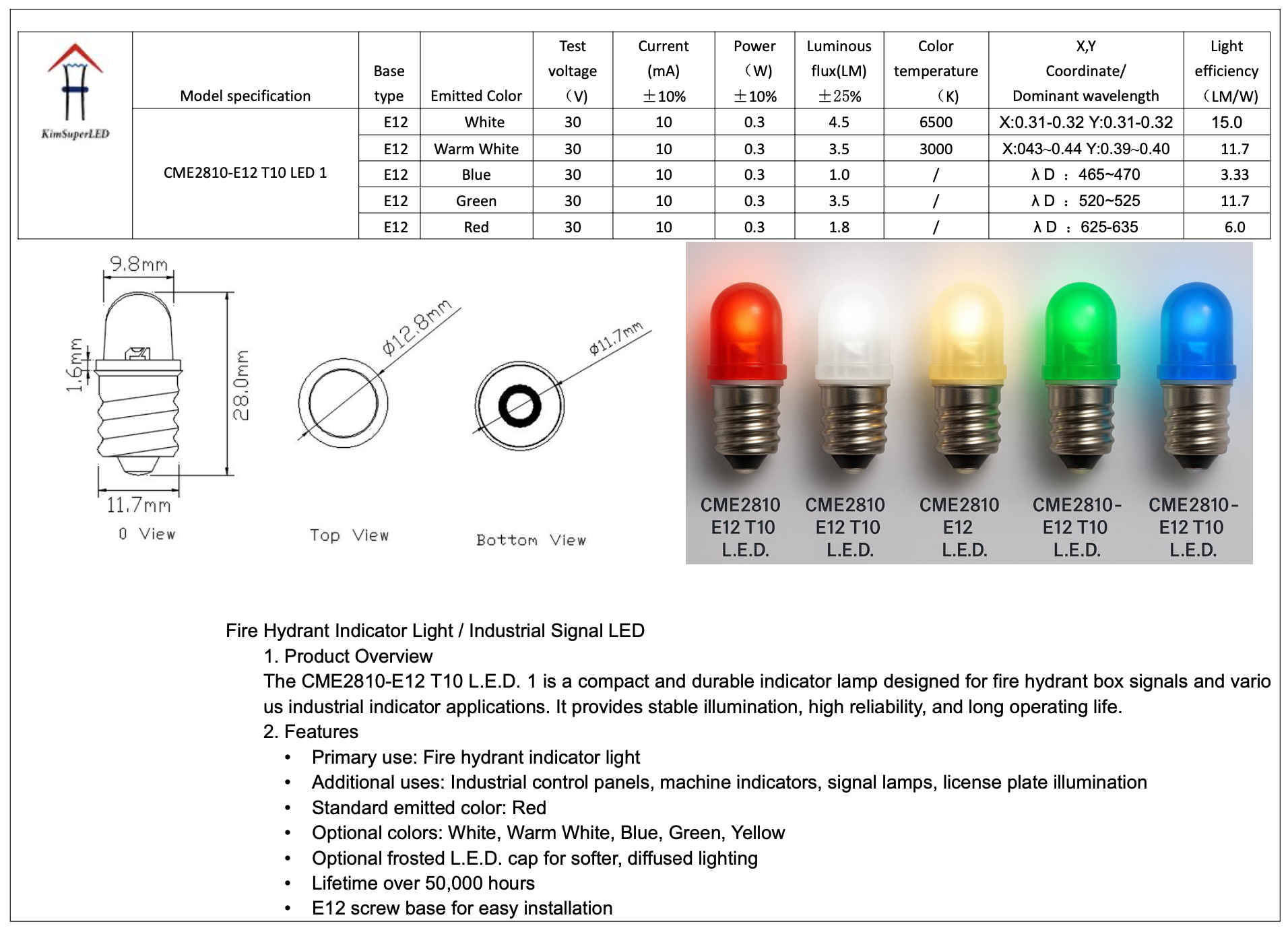

1. Product Overview

The CME2810-E12 T10 L.E.D. 1 is a compact and durable indicator lamp designed for fire hydrant box signals and various industrial indicator applications. It provides stable illumination, high reliability, and long operating life.

2. Features

  • Primary use: Fire hydrant indicator light
  • Additional uses: Industrial control panels, machine indicators, signal lamps, license plate illumination
  • Standard emitted color: Red
  • Optional colors: White, Warm White, Blue, Green, Yellow
  • Optional frosted L.E.D. cap for softer, diffused lighting
  • Lifetime over 50,000 hours
  • E12 screw base for easy installation

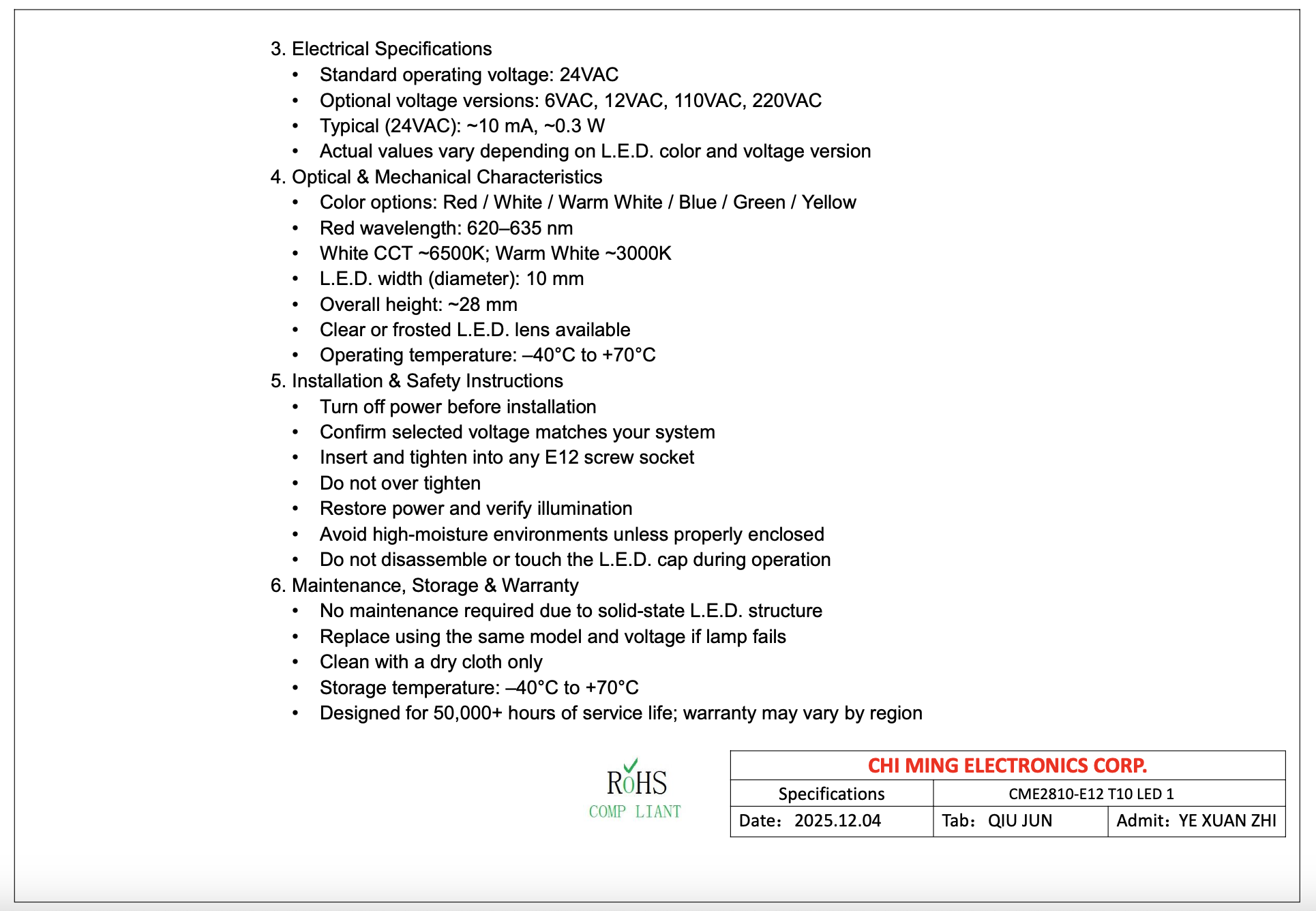

3. Electrical Specifications

  • Standard operating voltage: 24VAC
  • Optional voltage versions: 6VAC, 12VAC, 110VAC, 220VAC
  • Typical (24VAC): ~10 mA, ~0.3 W
  • Actual values vary depending on L.E.D. color and voltage version

4. Optical & Mechanical Characteristics

  • Color options: Red / White / Warm White / Blue / Green / Yellow
  • Red wavelength: 620–635 nm
  • White CCT ~6500K; Warm White ~3000K
  • L.E.D. width (diameter): 10 mm
  • Overall height: ~28 mm
  • Clear or frosted L.E.D. lens available
  • Operating temperature: –40°C to +70°C

5. Installation & Safety Instructions

  • Turn off power before installation
  • Confirm selected voltage matches your system
  • Insert and tighten into any E12 screw socket
  • Do not over tighten
  • Restore power and verify illumination
  • Avoid high-moisture environments unless properly enclosed
  • Do not disassemble or touch the L.E.D. cap during operation

6. Maintenance, Storage & Warranty

  • No maintenance required due to solid-state L.E.D. structure
  • Replace using the same model and voltage if lamp fails
  • Clean with a dry cloth only
  • Storage temperature: –40°C to +70°C
  • Designed for 50,000+ hours of service life.
