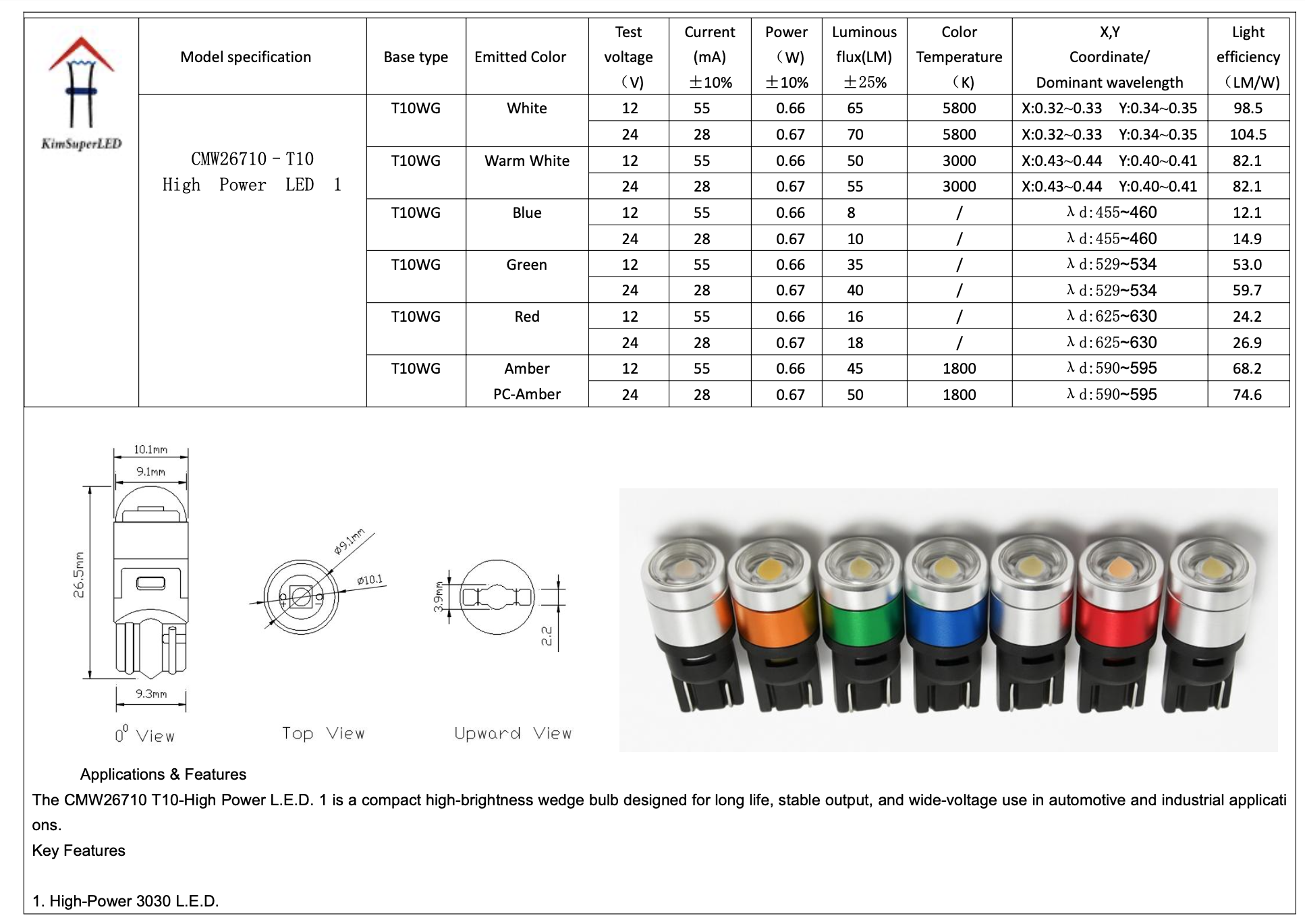

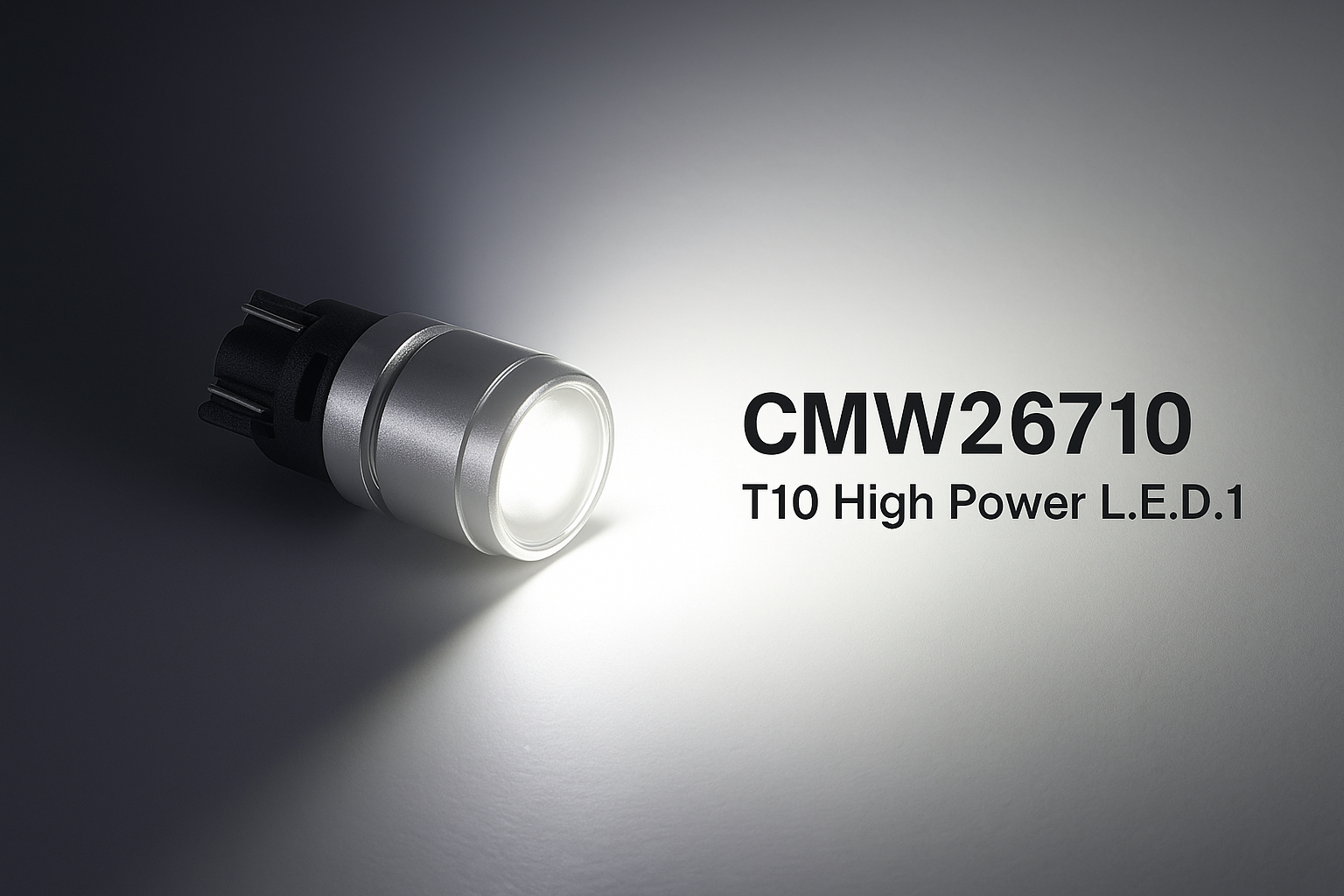

CMW26710 – T10 High Power L.E.D. 1
CMW26710 – T10 High Power L.E.D. 1
Applications & Features
The CMW26710 T10-High Power L.E.D. 1 is a compact high-brightness wedge bulb designed for long life, stable output, and wide-voltage use in automotive and industrial applications.
Key Features

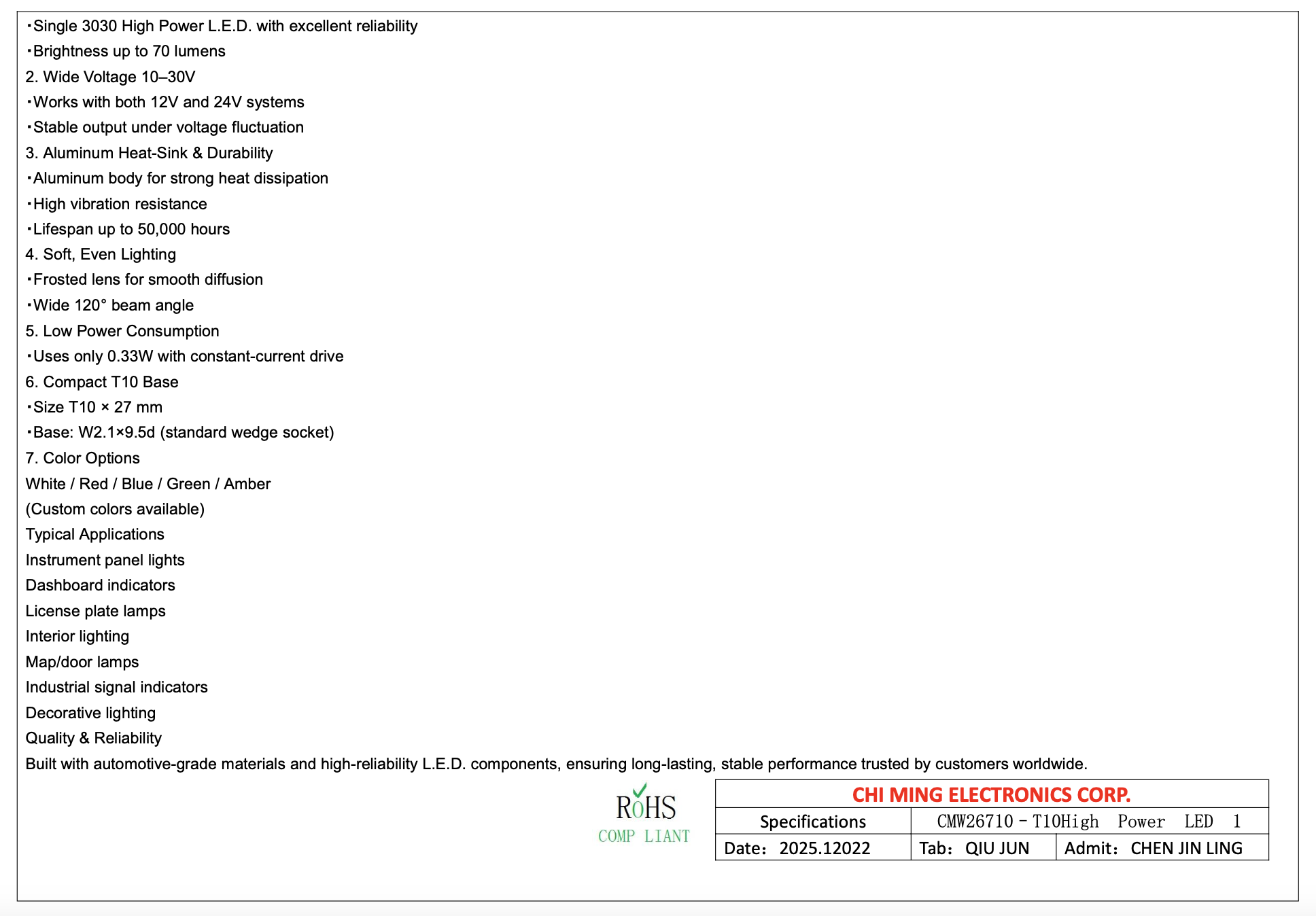

1. High-Power 3030 L.E.D.
・Single 3030 High Power L.E.D. with excellent reliability
・Brightness up to 70 lumens
2. Wide Voltage 10–30V
・Works with both 12V and 24V systems
・Stable output under voltage fluctuation
3. Aluminum Heat-Sink & Durability
・Aluminum body for strong heat dissipation
・High vibration resistance
・Lifespan up to 50,000 hours
4. Soft, Even Lighting
・Frosted lens for smooth diffusion
・Wide 120° beam angle
5. Low Power Consumption
・Uses only 0.33W with constant-current drive
6. Compact T10 Base
・Size T10 × 27 mm
・Base: W2.1×9.5d (standard wedge socket)

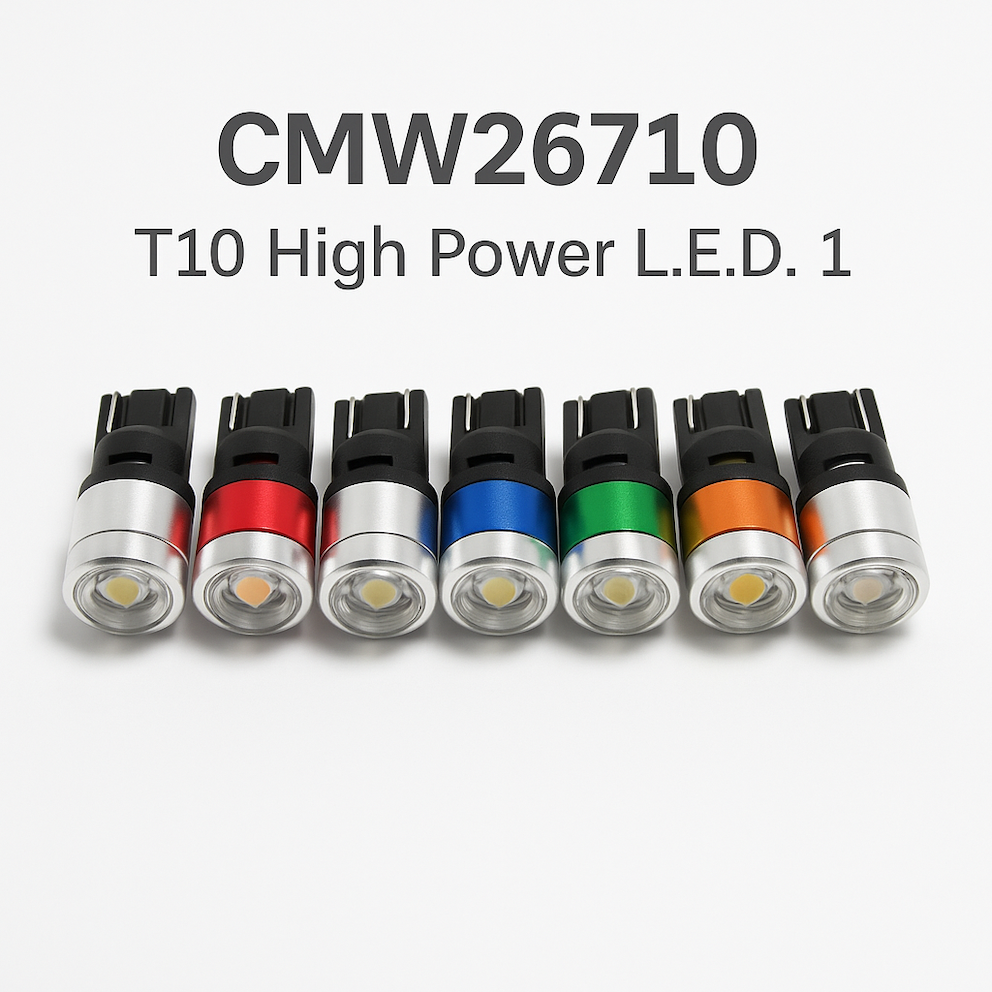

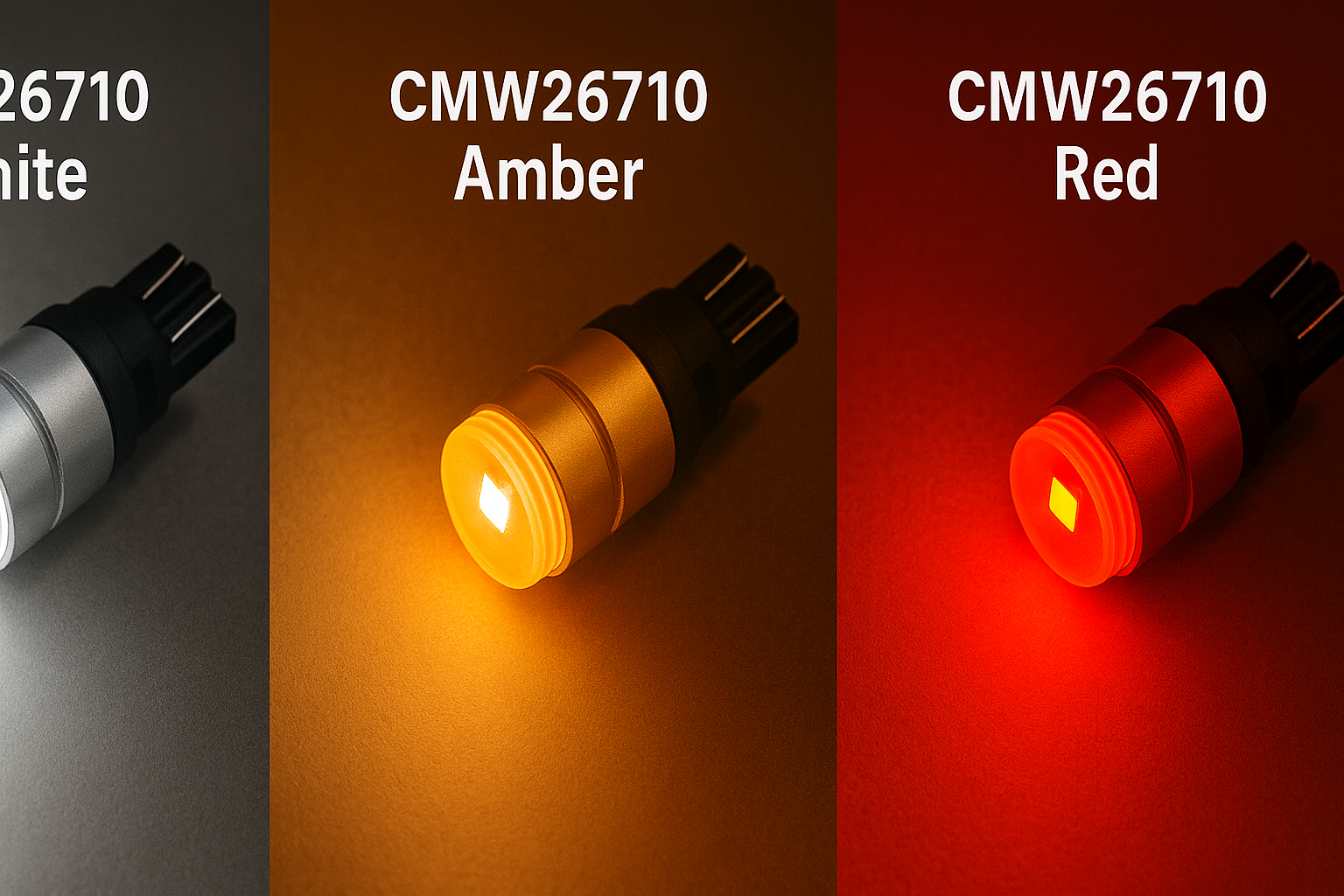

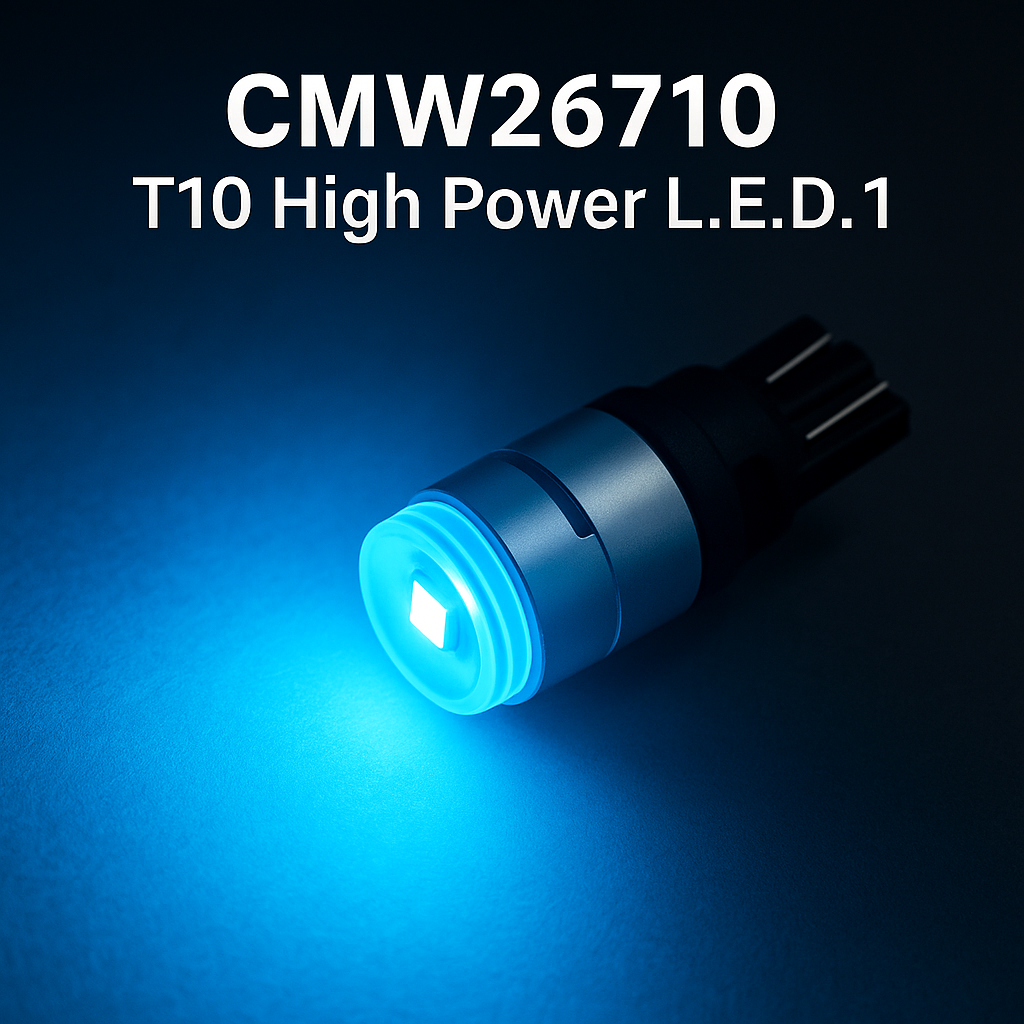

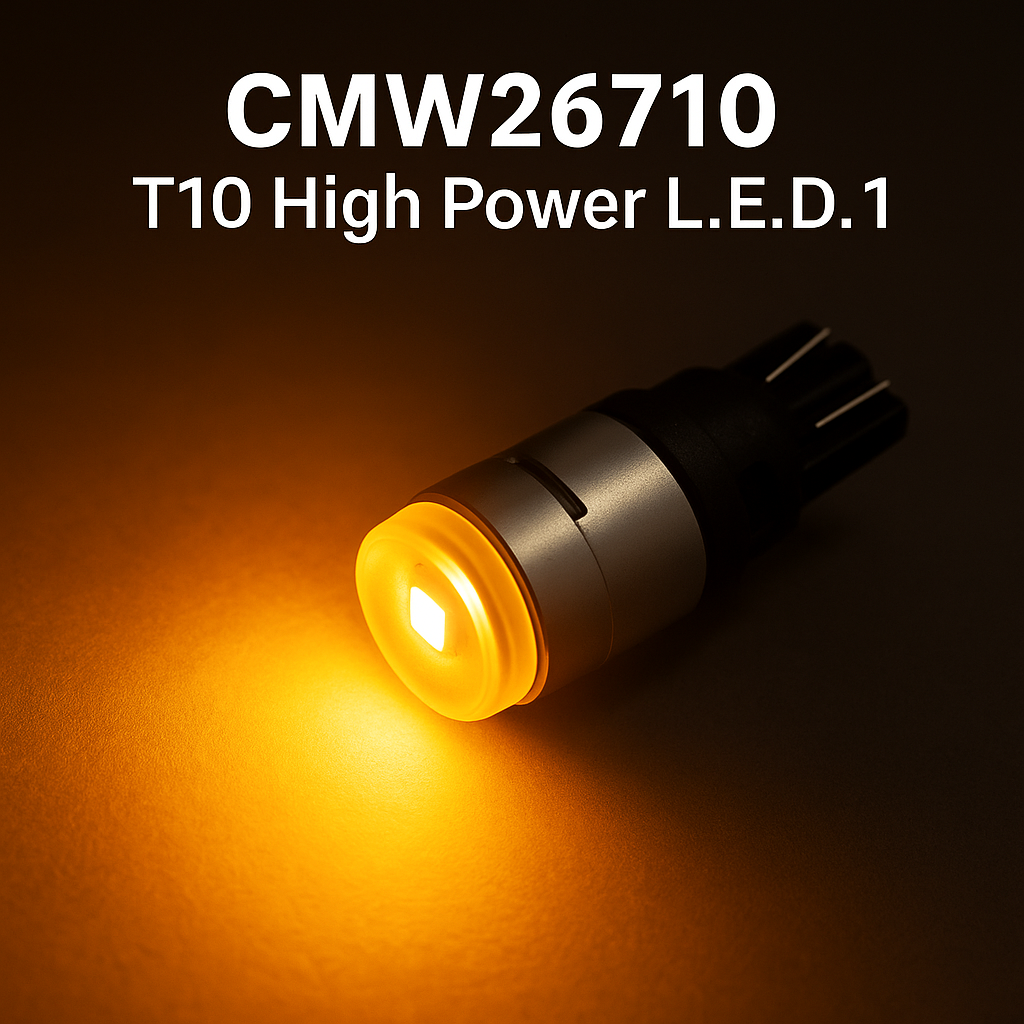

7. Color Options
White / Red / Blue / Green / Amber
(Custom colors available)
Typical Applications
Instrument panel lights
Dashboard indicators
License plate lamps
Interior lighting
Map/door lamps
Industrial signal indicators
Decorative lighting
Quality & Reliability
Built with automotive-grade materials and high-reliability L.E.D. components, ensuring long-lasting, stable performance trusted by customers worldwide.
