LED CMS8008-COB Soft Strip Light

                            LED CMS8008-COB Soft Strip Light
                                Flexible COB LED Strip



LED CMS8008-COB Soft Strip Light

📄 Product Overview

  1. Power Supply: 12VDC or 24VDC (please specify when ordering)
  2. COB Technology: Flip-chip reflow soldering for enhanced heat resistance and durability
  3. Beam Angle: 180° wide-angle illumination for uniform light distribution
  4. PCB Design: Double-layer copper PCB ensures excellent current flow and heat dissipation
  5. Waterproof Rating: IP67 rated for outdoor or rugged vehicle applications
  6. Mounting: Equipped with premium 3M double-sided adhesive backing for easy installation
  7. Advanced Encapsulation: Special phosphor-infused silicone gel ensures superior waterproof protection
  8. Strict Process Control: Each product undergoes strict quality control for stability and consistency
  9. Competitive Advantage: A new-generation flexible strip light with excellent performance, flexibility, and long lifespan

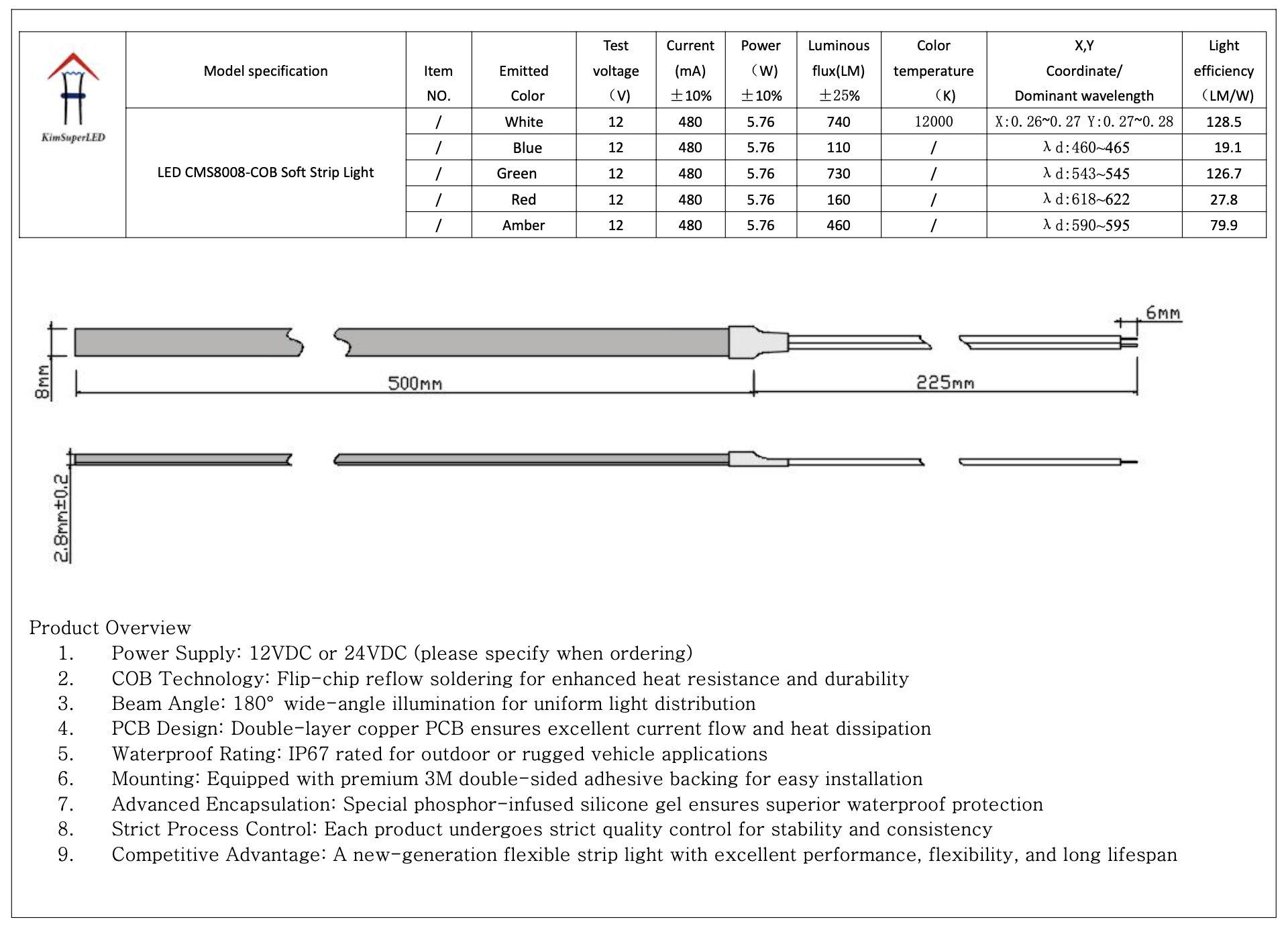

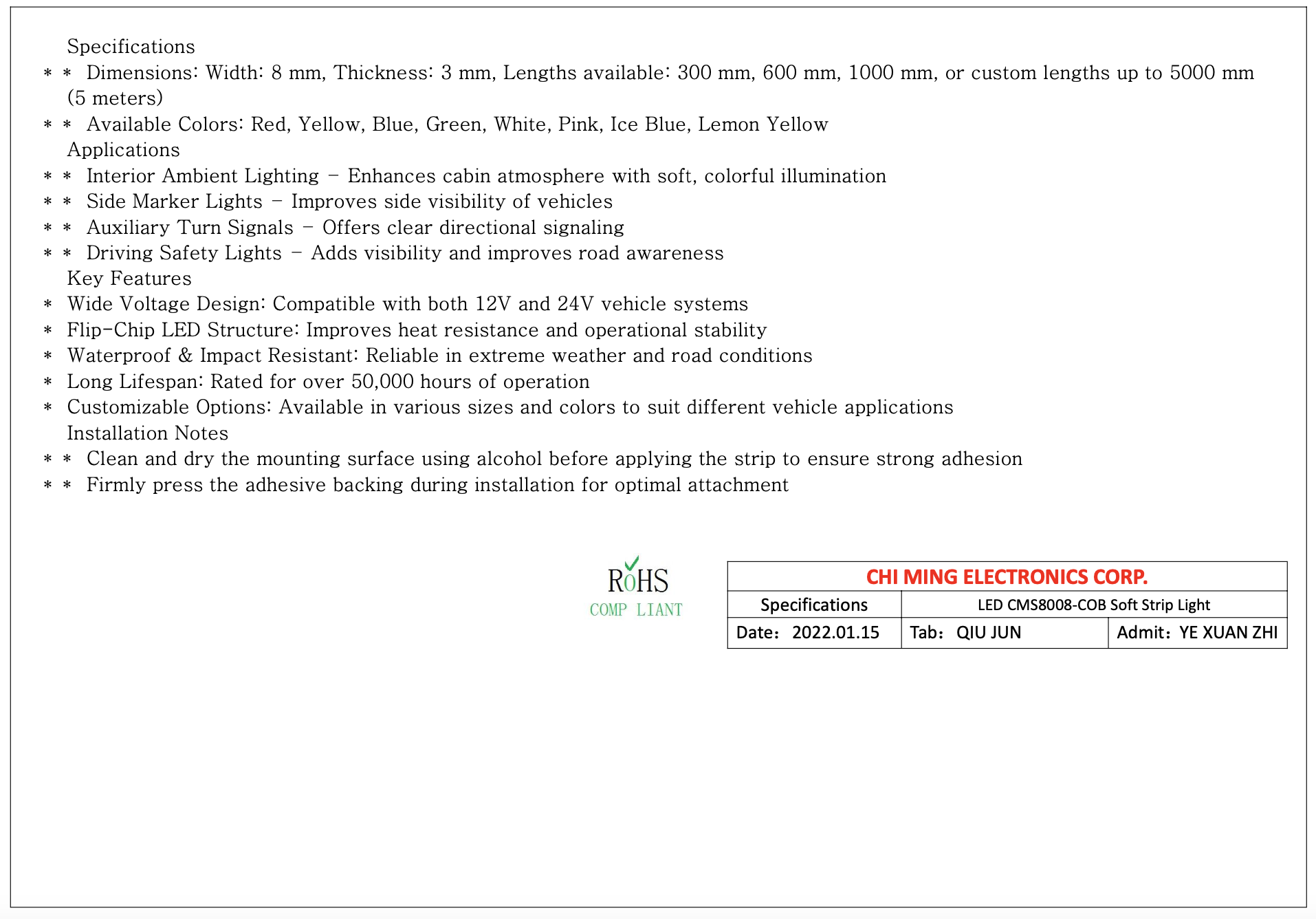

📐 Specifications
＊＊ Dimensions: Width: 8 mm, Thickness: 3 mm, Lengths available: 300 mm, 600 mm, 1000 mm, or custom lengths up to 5000 mm (5 meters)

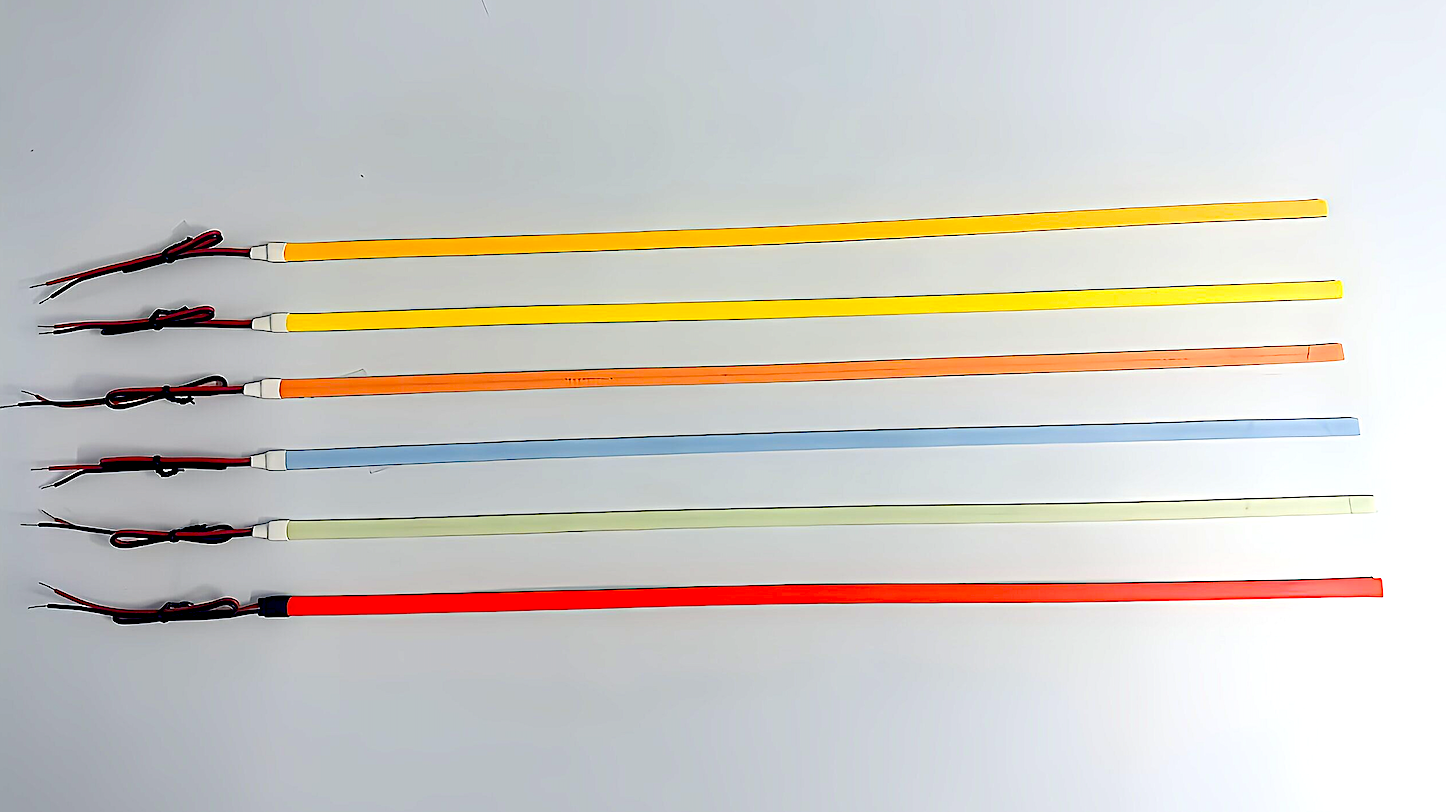

＊＊ Available Colors: Red, Yellow, Blue, Green, White, Pink, Ice Blue, Lemon Yellow

🔧 Applications
＊＊ Interior Ambient Lighting – Enhances cabin atmosphere with soft, colorful illumination
＊＊ Side Marker Lights – Improves side visibility of vehicles
＊＊ Auxiliary Turn Signals – Offers clear directional signaling
＊＊ Driving Safety Lights – Adds visibility and improves road awareness

💡 Key Features
＊ Wide Voltage Design: Compatible with both 12V and 24V vehicle systems
＊ Flip-Chip LED Structure: Improves heat resistance and operational stability
＊ Waterproof & Impact Resistant: Reliable in extreme weather and road conditions
＊ Long Lifespan: Rated for over 50,000 hours of operation
＊ Customizable Options: Available in various sizes and colors to suit different vehicle applications

📌 Installation Notes
＊＊ Clean and dry the mounting surface using alcohol before applying the strip to ensure strong adhesion
＊＊ Firmly press the adhesive backing during installation for optimal attachment
