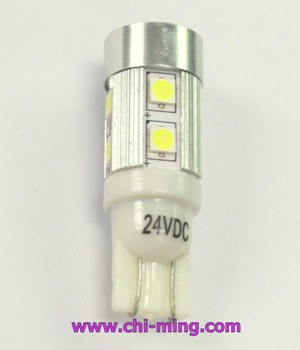

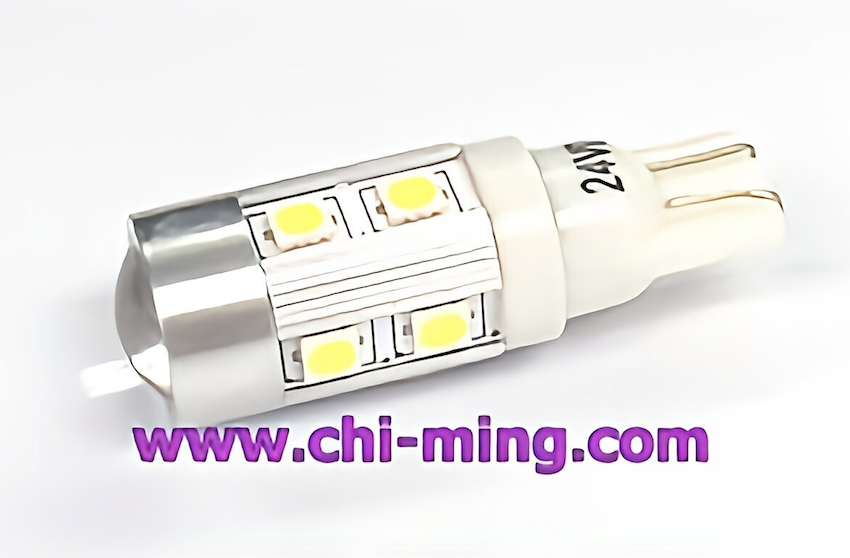

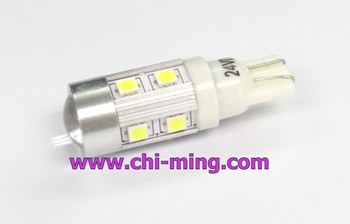

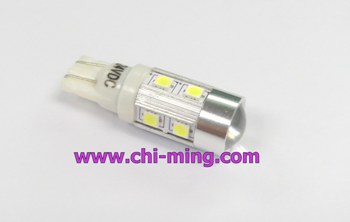

LED CMW3612 T10-Wedge HP LED 9

1. LED Miniature Lamp

• Suitable for car and truck LED lighting, including:
  • Vehicle rear lights
  • Position lights
  • Reading lights
  • Side lights

2. Design Features

• Designed with a T10 Wedge Base and HP LED 9, ensuring compatibility with various vehicle and industrial lighting applications.

3. High Compatibility & Non-Polarity Design

• The CMW3612 LED bulb features a T10 Wedge Base, designed to be non-polar for 12V and 24V AC applications.
• Allows for easy installation regardless of polarity, making it a versatile solution for multiple lighting systems.

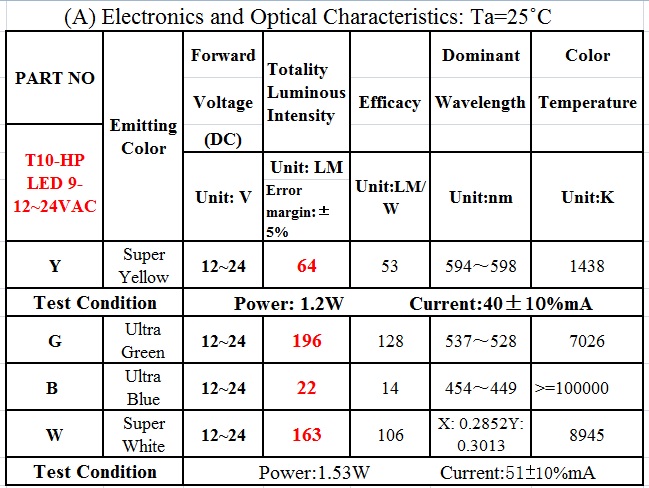

4. High Power & Efficiency

• Equipped with 9 High Power LEDs.
• Single bulb power consumption: 1.53W, providing enhanced brightness while maintaining energy efficiency.
• Luminous flux reaches 163 lumens, improving visibility and lighting performance.

4. Enhanced Heat Dissipation

• Utilizes pure aluminum heat dissipation, which increases light efficiency and durability.

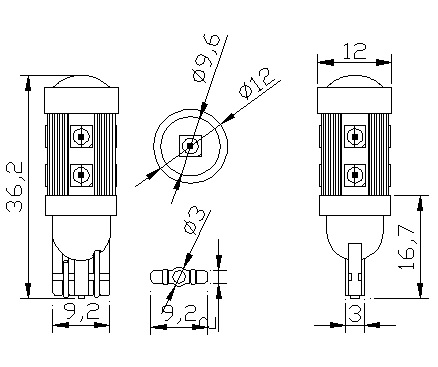

5. Dimensions

• Width: 12mm   Length: 36mm

6. Wide Voltage Input

• Supports 10~30V AC/DC, ensuring stable and reliable operation across various vehicle and industrial applications.
• The wide voltage design allows the bulb to adapt to fluctuating voltage conditions, enhancing durability and system compatibility.

7. Durable & Long Service Life

• Service life: 50,000 hours, significantly reducing maintenance and replacement costs.
• Manufactured using high-temperature solder paste and reflow welding technology, ensuring stable performance and long-lasting quality.

8. Voltage Precautions

• Before use, ensure the power supply voltage matches the LED bulb’s design voltage to prevent damage or burnout.
• Each LED bulb has a voltage value marked on the base for easy reference.

Easy Installation

• The base material is made of PC (Polycarbonate) for added durability.

Note: Please carefully check the bulb size and user manual before purchasing, or contact us for assistance.


Customizable Color Options

• The LED CMW3612 can be manufactured in various colors according to customer requirements, including:
  • Red,Amber,Blue,GreenAnd more...
