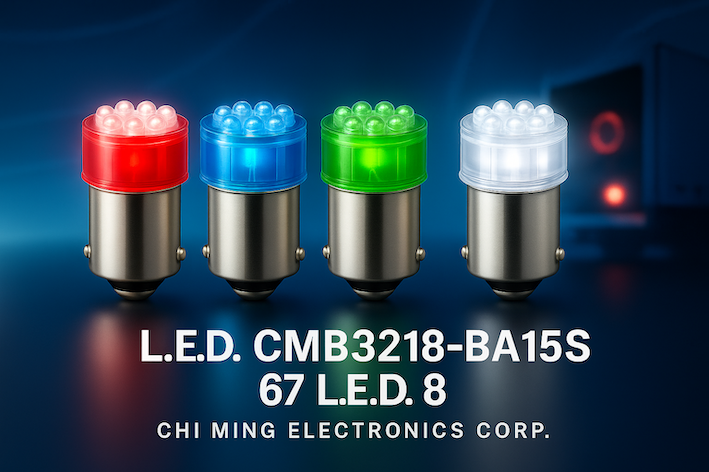

L.E.D. CMB3218-BA15S 67 L.E.D. 8
L.E.D. CMB3218-BA15S 67 L.E.D. 8
Product Features & Applications

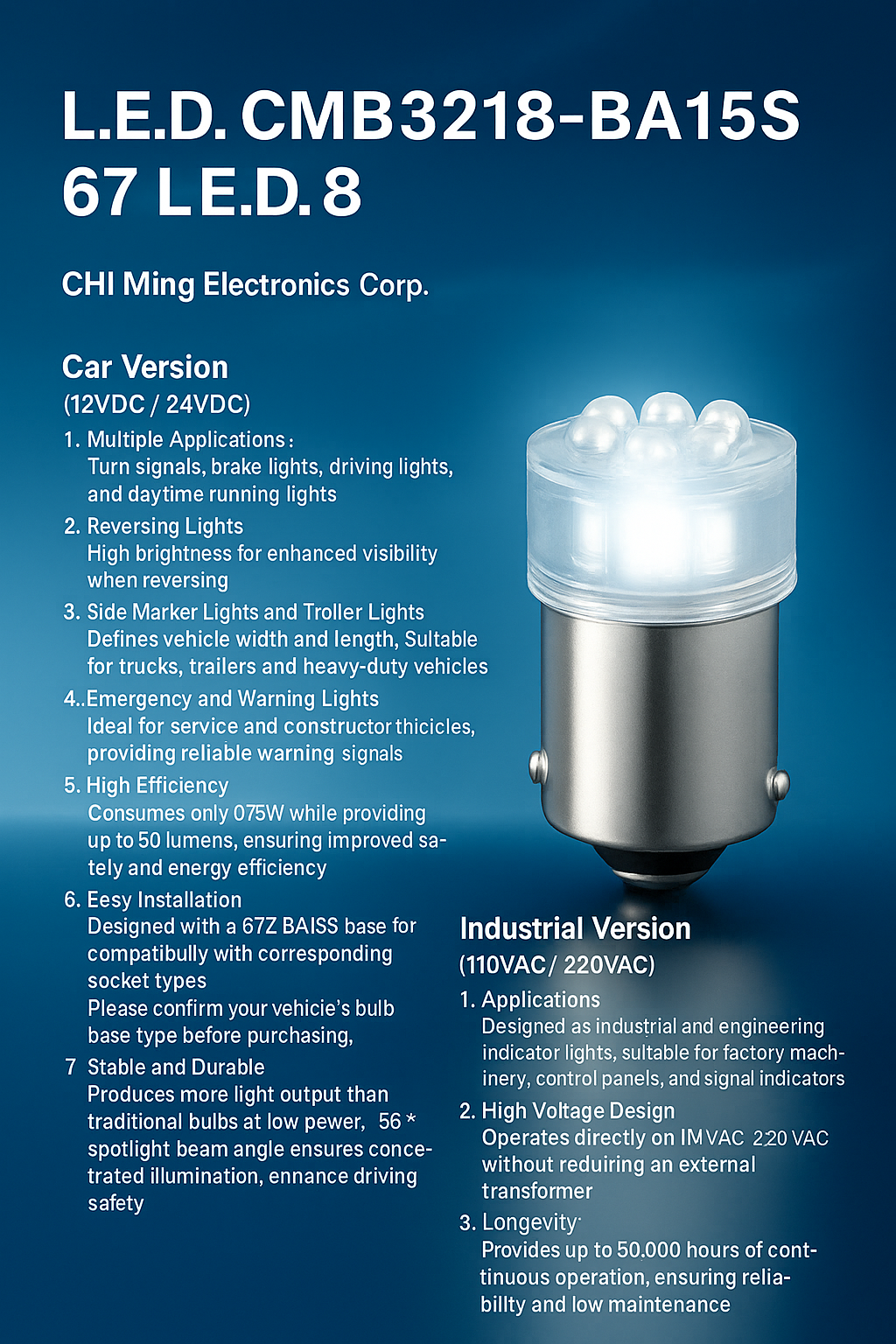

Car Version (12VDC / 24VDC)
1. Multiple Applications
The L.E.D. CMB3218-BA15S is designed for a wide range of automotive lighting needs.
- Turn Signal: Enhances side visibility when changing lanes or turning.
- Brake Light: The L.E.D. CMB3218-BA15S provides an instant and bright response to alert following vehicles.
- Running Light: Offers continuous illumination at night for improved driving visibility.
- Daytime Running Light (DRL): The L.E.D. CMB3218-BA15S increases daytime visibility and enhances driving safety.
2. Reverse Light
The L.E.D. CMB3218-BA15S outputs high brightness to illuminate the rear area, making reversing safer and more precise.
3. Side Marker & Trailer Light
Perfect for trucks, trailers, and heavy-duty vehicles.
The L.E.D. CMB3218-BA15S clearly defines vehicle width and length, enhancing road safety day and night.
4. Emergency & Warning Light
Suitable for service vehicles, tow trucks, and construction equipment.
The L.E.D. CMB3218-BA15S delivers reliable signaling for high-visibility warning applications.
5. High Efficiency
Despite using only 0.75W, the L.E.D. CMB3218-BA15S produces up to 50 lumens.
It significantly improves visibility while maintaining energy efficiency.
6. Easy Installation
Designed with a 67 Ba15S base, the L.E.D. CMB3218-BA15S ensures quick installation and compatibility with corresponding automotive lamp sockets.
Please confirm your vehicle’s bulb base type before installation.
7. Stable and Durable
The L.E.D. CMB3218-BA15S provides more light output compared to traditional bulbs at significantly lower power consumption.
The 30° focused beam delivers concentrated illumination and stable performance for safer driving.
Industrial Version (110VAC / 220VAC)
1. Applications
The L.E.D. CMB3218-BA15S Industrial Version is designed for machinery status indicators and control panel signals.
It is suitable for factories, engineering systems, industrial machinery, and general signal notification.
2. High-Voltage Design
The L.E.D. CMB3218-BA15S operates directly on 110VAC / 220VAC, eliminating the need for external transformers.
3. Long Lifespan
With up to 50,000 hours of life, the L.E.D. CMB3218-BA15S provides long-term stability and reduces maintenance costs.
4. Color Options
Available in Blue, Green, White, Warm White, Amber, Red, and customizable colors upon request—perfect for diversified industrial signaling.

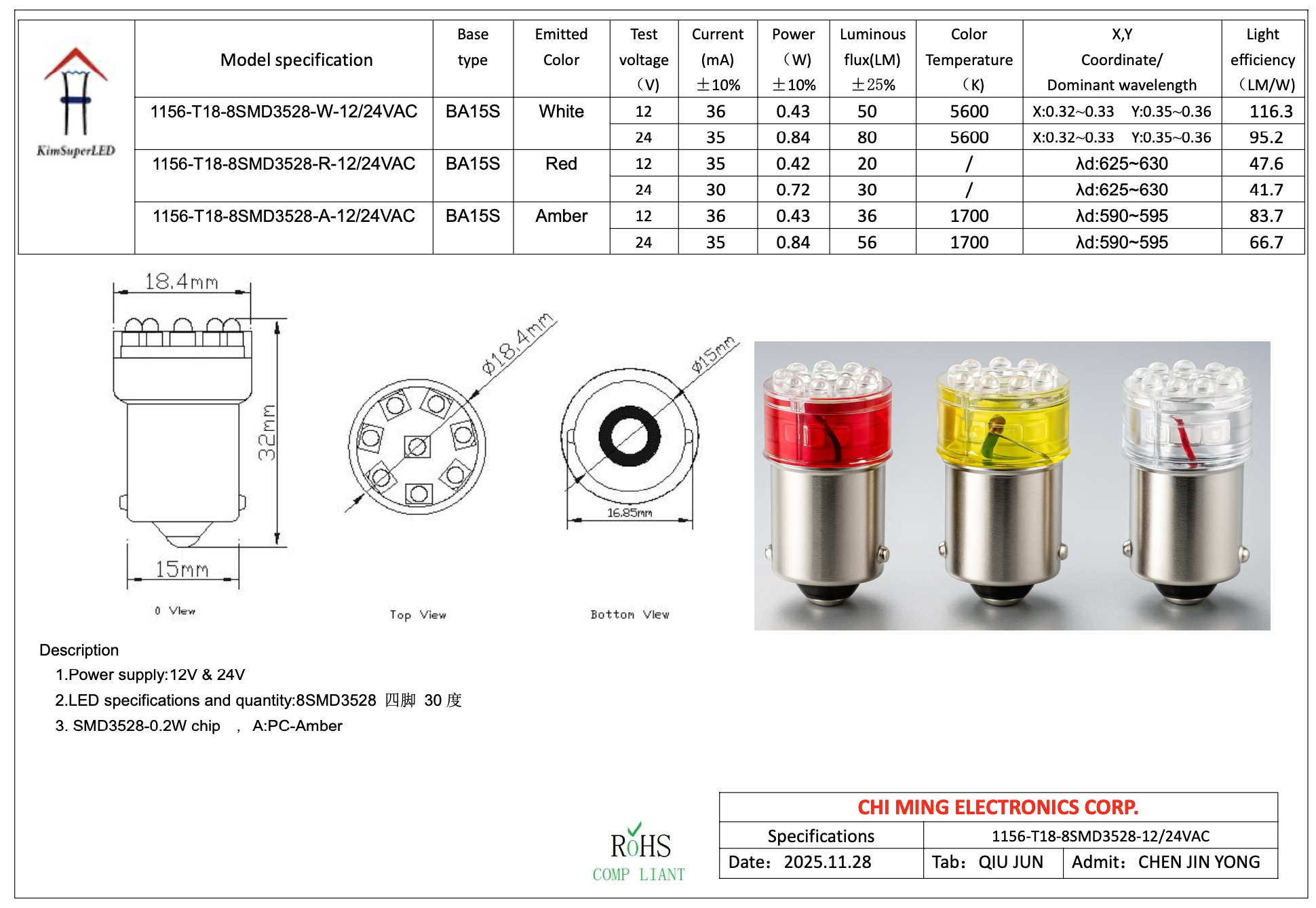

5. Technical Specifications
- Model: L.E.D. CMB3218-BA15S 67 L.E.D. 8
- Bulb Size: 18mm (W) × 37mm (L)
- Power Consumption: 0.75W
- Light Output: 50 lumens
- Beam Angle: 30° spotlight
- Light Source: High-brightness LED chips
- Lifespan: 50,000 hours
Important Note (Car Version)
When replacing turn signal bulbs with high-brightness LEDs like the L.E.D. CMB3218-BA15S, a load resistor or LED-compatible flasher relay may be required to prevent rapid blinking (hyper-flash).
