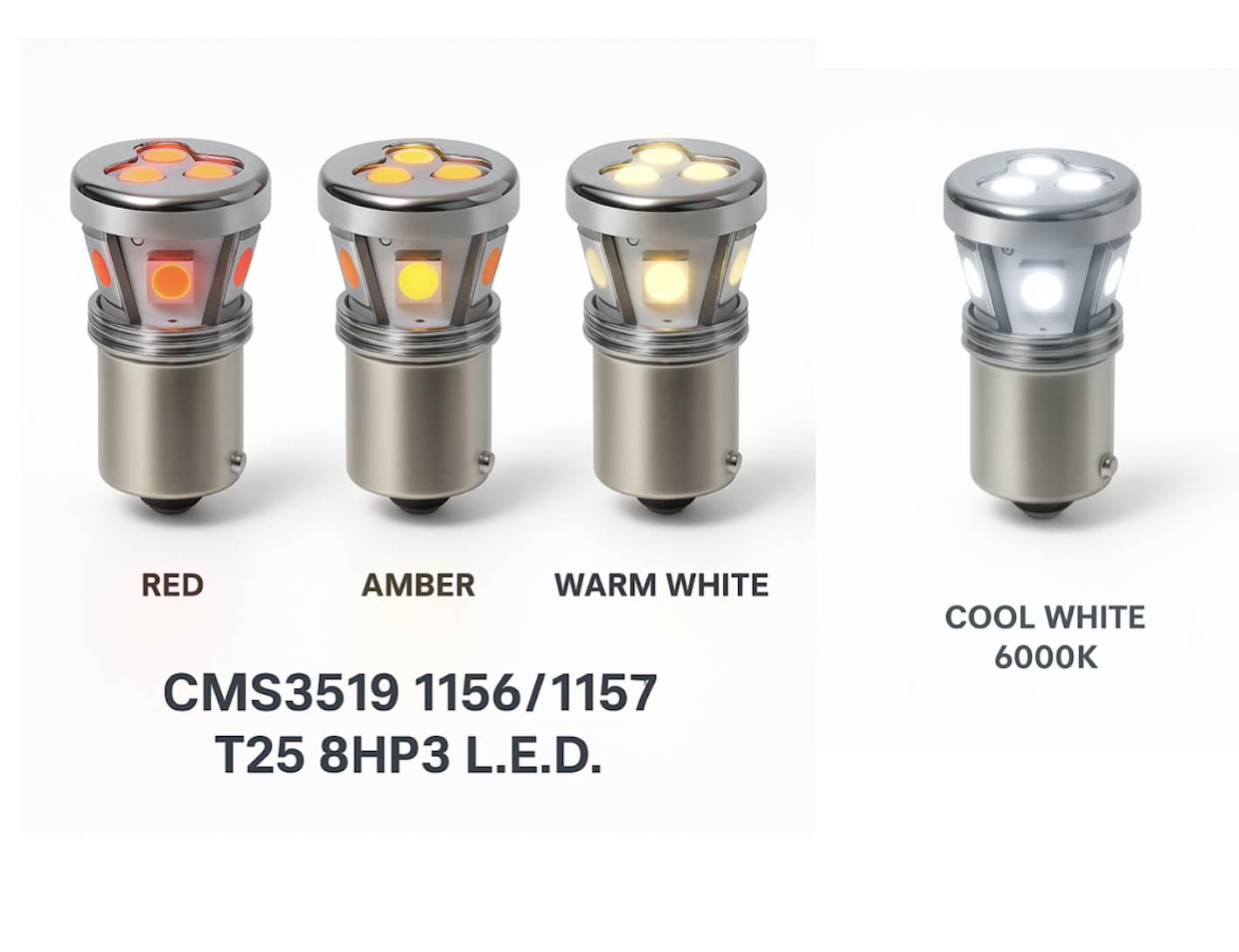

CMS3519 1156/1157 T25 8HP3 LED
CMS3519 1156/1157 T25 8HP3 LED
＊1. High Brightness & Energy Efficiency
- Equipped with CMS3519 1156/1157 T25 8HP3 L.E.D. in 6000K White color temperature.
- Consumes only 1.7W per bulb while providing strong illumination.
- Delivers up to 200LM of luminous flux for enhanced visibility.
＊2. Wide Compatibility & Easy Installation
- Supports 10–30V AC/DC wide-voltage input for versatile applications.
- Non-polarity design, allowing plug-and-play installation without modification.
＊3. Ba15S / Bay15D Socket & Versatile Applications
- Compatible with 1156 and 1157 base sockets.
- Suitable for multiple lighting functions, including:
・Turn signal / Blinker light
・Reverse / Back-up light
・Brake / Stop / Tail light
・Side marker light
・Daytime running light (DRL)
＊4. Durable & Stable Performance
- Built with 8 pcs S.M.D.5050-0.2W L.E.D. chips for reliable brightness.
- Integrated intelligent IC driver ensures stable output, prevents overheating, and maintains consistent illumination.
＊5. Premium Build Quality
- Compact dimensions: L39mm × W25mm, suitable for various lamp housings.
- Manufactured using high-temperature solder paste and reflow welding technology to ensure durability and long service life.
＊6. Designed for 24V Truck Lighting
- L.E.D. bulbs draw significantly less power than halogen bulbs.
- For turn signal applications, a 50W 27-ohm load resistor may be required to prevent hyper-flashing or dashboard error messages.
- Note: Please verify model and socket specifications before purchasing to ensure compatibility.
