L.E.D. CMA13555-Arrow Side Marker Light
L.E.D. CMA13555-Arrow Side Marker Light

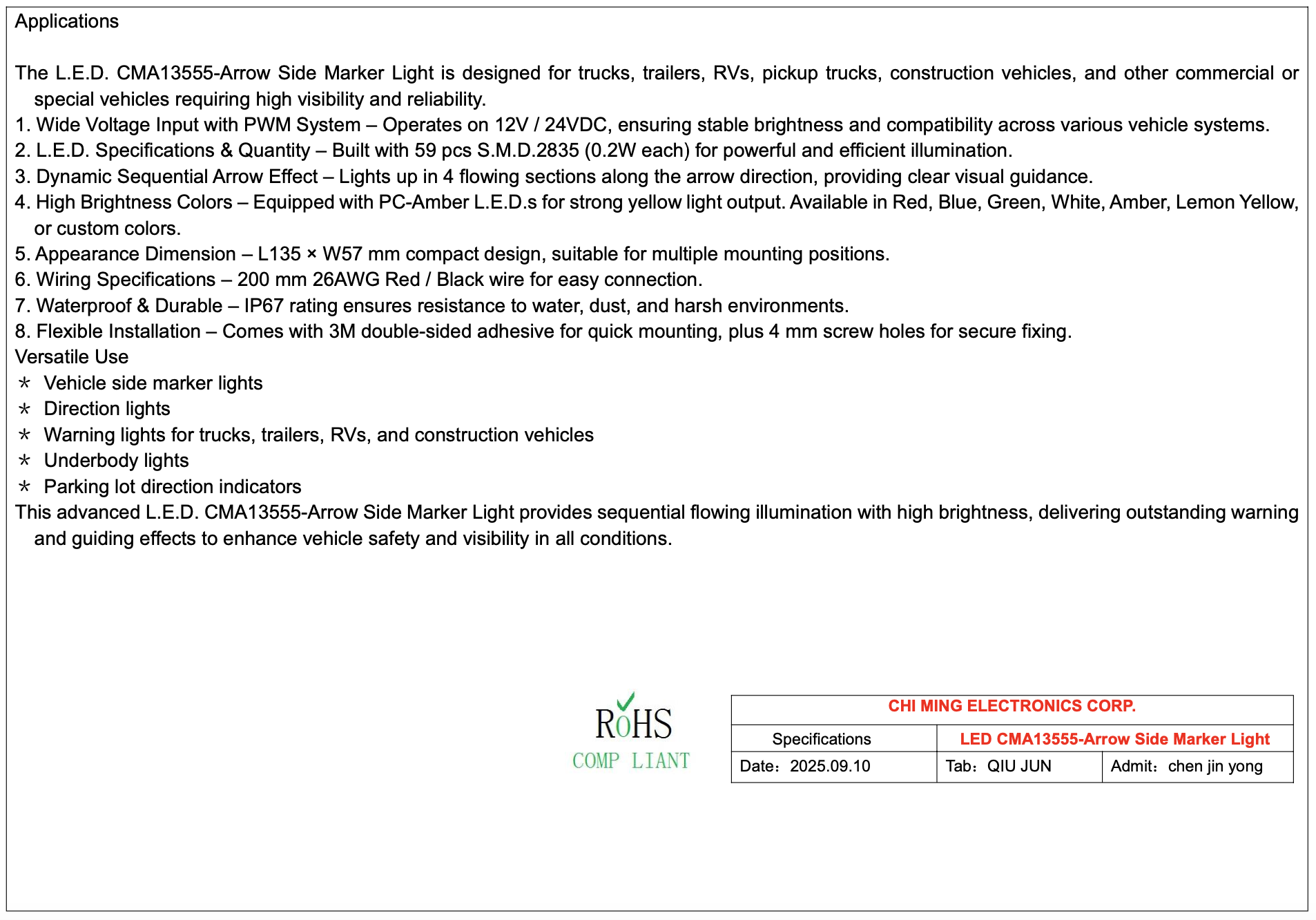

Applications
The L.E.D. CMA13555-Arrow Side Marker Light is designed for trucks, trailers, RVs, pickup trucks, construction vehicles, and other commercial or special vehicles requiring high visibility and reliability.
1. Wide Voltage Input with PWM System – Operates on 12V / 24VDC, ensuring stable brightness and compatibility across various vehicle systems.
2. L.E.D. Specifications & Quantity – Built with 59 pcs S.M.D.2835 (0.2W each) for powerful and efficient illumination.
3. Dynamic Sequential Arrow Effect – Lights up in 4 flowing sections along the arrow direction, providing clear visual guidance.

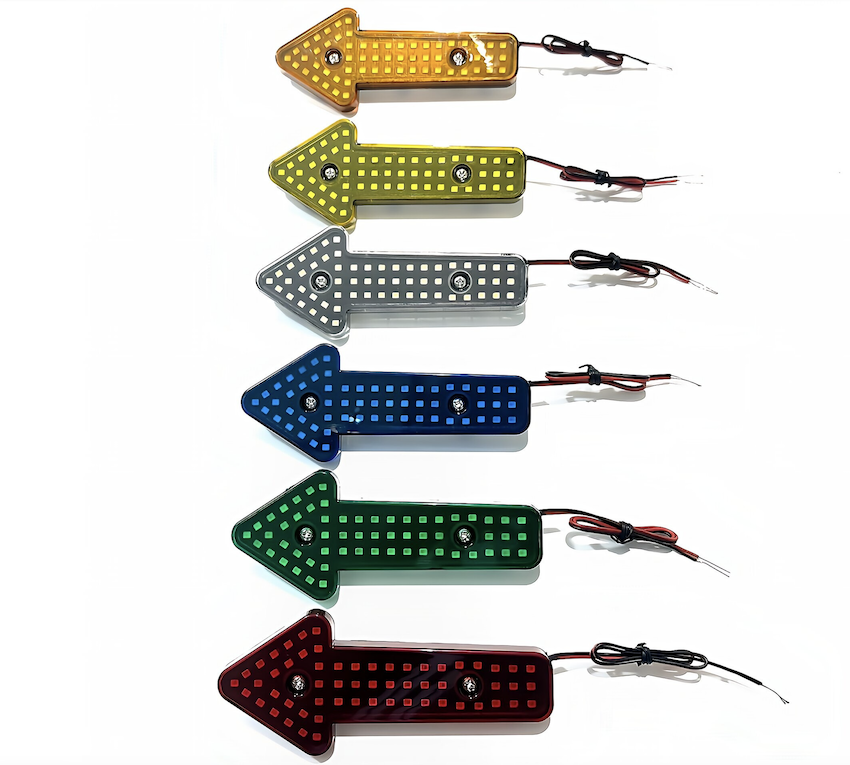

4. High Brightness Colors – Equipped with PC-Amber L.E.D.s for strong yellow light output. Available in Red, Blue, Green, White, Amber, Lemon Yellow, or custom colors.

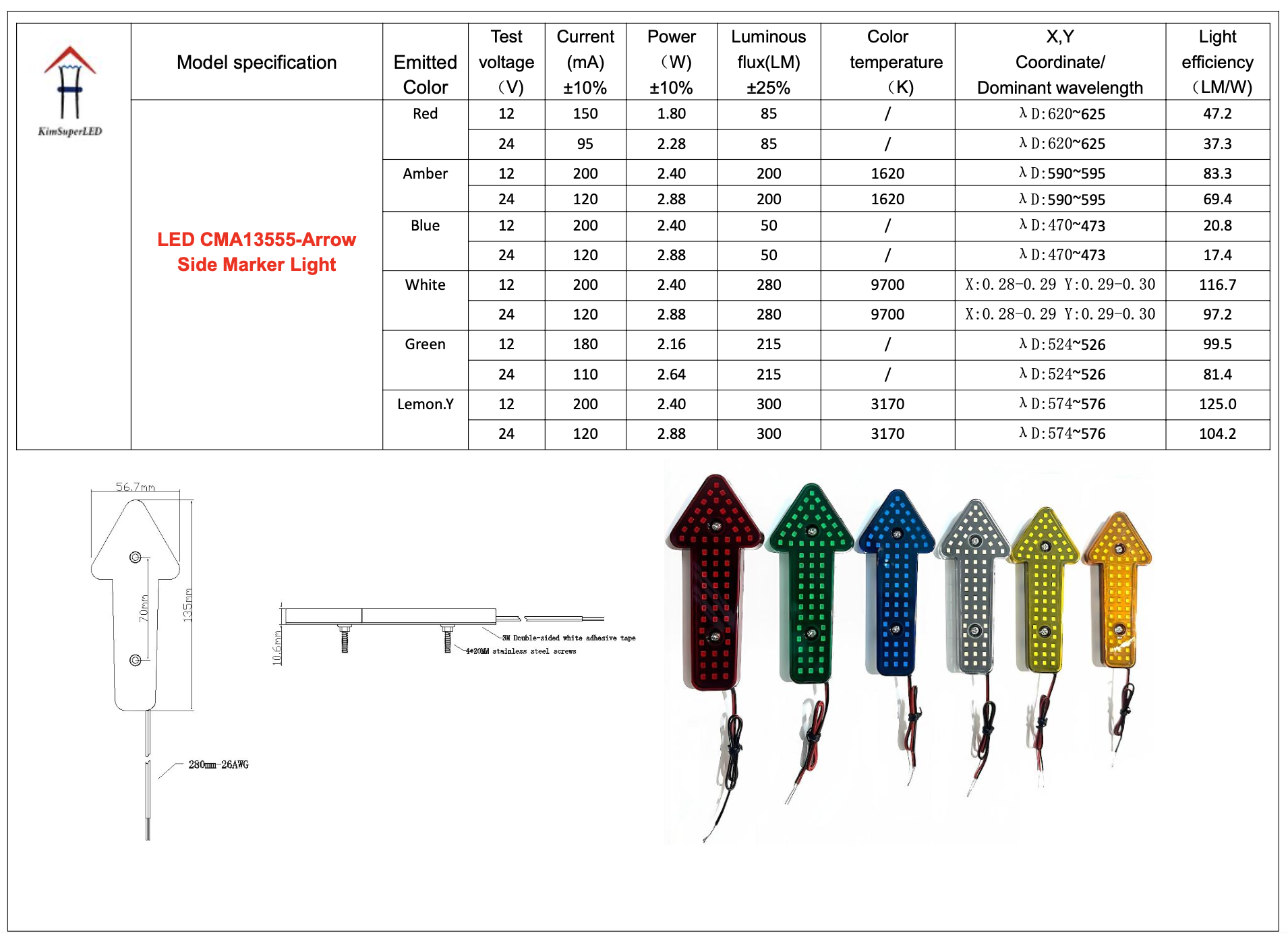

5. Appearance Dimension – L135 × W57 mm compact design, suitable for multiple mounting positions.
6. Wiring Specifications – 200 mm 26AWG Red / Black wire for easy connection.
7. Waterproof & Durable – IP67 rating ensures resistance to water, dust, and harsh environments.
8. Flexible Installation – Comes with 3M double-sided adhesive for quick mounting, plus 4 mm screw holes for secure fixing.
Versatile Use
＊ Vehicle side marker lights
＊ Direction lights
＊ Warning lights for trucks, trailers, RVs, and construction vehicles
＊ Underbody lights
＊ Parking lot direction indicators
This advanced L.E.D. CMA13555-Arrow Side Marker Light provides sequential flowing illumination with high brightness, delivering outstanding warning and guiding effects to enhance vehicle safety and visibility in all conditions.
