LED CM3717-67 BA15S T17 LED 1

                                             LED CM3717-67 BA15S T17 LED 1

LED CM3717-67/68 BA15S T17 LED 1

1. Wide Voltage Compatibility

  • Designed for DC12–30V input, suitable for a wide range of vehicle power systems.

2. Versatile Automotive Applications

  • Ideal for:
     • Indicator Lights
     • Turn Signal Lights
     • Running Lights
     • Direction Lights
     • Brake Lights
     • Position Lights

3. Power Consumption & Brightness

  • Power: 1.65W
  • Luminous Flux: 138 lumens
  • Uses LED PC-Amber material and manufacturing method, offering twice the brightness of standard models.

4. Enhanced Light Diffusion

  • Frosted lens improves light diffusion and expands the beam angle to 180°, ensuring a wider and more uniform illumination.

5. Installation Note

  • Replacing traditional bulbs with ultra-bright LEDs may cause fast flashing in turn signals. To correct this, a metal resistor is required for normal flashing behavior.
6.The LED CM3717-67/68 BA15S T17 now features PC Amber material, delivering up to 75 lumens — a 5X increase in luminous output compared to standard models. Perfect for enhanced visibility and road safety.



Notice:
Please carefully check the bulb size and user manual before purchasing. For any questions about compatibility or voltage customization, feel free to contact us for assistance.

1156 T17-BA15S-HP LED 1

1156 T17-BA15S-HP LED 1

1.Using input voltage:designed with wide voltage and can be used with inputs from 12 to 30V

2.Can be used: in vehicle ,Indicator Lights,Turn signal lights, Running lights, Direction lights, Brake lights,  position lights, etc.

3.Power: 1.65W

4.Luminous flux: 138LM,Frosted cover improves light diffusion. The frosted cover can improve light diffusion and increase the luminous angle to 180 degrees.

5.LED PC-Amber manufacturing method, twice as bright as lumens.

  Note: When replacing the ultra-bright LED, the turn signal will flash quickly. You need to add a metal resistor to flash normally.

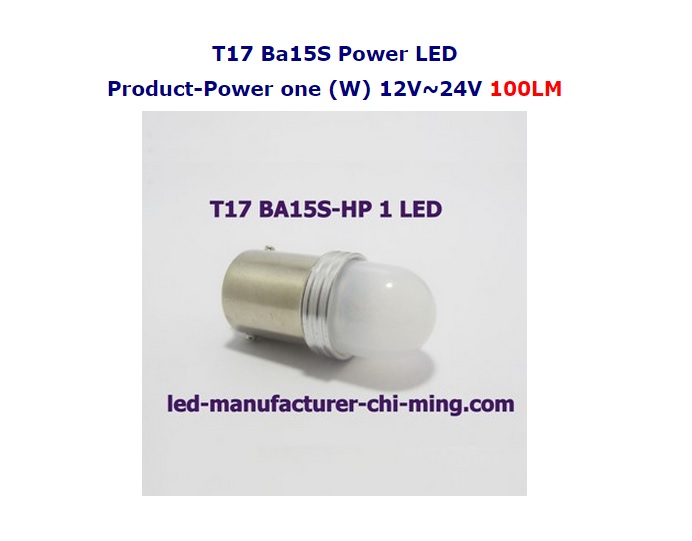

proimages/35_BA15S_T17-HP_1LED-350.jpg

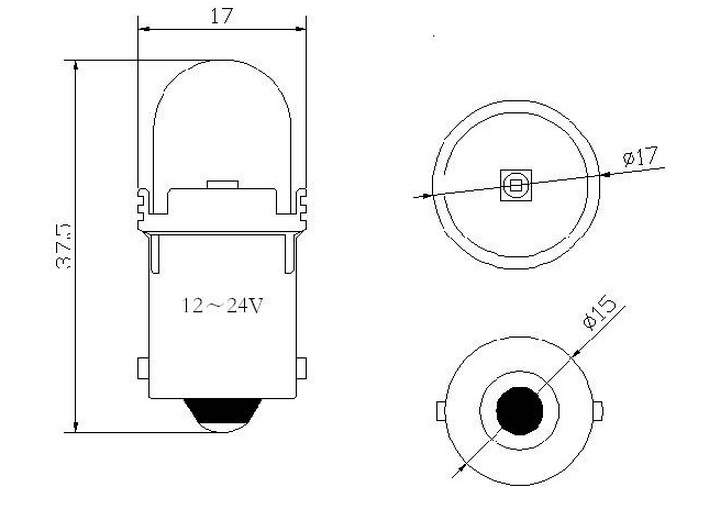

proimages/35_BA15S_T17-HP_1LED-DH.jpg

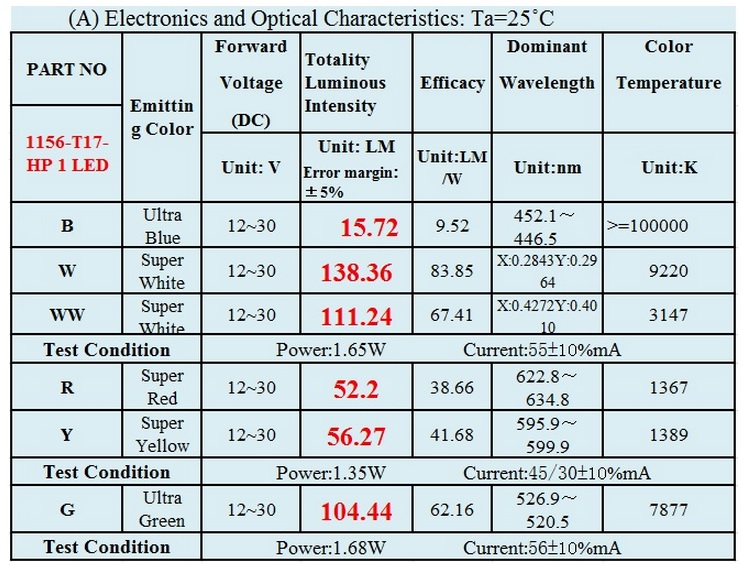

proimages/35_BA15S_T17-HP_1LED-LM.jpg

Red,yellow,blue,White,warm white,Green,UV, and various other colors

Can produce according to customers demand
