LED CM3717-67/68 BA15S T17 LED 1

                              LED CM3717-67/68 BA15S T17 LED 1
                                  Automotive Direction Light

LED CM3717-67/68 BA15S T17 LED 1

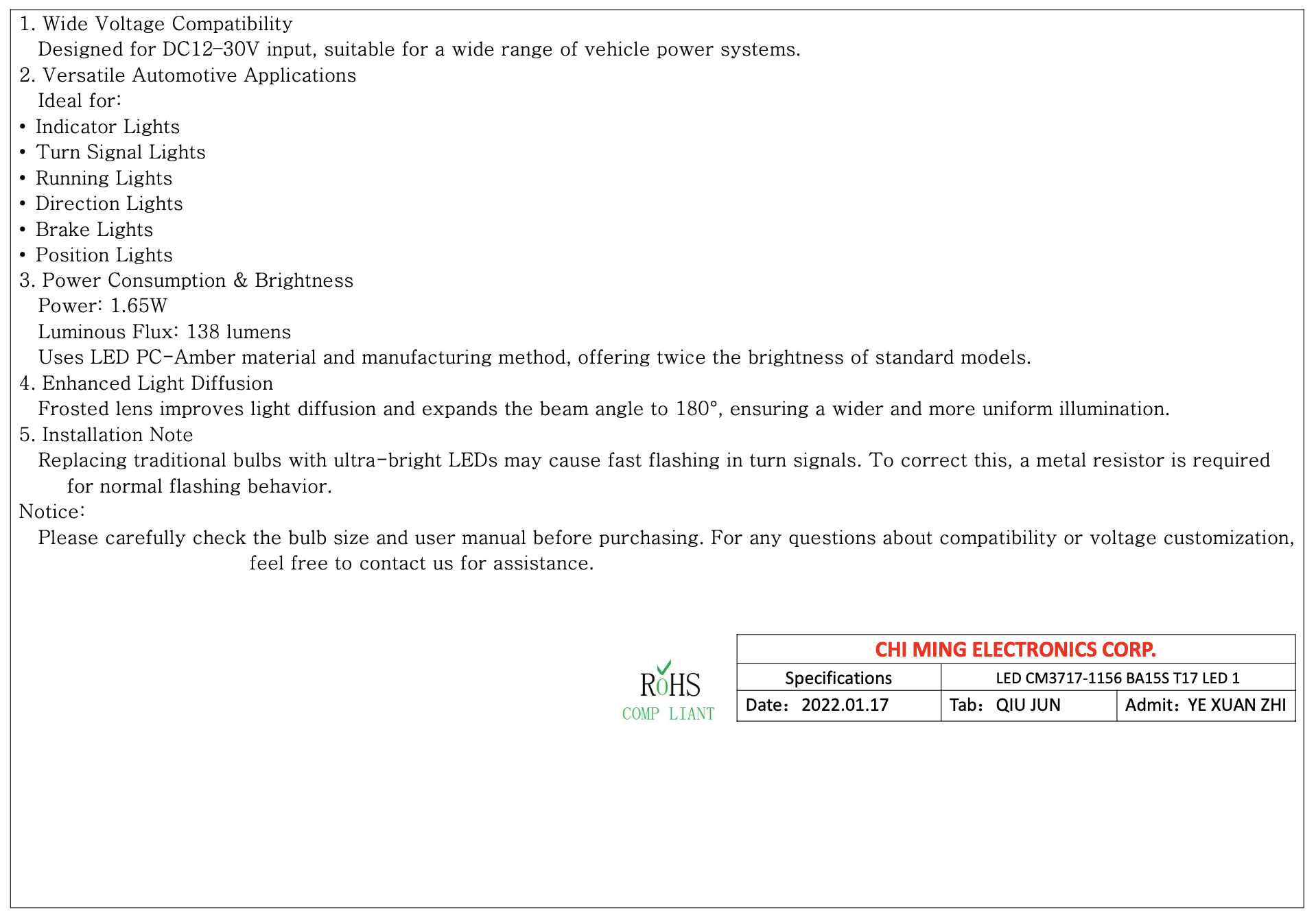

1. Wide Voltage Compatibility

  • Designed for DC12–30V input, suitable for a wide range of vehicle power systems.

2. Versatile Automotive Applications

  • Ideal for:
     • Indicator Lights
     • Turn Signal Lights
     • Running Lights
     • Direction Lights
     • Brake Lights
     • Position Lights

3. Power Consumption & Brightness

  • Power: 1.65W
  • Luminous Flux: 138 lumens
  • Uses LED PC-Amber material and manufacturing method, offering twice the brightness of standard models.

4. Enhanced Light Diffusion

  • Frosted lens improves light diffusion and expands the beam angle to 180°, ensuring a wider and more uniform illumination.

5. Installation Note

  • Replacing traditional bulbs with ultra-bright LEDs may cause fast flashing in turn signals. To correct this, a metal resistor is required for normal flashing behavior.

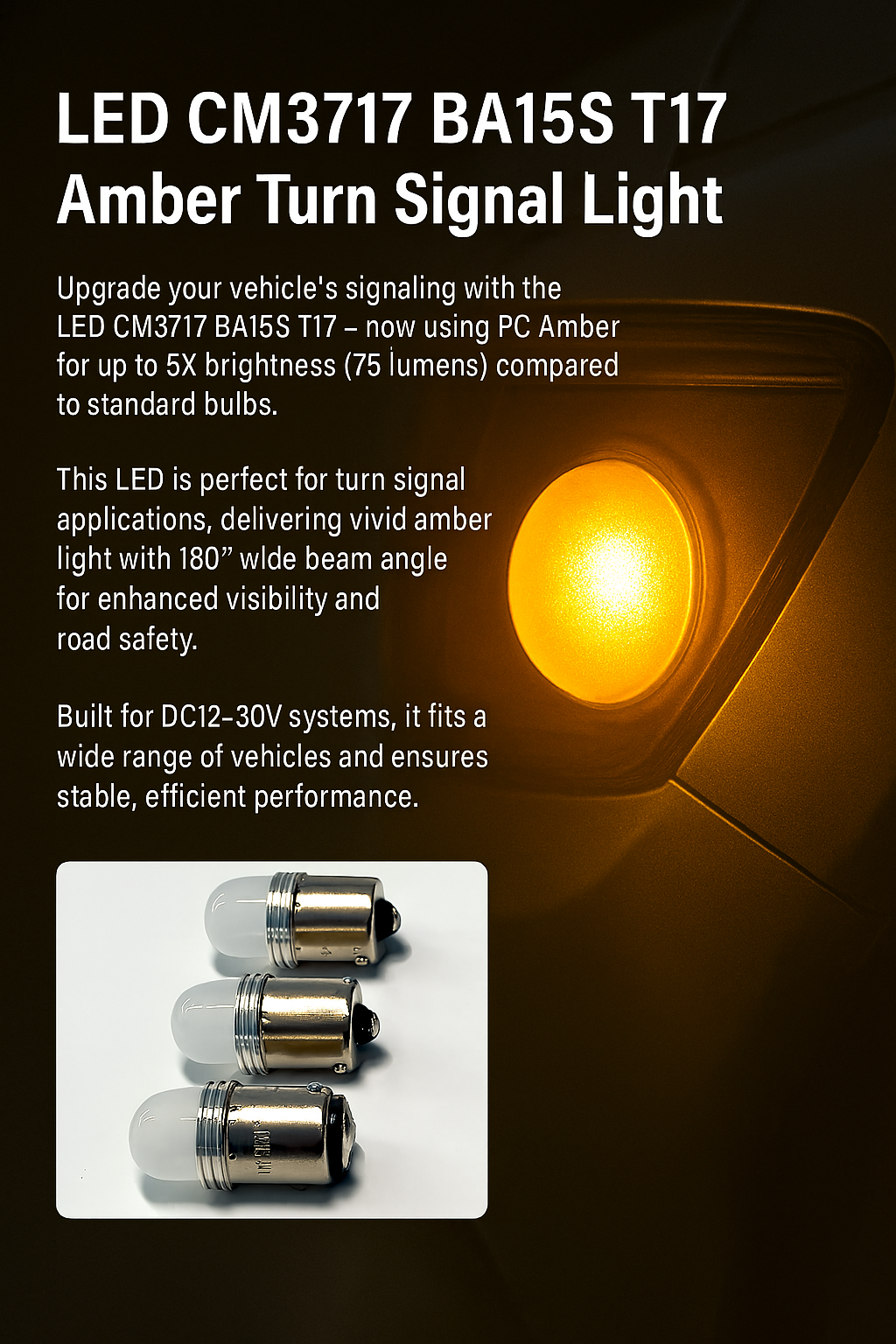

6.The LED CM3717-67/68 BA15S T17 now features PC Amber material, delivering up to 75 lumens — a 5X increase in luminous output compared to standard models. Perfect for enhanced visibility and road safety.

Notice:
Please carefully check the bulb size and user manual before purchasing. For any questions about compatibility or voltage customization, feel free to contact us for assistance.
