T10 wedge-24SMD LED(3014)
2019-10-31
(A) Electronics and Optical Characteristics: Ta=25˚C
| PART NO | Emitting Color | Forward Voltage (DC) | TotalityLuminous Intensity | Efficacy | Dominant Wavelength | Color Temperature |
| T10-24SMD-30VAC | ||||||
| Unit: V | Unit: LM Error margin:±5% | Unit:LM/W | Unit:nm | Unit:K | ||

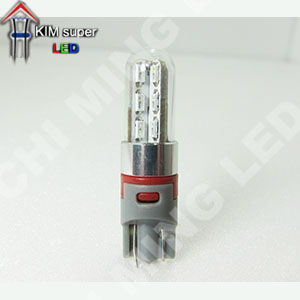

| R | Super Red | 30 | 35.9 | 34.19 | 622.5～632.6 | 1363 |

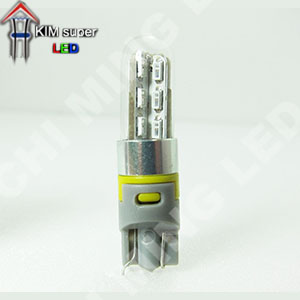

| Y | Super Yellow | 30 | 28.15 | 26.80 | 590.3～593.7 | 1699 |
| Test Condition | Power:1.05W Current:35±10%mA | |||||
| G | Ultra Green | 30 | 92.43 | 70.02 | 524.2～518.6 | 8128 |

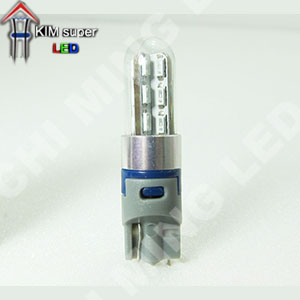

| B | Ultra Blue | 30 | 26.93 | 20.40 | 463.8～459.6 | >=100000 |

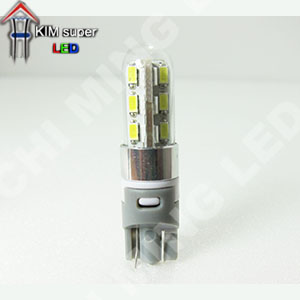

| W | Super White | 30 | 116.86 | 88.53 | X:0.2696Y:0.2540 | 16481 |
| WW | Super White | 30 | 126.67 | 95.96 | X:0.4072Y:0.3927 | 3475 |
| Test Condition | Power:1.32W Current:44±10%mA | |||||
