3156 3157 TH3 9LED
2019-10-31
3156 3157 TH3 9LED
(A) Electronics and Optical Characteristics: Ta=25˚C
| PART NO | Emitting Color | Forward Voltage (DC) | TotalityLuminous Intensity |
Efficacy | Dominant Wavelength | Color Temperature |
| 3156-S25-9TH3 -10-30VAC | ||||||
| Unit: V | Unit: LM Error margin:±5% | Unit:LM/W | Unit:nm | Unit:K | ||

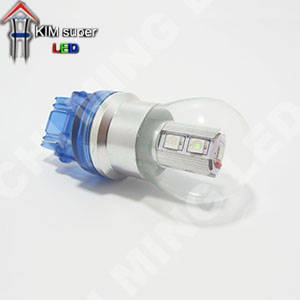

| B | Ultra Blue | 30 | 60.05 | 15.16 | 452.9～447.6 | >=100000 |

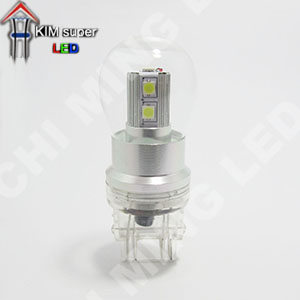

| W | Super White | 30 | 472.57 | 119.33 | X:0.2850Y:0.2958 | 9180 |
| Test Condition | Power:3.96W Current:132±10%mA | |||||
